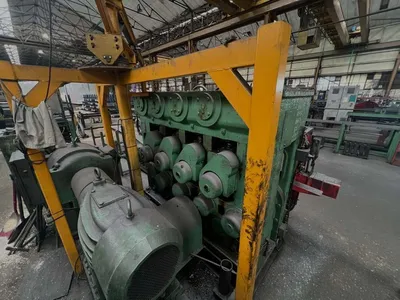

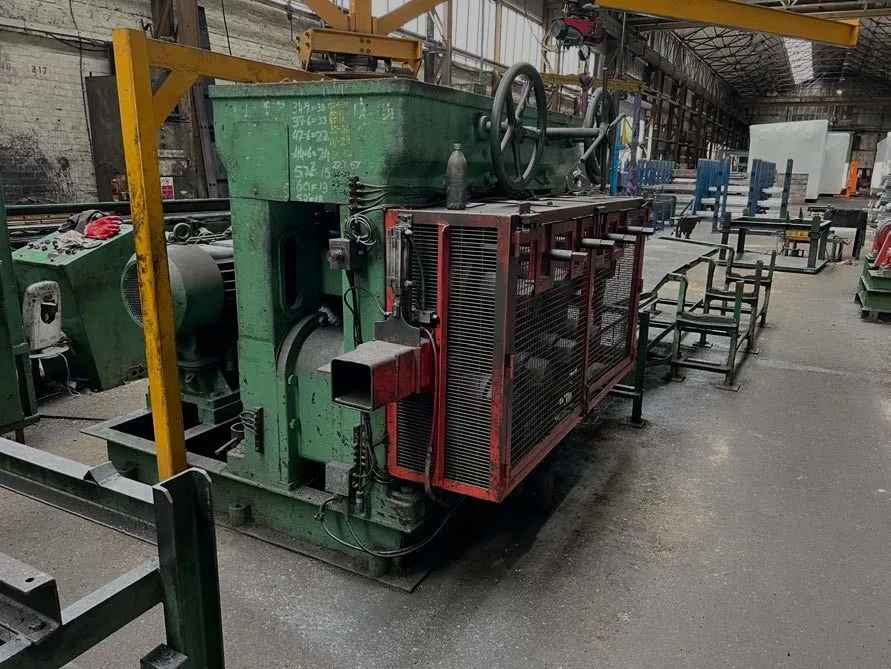

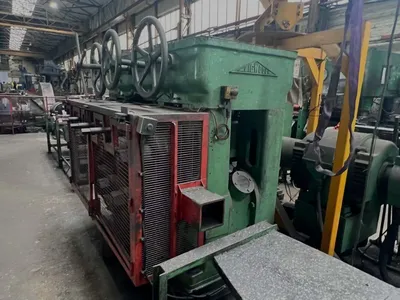

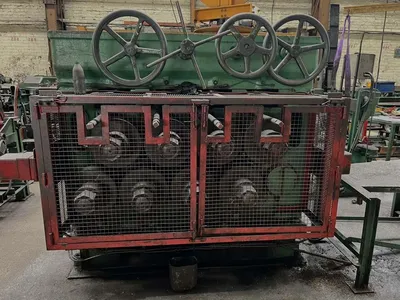

USED BIGWOOD RSG4 8-ROLL SECTION STRAIGHTENER (14728)
Specs
BIGWOOD RSG4 8-ROLL SECTION STRAIGHTENER
Stock: 14728
TECHNICAL DATA
Manufacturer: Joshua Bigwood Ltd, England
Year of Manufacture: 1968
Model: RSG4
Max. Capacity
Rounds: Ø70mm
Hexagons: 70mm
Squares: 65mm
Flats: 95 x 25mm – 100 x 20mm
Roll Dimensions
Diameter: Ø335mm
Width: 130mm
Horizontal Roll Spacing: 355mm
Vertical Roll Spacing: 265 – 385mm
Drives Power: 50 HP
Speed: 1000/950 RPM
Voltage400/440 V
Current: 68 Amps
Frequency: 50 Hz
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS SUBJECT TO VERIFICATION**
