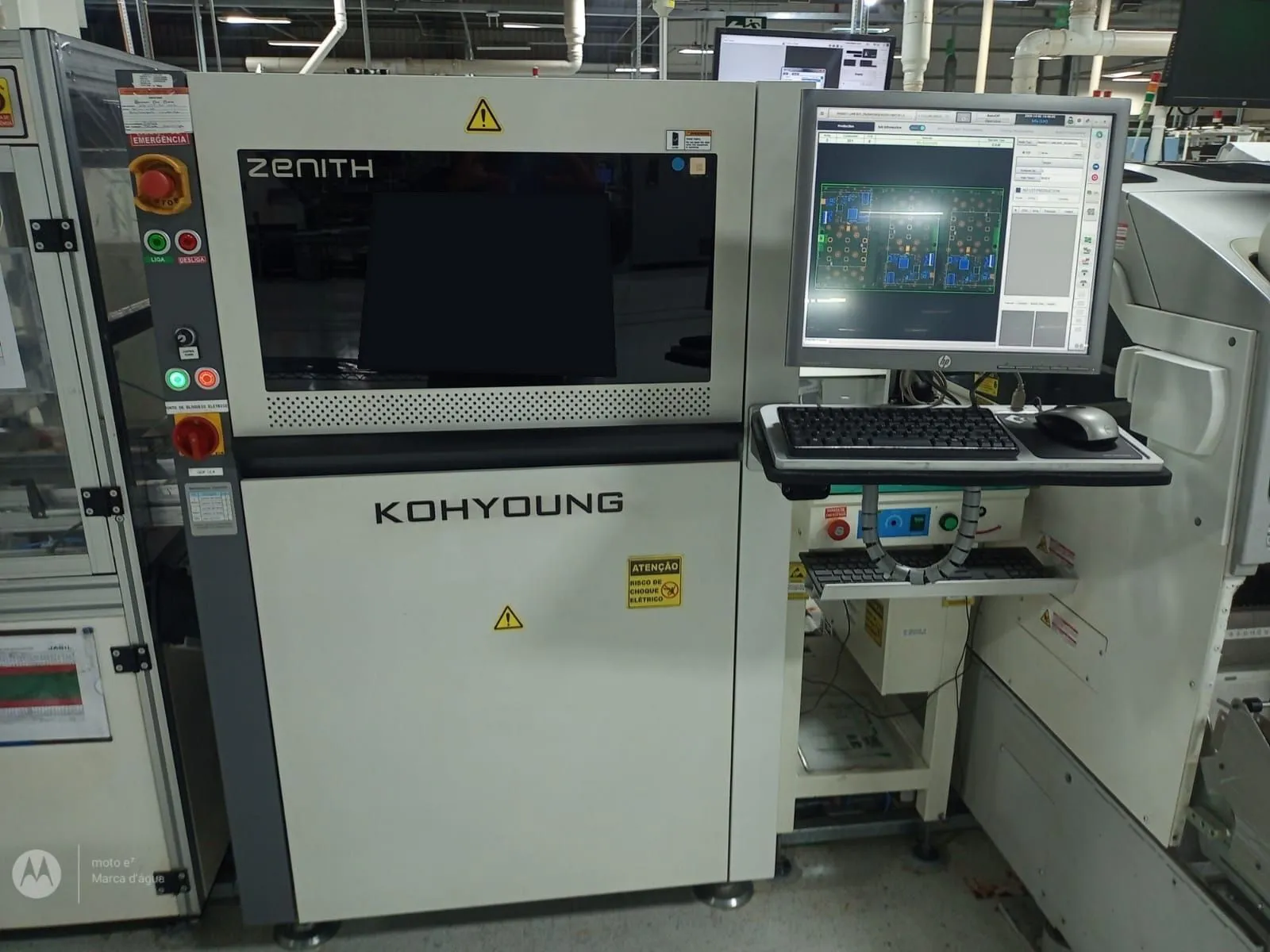

USED 2019 KOH YOUNG ZENITH ADVANCED 3D INSPECTION MACHINE

Koh Young Zenith Advanced 3D AOI Inspection System (2019)

Manufacturer: Koh Young Technology
Model: Zenith
Trade Name: Advanced Zenith
Equipment Type: 3D Automated Optical Inspection (AOI) System
Year of Manufacture: 2019
Condition: Used

Machine Specifications:

Voltage: 220V AC, Single Phase
Frequency: 50/60 Hz
Rated Current: 5A
Maximum Current: 10A
Rated Power: 2.2 kW
Compressed Air Pressure: 0.5–0.8 MPa
Machine Dimensions: 1,000 × 1,265 × 1,627 mm
Machine Weight: 600 kg
IP Rating: IP2X

Inspection Computer Configuration:

Operating System: Windows 7 Ultimate SP1, 64-bit
Processor: Intel Xeon E5-2687W v4 @ 3.00 GHz (2 Processors)
Installed RAM: 64 GB

AOI Software Configuration:

Koh Young AOI GUI Version: 2.7.5.0_H02
Vision Software: 1.0.0.1.2.7.5.0_H02
KY-CAL: 1.1.3.0
MCS: 800.00.14
ePM-AOI: Error 2 (Version Not Reported)
KSMART: 2.2.0.4
KAP Engine: 2.10

AOI Review Station Software:

AOIReviewStation Version: 2.6.1.0 (5867M)
