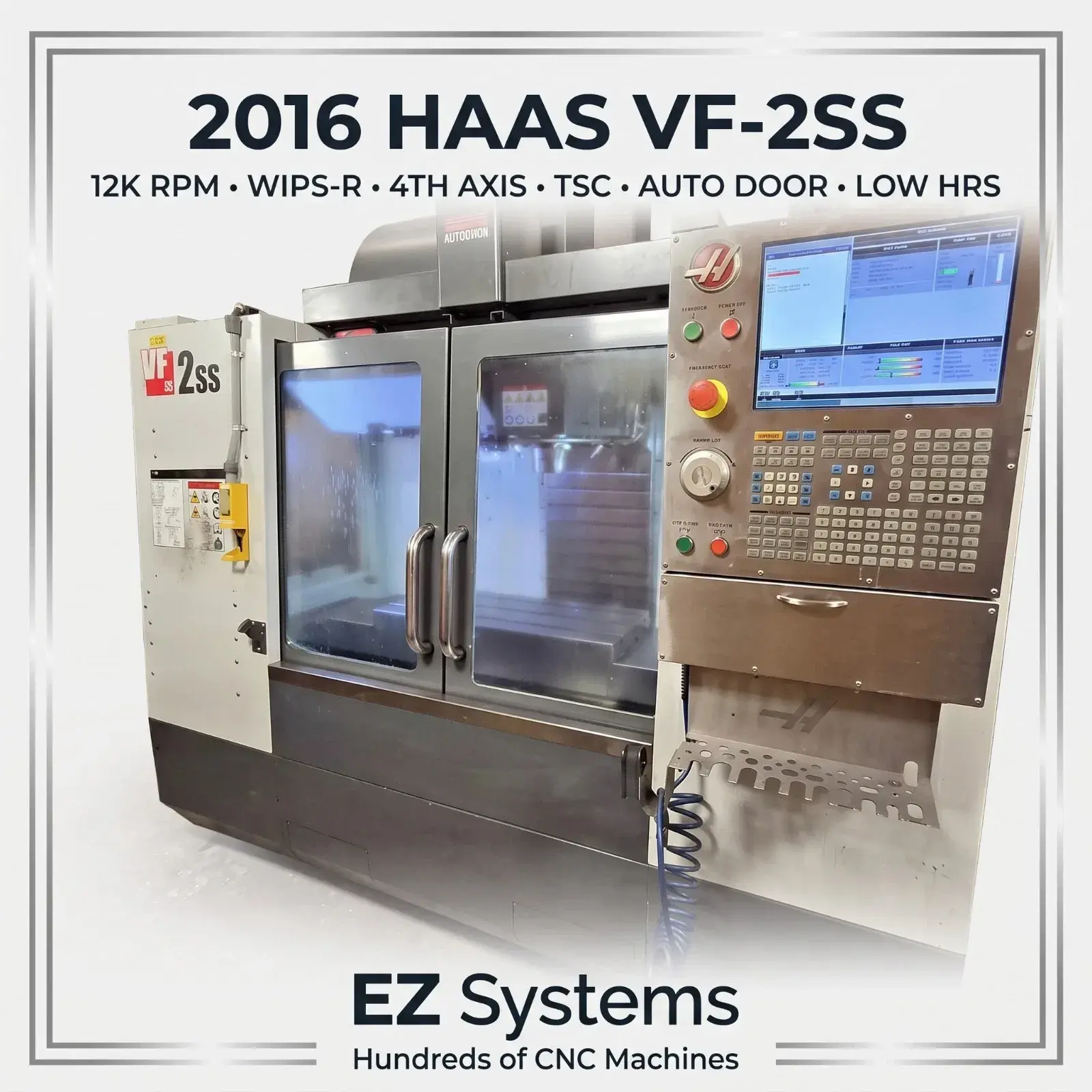

USED 2016 HAAS VF-2SS

2016 Haas VF-2SS Super Speed CNC VMC, 12,000 RPM, TSC, WIPS-R, 4th Axis, 2,216 Cut Hours, FOB Prescott Valley, AZ
Terms & Payment

Please wait for your shipping quote and invoice before sending payment. Buyer is responsible for all rigging and shipping costs. We have riggers and shipping companies we can recommend. Payment is due within 2-3 days of order date via wire transfer, cashier's check or company check (in some cases) or ask about our financing or leasing options. We have been on eBay since 2004 with 100% positive feedback.

Title: 2016 Haas VF-2SS CNC VMC | 12K RPM | WIPS-R | 4th Axis | TSC | Auto Door | Low Hours
Brand: Haas
Model: VF-2SS
Year: 2016

Key Specifications & Confirmed Meter Readings
Category Specification / Verified Detail
Make / Model Haas VF-2SS (Super Speed Vertical Machining Center)
Year of Manufacture 2016
Control Haas Next Generation Control (NGC)
Spindle Speed 12,000 RPM Inline Direct-Drive
Spindle Taper CT40 / CAT 40
Spindle Motor 40 HP Vector Drive (Cabinet Drive Confirmed)
Tool Changer 24+1 Side-Mount Tool Changer (High-Speed SMTC)
Travels (X / Y / Z) 30" × 16" × 20" (762 mm × 406 mm × 508 mm)
Table Size 36" × 14" (914 mm × 356 mm)

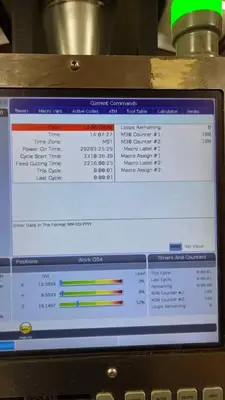

Feed Cutting Time 2,216 Hours (Screen verified: 2216:00:25)
Cycle Start Time 3,310 Hours (Screen verified: 3310:36:39)
Power-On Time 29,283 Hours (Screen verified: 29283:25:29)
Installed Software Options & Features

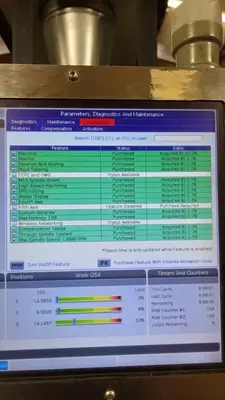

(Verified directly from the NGC Parameters/Activation screen)

High-Speed Machining (HSM)
Through-Spindle Coolant (TSC)
Fourth Axis Drive & Wiring Installed (NGC 4-axis ready + Custom Rotaries enabled)
WIPS-R (Wireless Intuitive Probing System) – Optical tool & work probe interface
Rigid Tapping (RTAP-3)
User-Definable Macros
Coordinate Rotation and Scaling
M19 Spindle Orientation
Visual Programming System (VPS Editing)
Expanded Memory: 1 GB Max Memory
8 Additional M-Codes (8M)
HaasConnect (Remote Machine Monitoring) & Media Display
High-Volt Internal Step-Down Transformer (Multi-voltage tap configuration)
Auxiliary Equipment & External Accessories Included
Servo Auto Door: Automated pneumatic/servo sliding door system.

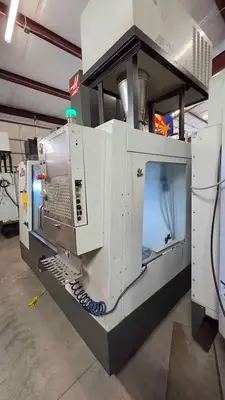

Airflow Systems Mist Collector: Top-mounted industrial mist/smoke extraction unit with ducting.

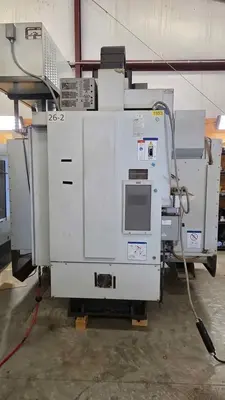

LNS Rear-Discharge Chip Conveyor: Heavy-duty external belt conveyor.
Internal Chip Auger: Pre-auger/trough system inside base enclosure.
Work Area Lighting & Enclosure Rinse / Washdown Hose.
Machine Condition & Inspection Notes

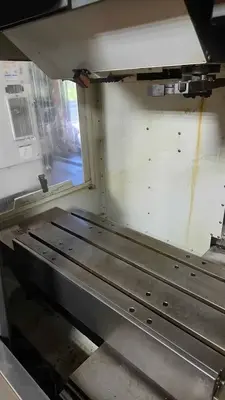

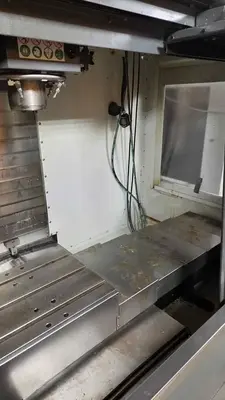

Way Covers & Table: Clean table top with standard T-slots; stainless steel telescoping way covers are intact and free of collision dings or deep scarring.

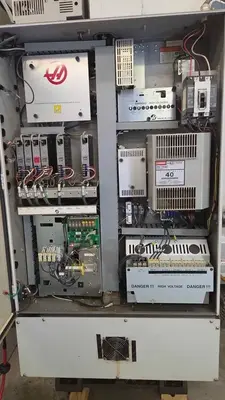

Electrical Enclosure: Clean wiring, Haas vector drive, brushless servo amplifiers, and high-voltage transformer present with zero burn or contamination marks.

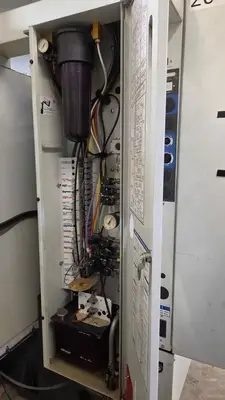

Pneumatics & Lubrication Cabinet: Clean minimal-lube setup, dual pressure regulators, transparent reservoir, and manifold lines in dry, uncracked condition.
Inspection Status: Powered up under power, fully functional, and available for immediate on-site inspection.
Description

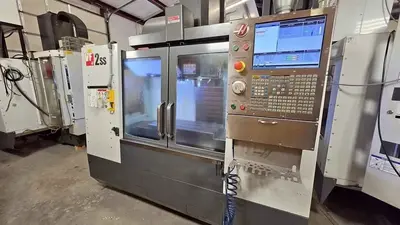

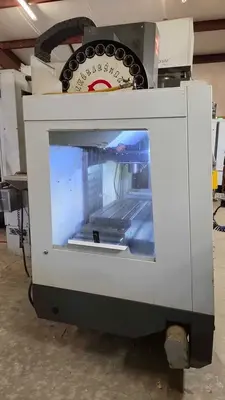

Exceptional low-hour 2016 Haas VF-2SS Super Speed Vertical Machining Center equipped with Next Generation Control and premium production options. This machine features only 2,216 verified cutting hours, a 12,000 RPM inline direct-drive spindle, 40 HP vector drive, and a rapid 24+1 side-mount tool changer. Maintained in clean shop-floor condition, it is powered up and ready for immediate on-site inspection.

Dimensions & Weight

Physical Footprint (L x W x H): 106" x 101" x 101"
Weight: Approximately 9,200 lbs
Shipping & Location Details

Location: Prescott Valley, AZ
This machine is offered FOB Prescott Valley, AZ. Buyer is responsible for all applicable freight and rigging expenses.
