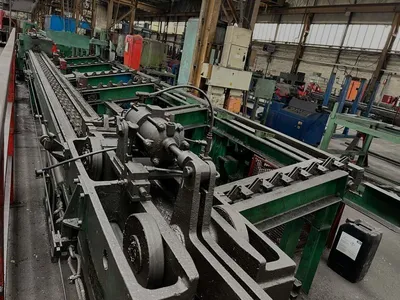

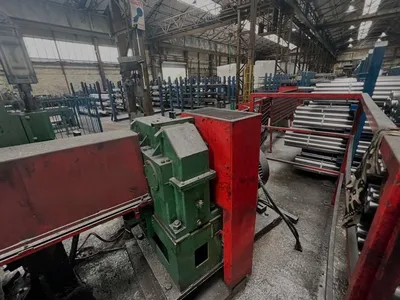

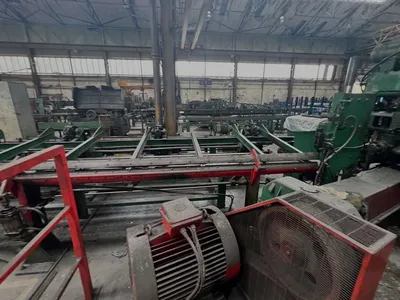

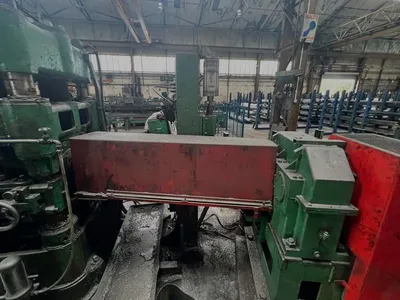

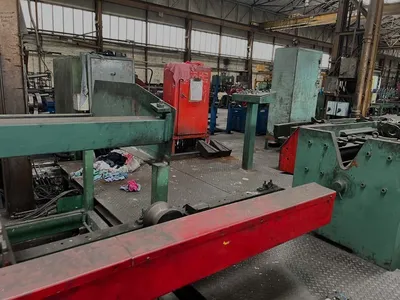

USED SAMUEL PLATT 20 TON SINGLE PULL DRAWBENCH & STRAIGHTENING LINE (14726)

PLATT/MONTBARD 20 TON SINGLE PULL DRAWBENCH & STRAIGHTENING LINE
STOCK #14726

DRAWBENCH TECHNICAL DATA

Manufacturer: Samuel Platt Ltd
Model: DS
Year of Manufacture: 1969
Drawing Force: 20 Tons
Breaking Strain: 72 Tons
No. of Bars Capacity: Single
Round Bar Working Range
Single Bar: Ø50.8mm (2”)
45kg/mm2
Some Dies for Hexagons and Squares included
Max. Bar Length: 8m
Main Motor
Power: 118 kW DC
Speed: 1650/2400 RPM
Voltage: 440
Current: 290 AMPS
Push Pointer Force 40 Ton

COMPRISES

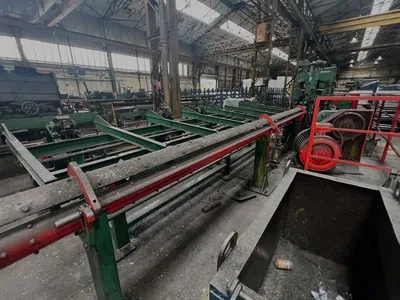

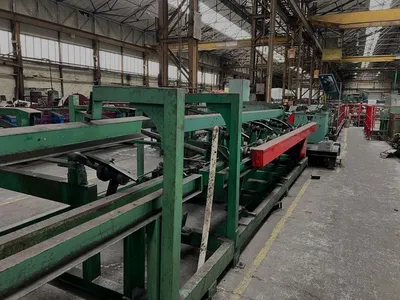

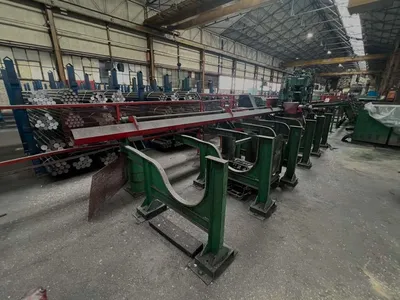

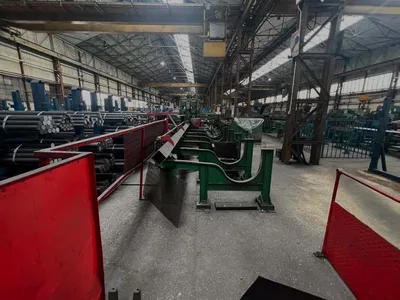

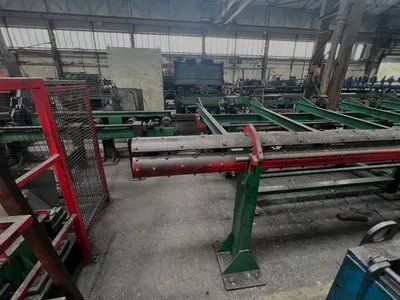

Bar Storage Rack

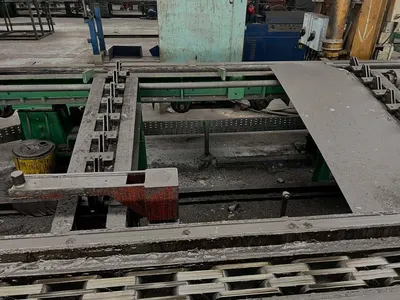

Inclined Loading Tabe

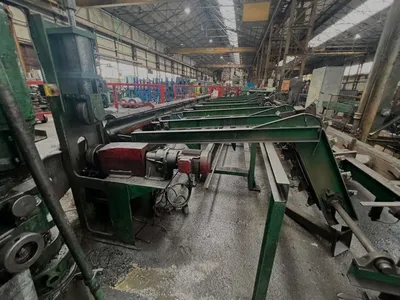

Entry Roller Table

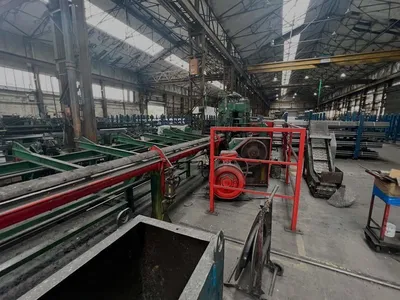

Push Pointer

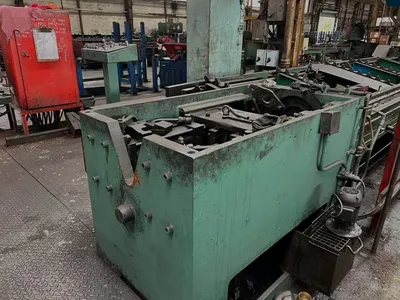

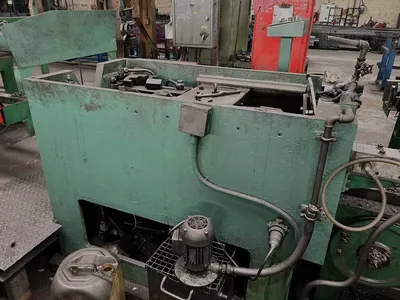

Die Head

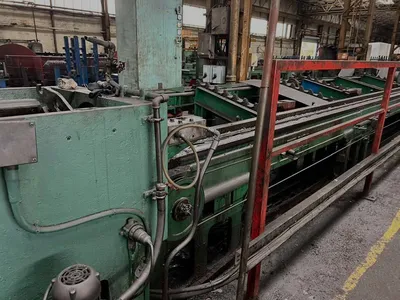

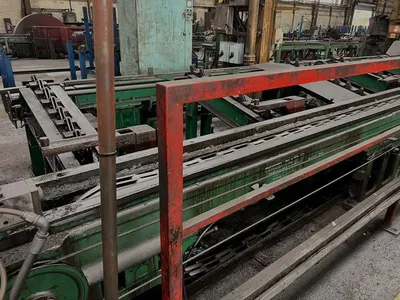

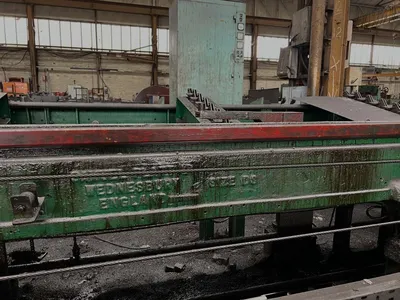

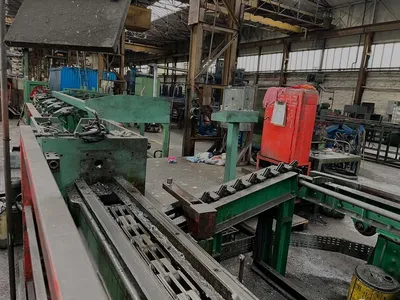

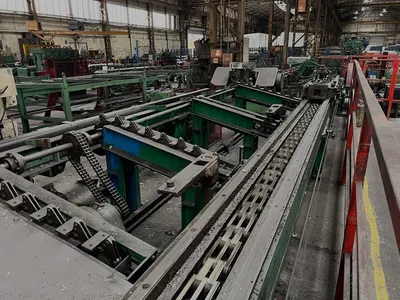

Drawing Bench

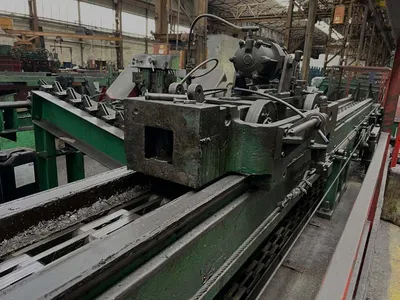

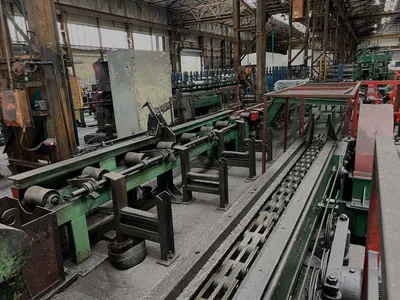

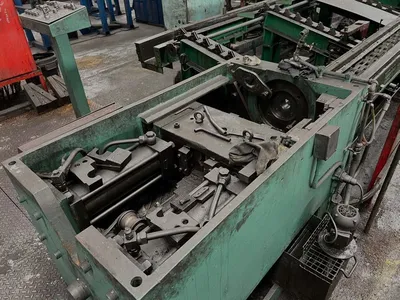

Drawing Carriage

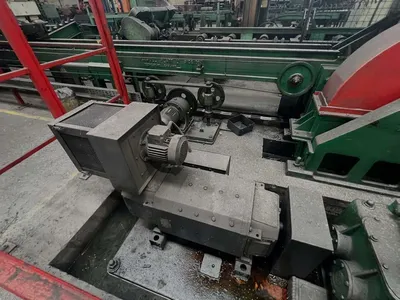

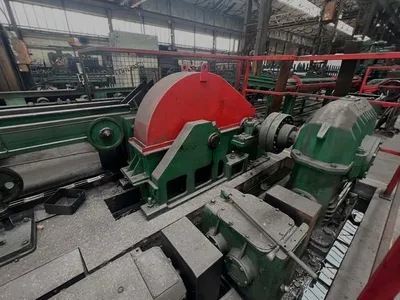

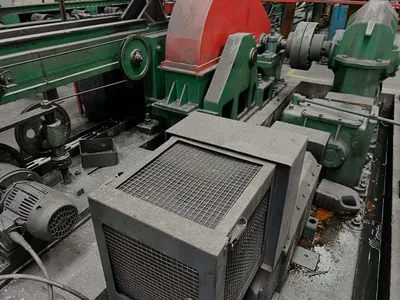

Main Drive Motor

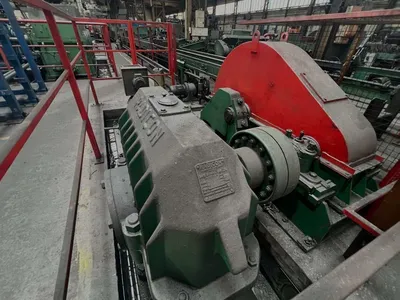

Gearbox

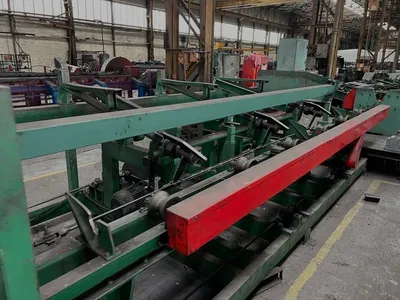

Bar Ejection to Inclined Transfer Table

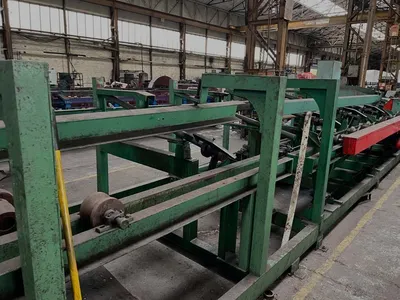

Roller Table to Bandsaw
Bandsaw
Roller Exit Table to Straightener
Lubrication System

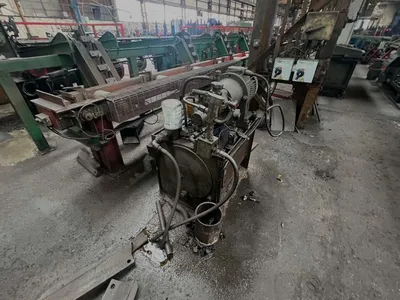

Hydraulic Power Pack
Electrical Controls
Tooling - Drawing Dies and Grippers

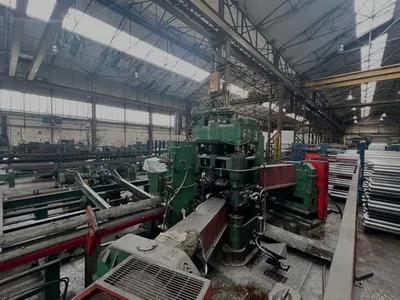

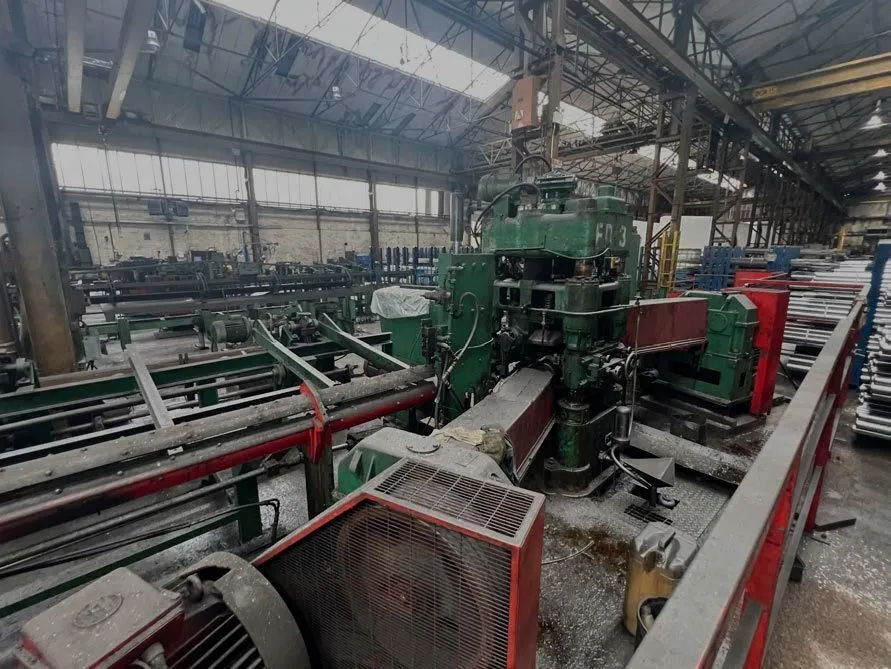

STRAIGHTENER TECHNICAL DATA
Manufacturer: Montbard, France
Model: VBM 75
Year of Manufacture: 1968
Design: 2-Roll Vertical
Diameter Range
30/40 kg/mm2 Ø16 - 75mm
60/70 kg/mm2 Ø16 - 55mm
80/90 kg/mm2 Ø16 - 50mm
Max. Bar Length: 8m
Straightening Speed: 15/30 m/min
Roll Dimensions
Diameter: 290mm
Length: 380mm
Feed Direction: Right to Left

COMPRISES
Straightener Bar Storage Rack
Entry Trough
Pneumatic Lid
Pinch Roll Unit

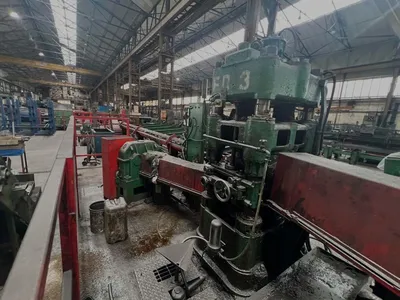

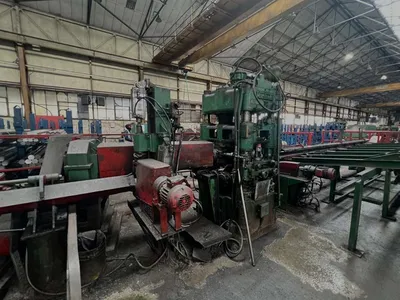

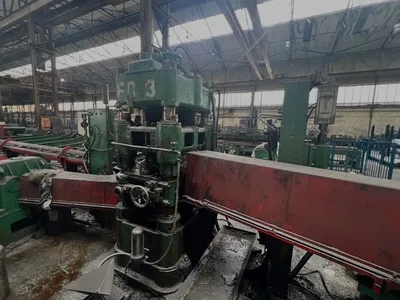

Straightener
Motorized Adjustment
Two (2) Motor/Gearboxes
Exit Pinch Roll
Exit Trough
Inclined Bar Ejection to Collection Pockets
Collection Pocket Table
Dual Pockets
Lubrication System
Hydraulic Power Pack
Electrical Controls

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS SUBJECT TO VERIFICATION**
