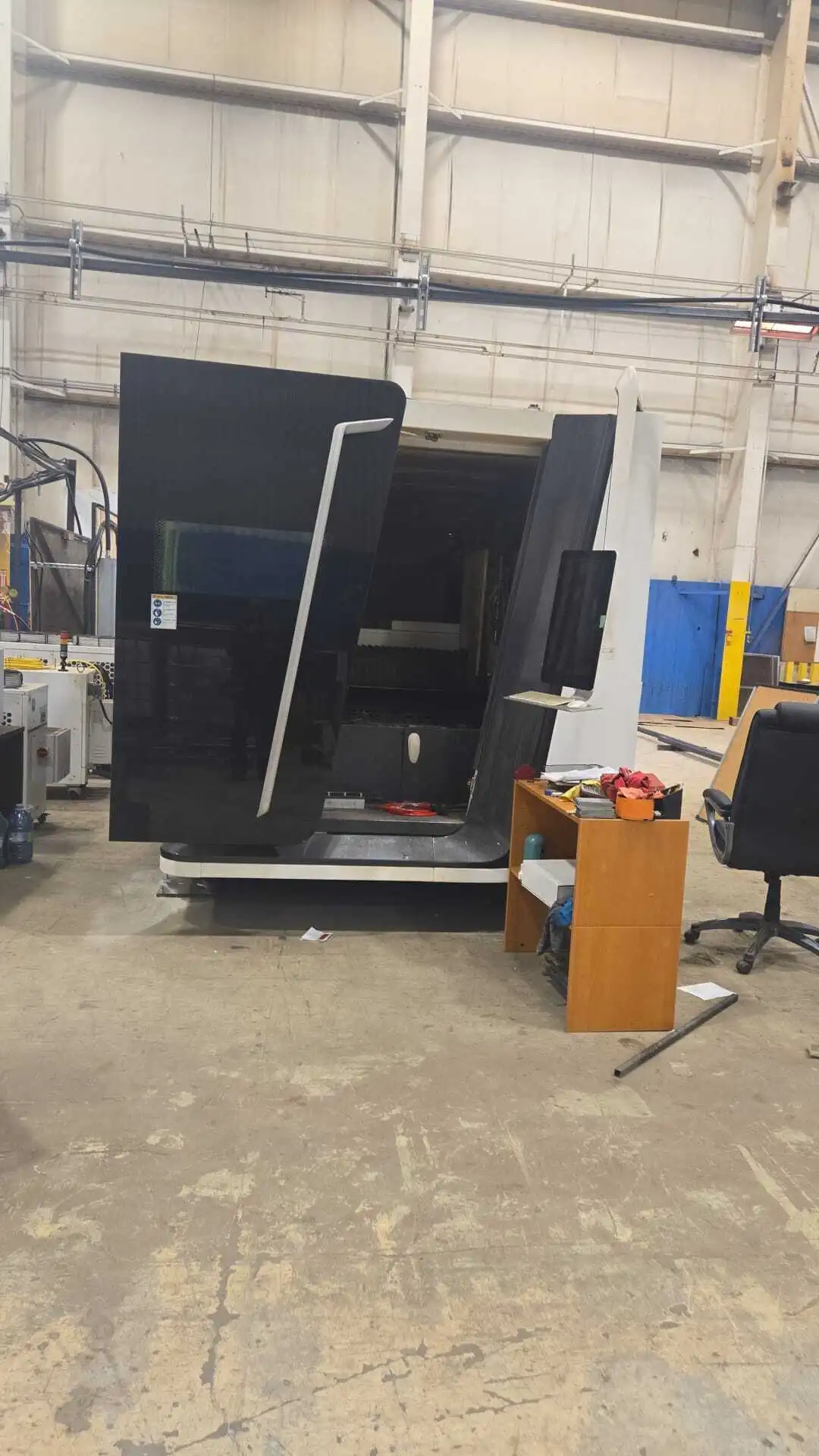

USED 2022 BODOR P3

The Bodor P3 Fiber Laser Cutting Machine is a fully enclosed, dual shuttle pallet system featuring a 10 ft × 5 ft (3048 mm × 1524 mm) working footprint. It delivers the highest dynamic motion in the P Series lineup, reaching up to 4.0G acceleration. [1, 2, 3]
Mechanical & Movement Specs
Working Area: 3048 mm × 1524 mm (120" x 60") [1, 2]
Max Linkage Speed: 200 m/min (7,874 in/min) [1, 2]
Max Linkage Acceleration: 4.0G [1]
Z-Axis Travel: 350 mm (13.8") [1, 2]
X/Y Positioning Accuracy: ±0.05 mm/m (±0.0012") [1, 2]
X/Y Repositioning Accuracy: ±0.03 mm (±0.0007") [1, 2]
Number of Shuttle Tables: 2 (Automatic pallet changer) [1, 2]
Table Max Load Capacity:
1,450 kg (3,200 lbs) for systems utilizing ≥6kW laser sources [1, 2]
Laser & Thickness Capacities
Wattage 12KW
Maximum Cutting Thickness Guidelines (Typically achieved under 22kW–30kW configurations):
Carbon Steel: Up to 45 mm
Stainless Steel: Up to 40 mm
Aluminum: Up to 30 mm
Brass / Copper: Up to 15–16 mm [1, 2]
Physical Dimensions & Weight
Footprint Dimensions: Approx. 8,840 mm × 2,240 mm × 2,520 mm (348” L × 88.1” W × 99.2” H)
Total Structural Weight: Approx. 6,500 kg to 8,300 kg (14,329 lbs to 18,298 lbs) based on options and power unit sizes. [1, 2, 3]
Core Structural & Software Engineering
Chassis Build: Carbon-fiber machine body layered with a second-generation mortise-and-tenon welded bed structure.
Gantry: Aircraft-grade tensile aluminum crossbeam which reduces weight by 31% while boosting mechanical rigidity by 21% over cast aluminum.
Ecosystem Software: BodorThinker CNC operating software integrated with BodorNest nesting software for efficient material allocation. [1, 2]
Automated Production Systems
BodorGenius Auto-Focus Laser Head: Includes active obstacle avoidance that tracks sheet warping or part-tilting in real-time to avoid collisions. [1, 2]
Intelligent Edge Finding: Camera-based visual identification completes sheet vertex and material offset localization in 1 second. [1, 2]
Nozzle Maintenance Changer: Automatic nozzle switching, physical tip calibration, and automated cleaning mechanics. [1, 2]
Remnant Layout Management: One-click layout optimization specifically engineered to generate cutting profiles over irregular remnant sheet drop waste. [1, 2]
