USED SCHUMAG KZ-RP IIB COMBINED DRAWING LINE (14724)

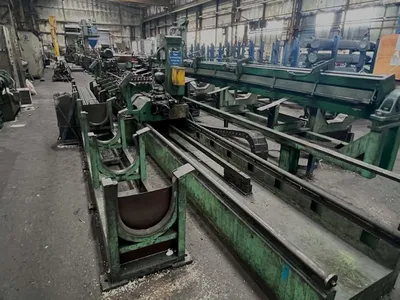

SCHUMAG KZ-RP IIB COMBINED DRAWING LINE
Stock # 14724

TECHNICAL DATA
Manufacturer Schumag AG, Aachen, Germany
Model KZ-RP IIB
Year of Manufacture 1973
Capacity
Rounds 10 mm – 32mm
Hexagons 10mm - 27mm
Squares 10mm - 24.5mm
Drawing Force 10,000 kg
Max. Drawing Speed 60 m/min
Max. Bar Length 6m

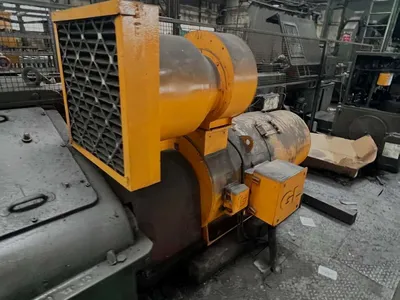

Main Motor Power
Speed Voltage
Current 15 – 150 kW
150 - 1500 RPM
55 - 400V
404 Amps

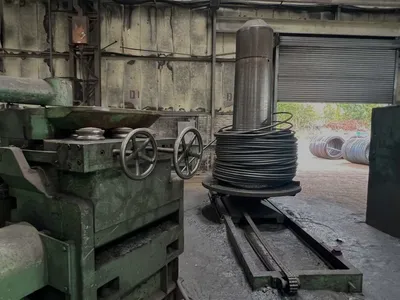

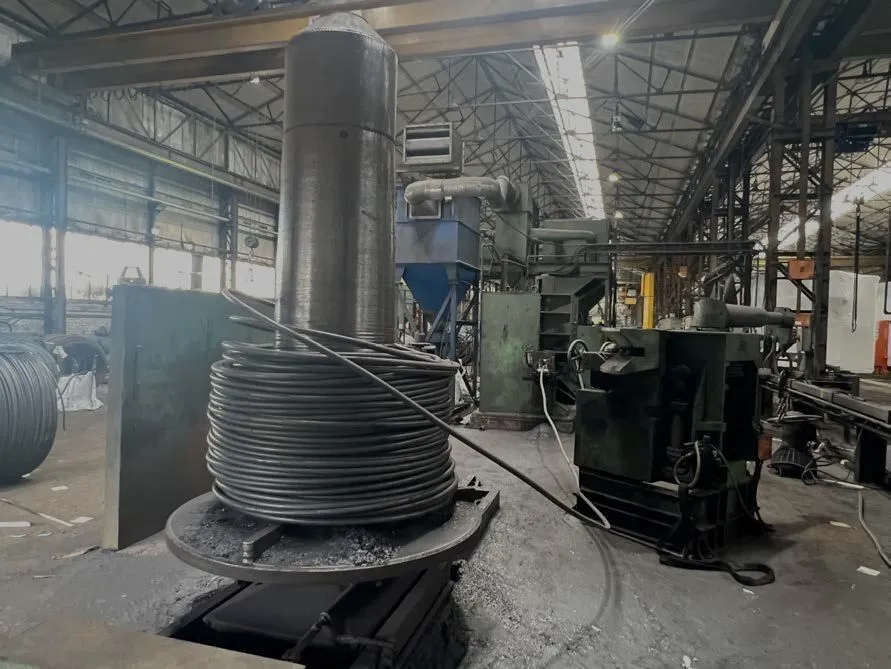

Vertical Pay-off Single Crown
RIBI Coil Opener

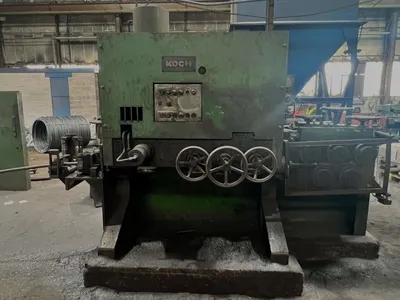

Koch Pre-Straightener Type: KRE
Built: 1978
8-Roll Inverted 5-Roll Vertical
4-Roll Horizontal Pre-Straightener Non-Driven

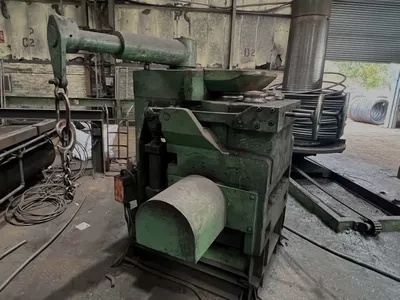

Hydraulic push-pointer Force: 20,000 kg

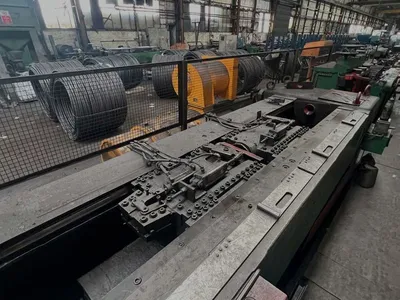

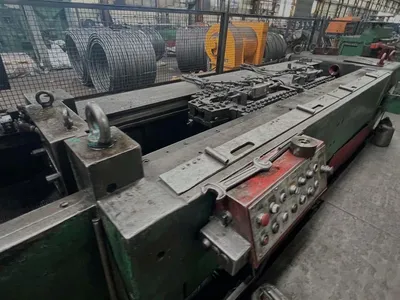

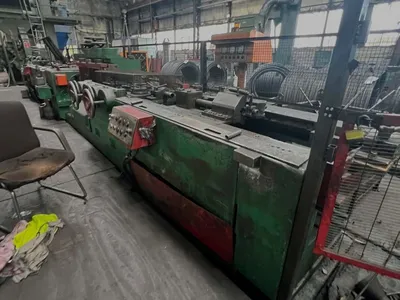

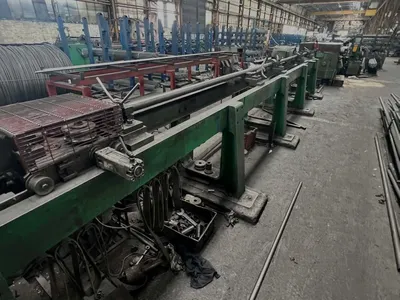

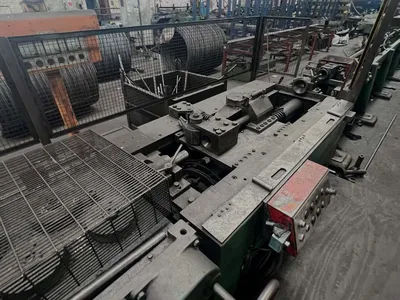

Draw-bench
Draw Force: 10,000 kg Pneumatic Gripping

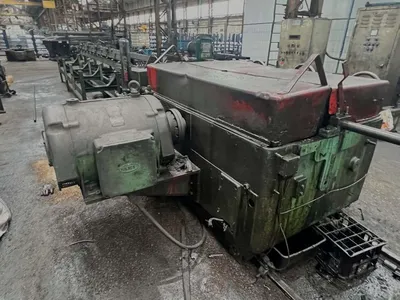

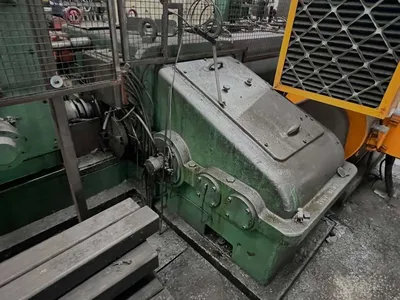

Gearbox and Motor 150 kW Motor

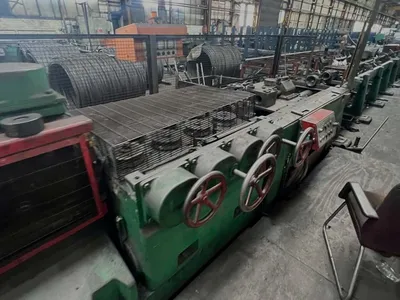

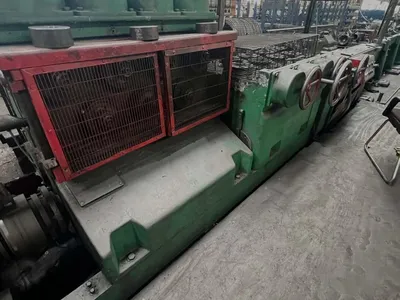

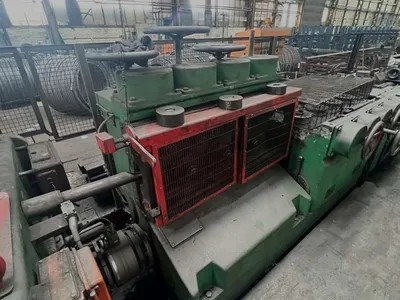

Two-Plane Straightening Section 7-Roll Vertical straightener
7-Roll Horizontal straightener Flying-shear

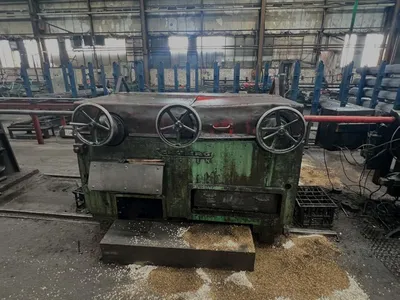

RIPO Straightening & Polishing Machine 60/45/30 HP, 734/986/1480 RPM
Guide Tube

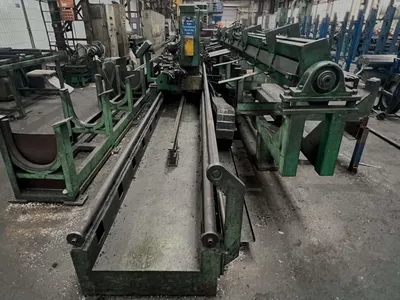

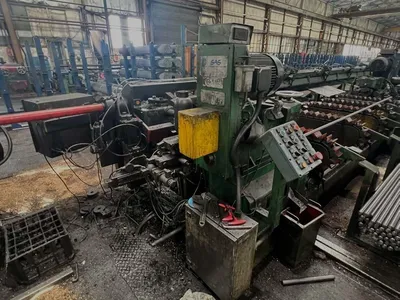

Exit Table to Chamfering Machine or Collection Cradle SAS Chamfering Machine
Double Ended Built: 1995

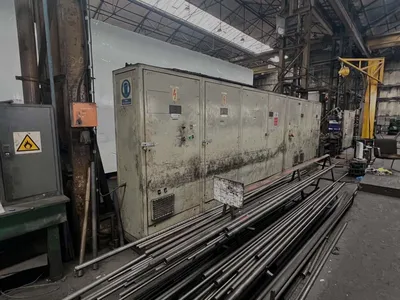

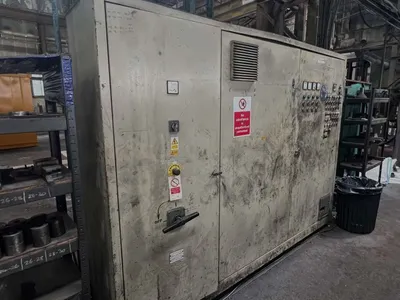

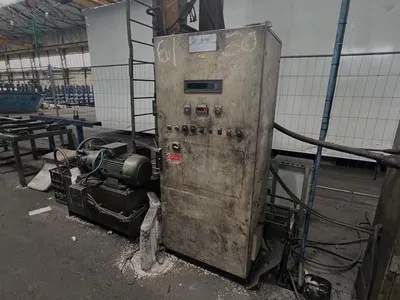

Electrical Equipment Spares & Tooling
Spares include 1 Set of Cams

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
