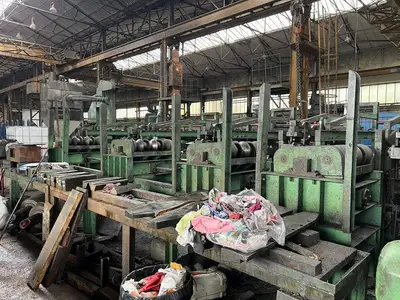

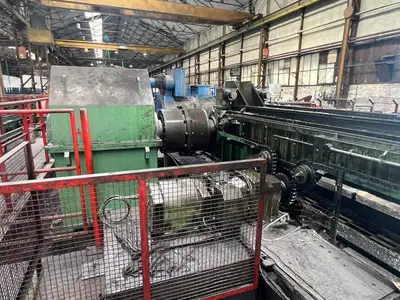

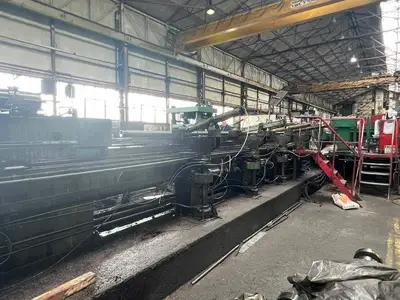

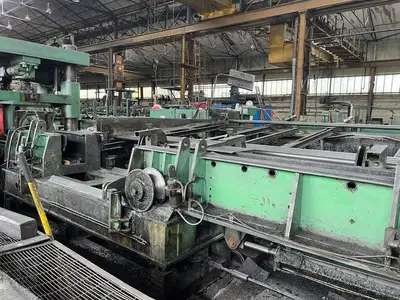

USED SAMUEL PLATT BRIGHT BAR DRAWING, STRAIGHTENING & SAWING LINE (14722)
Overview
80 TON DRAW BENCH, STRAIGHTENER AND SAW (14722)
Specs

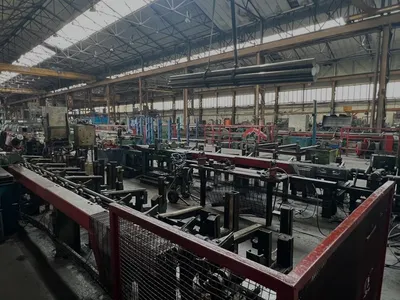

BRIGHT BAR DRAWING, STRAIGHTENING & SAWING LINE
Stock # 14722

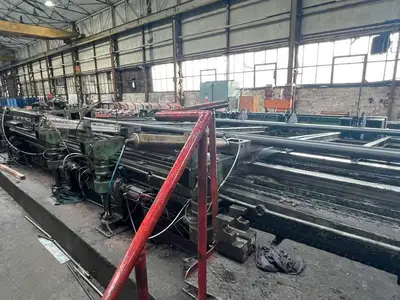

TRIPLE PULL DRAWBENCH
TECHNICAL DATA
Manufacturer: Samuel Platt Ltd
Model: A
Year of Manufacture: 1982
Drawing Force: 80 Tons
Breaking Strain: 265 Tons
No. of Bars Capacity: Single / Double / Triple
Round Bar Working Range
Single Bar: Ø127mm (5”)
Double Bar: Ø63mm (2-1/2”)
Triple Bar: Ø41mm (1-5/8”)
45kg/mm2
Some Dies for Hexagons and Squares included
Max. Bar Length: 12m (Currently being used on 9m)

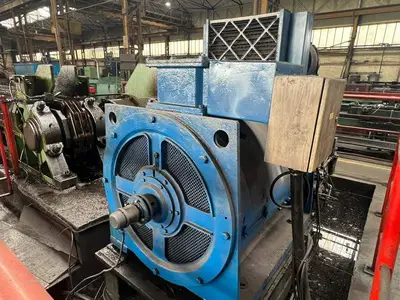

Main Motor
Power: 0/70/350/350 HP
Speed: 0/150/750/750 RPM
Voltage: 0/480V
Current: 585 Amps
Push Pointer Force: 160 Ton
COMPRISES
Entry Loading Table
Pneumatic Loading Arms
Entry Roller Conveyor
Push Pointer

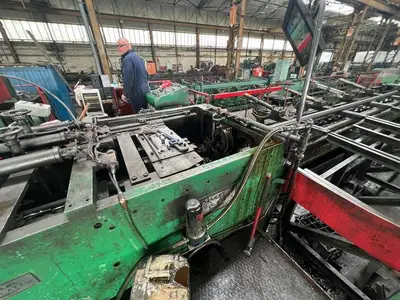

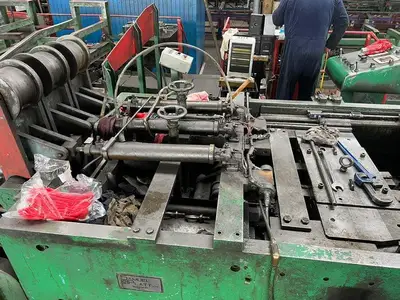

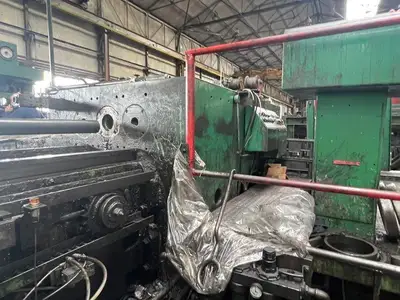

Die Head

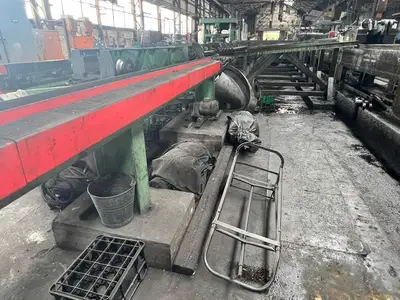

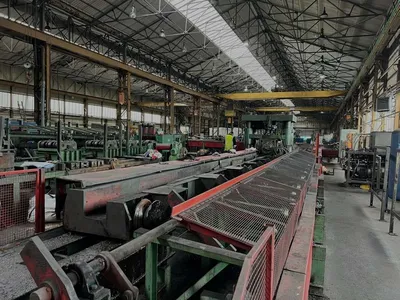

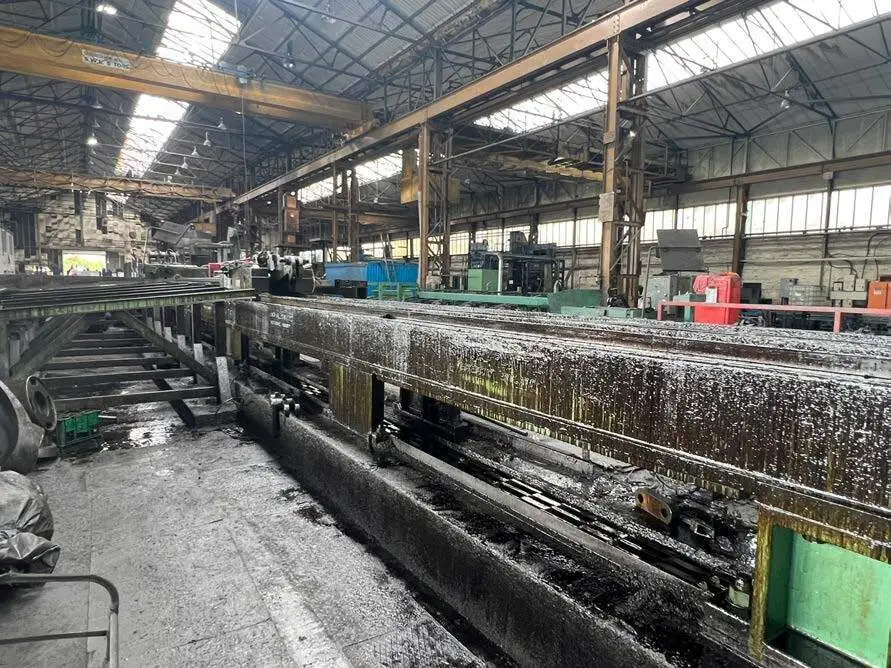

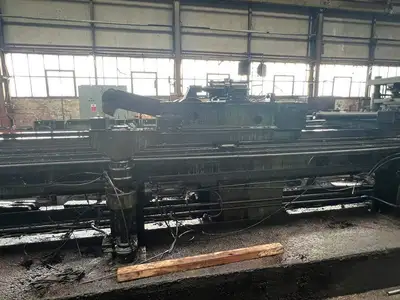

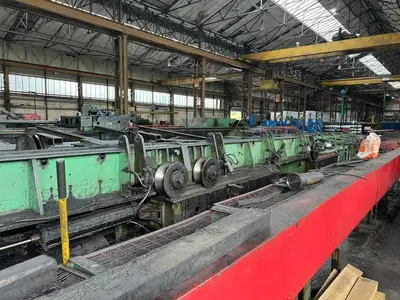

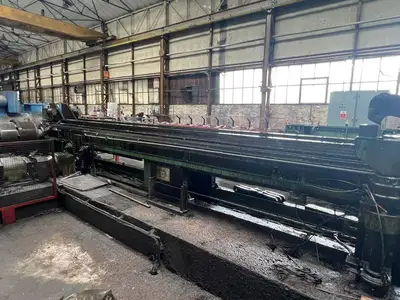

Drawing Bench
Drawing Carriage

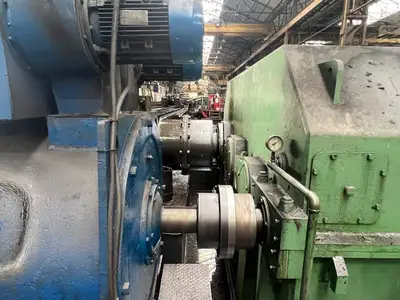

Main Drive Motor

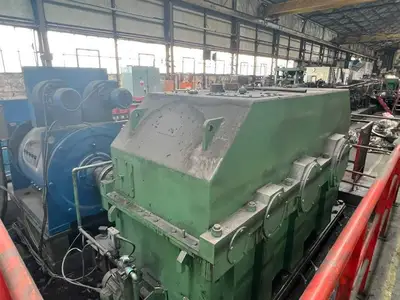

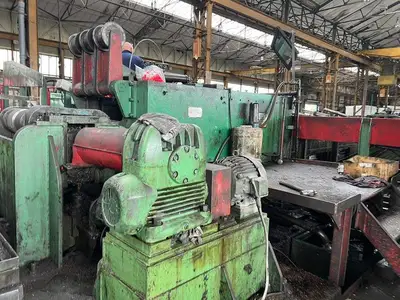

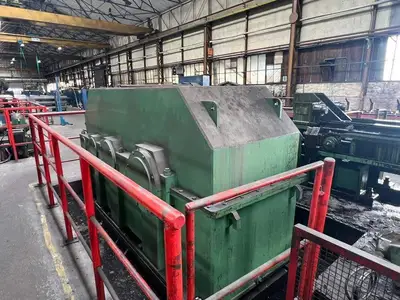

Gearbox
Rotating Bar Support & Ejection Arms
Pneumatically Operated

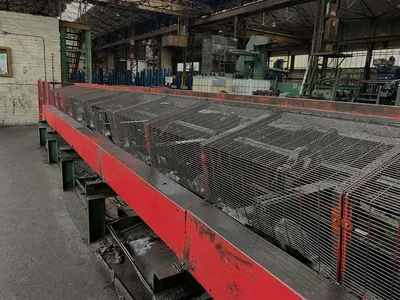

Transfer/Holding Table

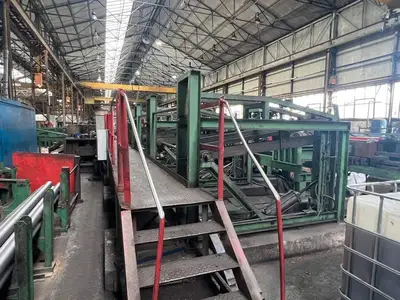

Unscrambler to Straightener
Lubrication System

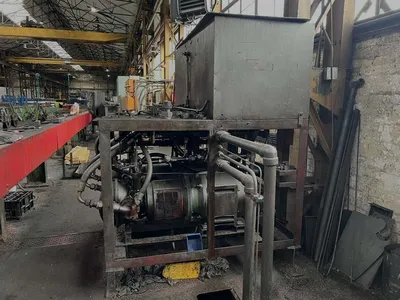

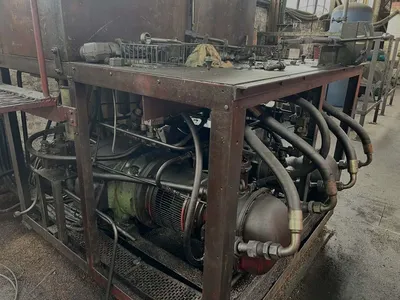

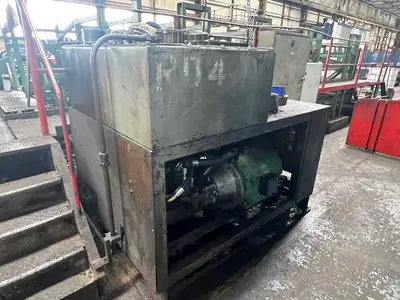

Hydraulic Power Pack

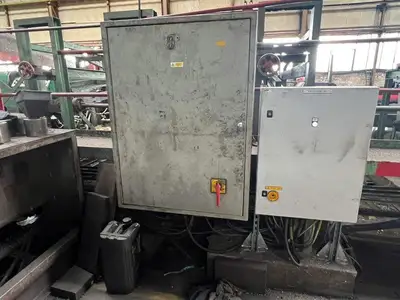

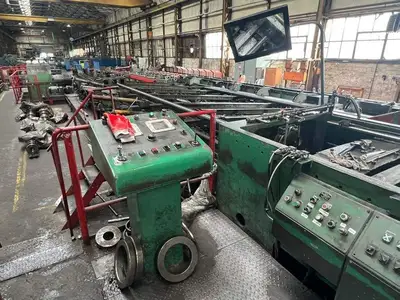

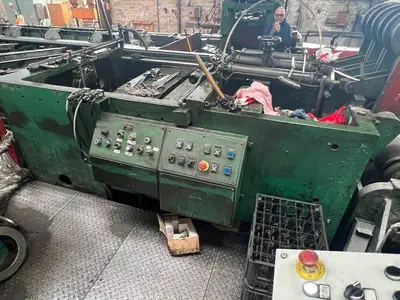

Electrical Controls
Tooling - Drawing Dies and Grippers
Some Spares – Including Spare Bed Sections

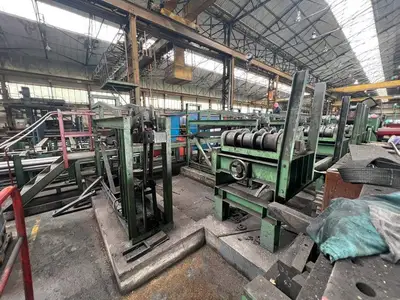

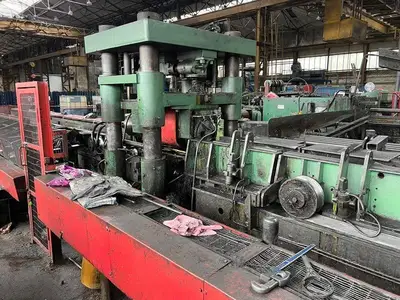

STRAIGHTENER TECHNICAL DATA
Manufacturer: Samuel Platt Ltd
Year of Manufacture: 1982
Design: 2 Roll Vertical
Model: HV5
Roll Dimensions
Diameter: 600mm
Length: 705mm
Drive: Hydraulic
Max. Round Bar: Diameter 127mm (5")
Max. Bar Length: 12m
COMPRISES

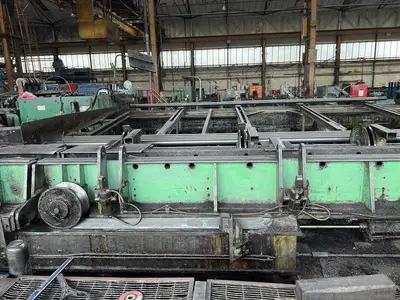

Transfer Loading Table
Unscrambler

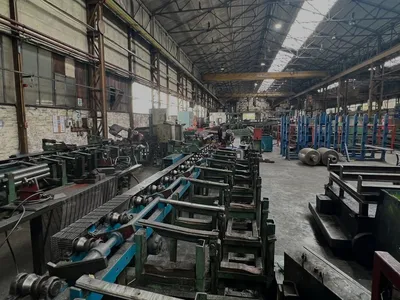

Entry Roller Trough Type Table
Roller Mounted Split Design
Hydraulic Actuation

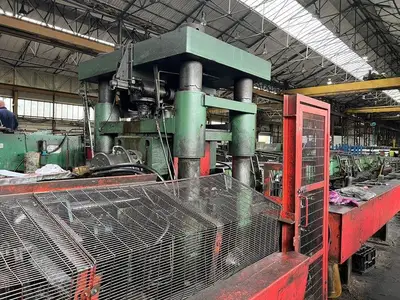

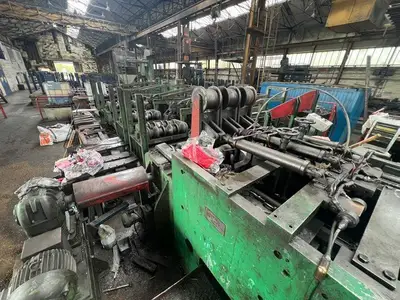

Straightener
Motorized Adjustment
Guide Blade Gate
Exit Roller Trough Type Table
Roller Mounted Design
Hydraulic Actuation
Pop-up Discharge Rollers to Roller Transfer Table to Saw
Lubrication System
Hydraulic Power Pack
Electrical Controls

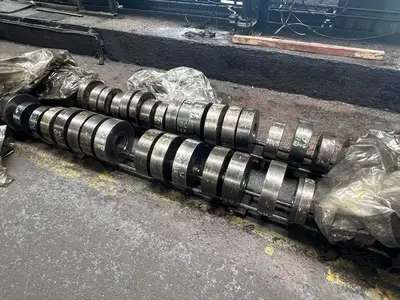

Spare Set of Rolls
Guide Blades

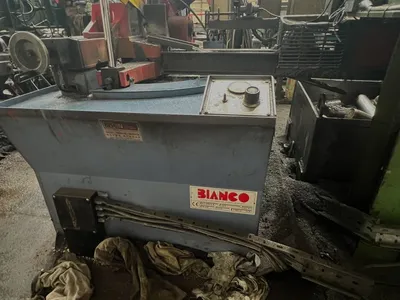

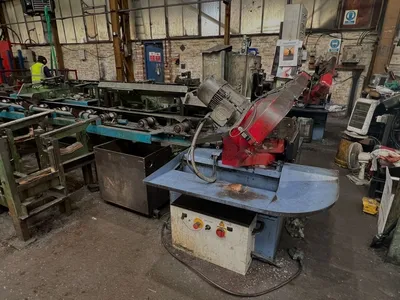

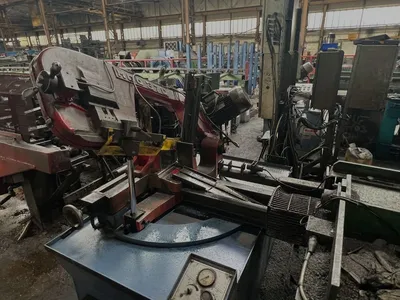

SAWS
TECHNICAL DATA
Amount: 2
Manufacturer: Bianco srl, Italy
Year of Manufacture: 2010
Model: 370 S. A.
Motor: 2.22kW
Type: Semi-Auto Bandsaw
Blade Dimensions: 3120mm x 27mm x 0.9mm
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE US SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
