USED 2007 DOOSAN PUMA 300C

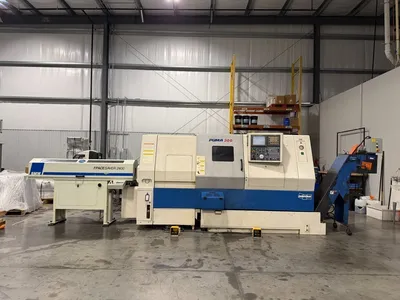

2007 DOOSAN PUMA 300C CNC TURNING CENTER

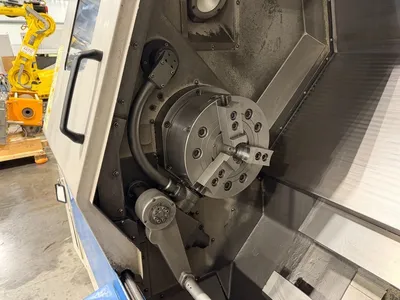

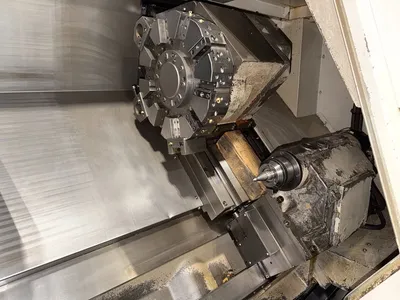

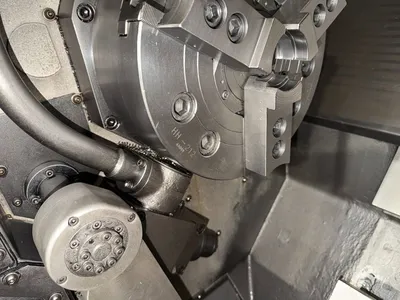

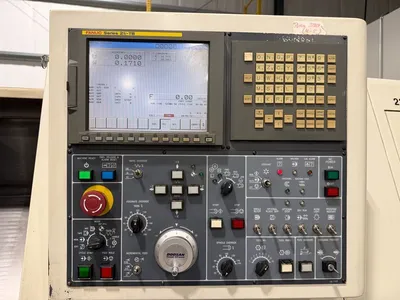

Heavy-duty Doosan Puma 300C CNC turning center equipped with a Fanuc Series 21i-TB CNC control and a large-bore turning configuration. This machine is set up for production turning and includes a hydraulic 3-jaw chuck, automatic turret, tailstock, tool presetter, coolant equipment, chip handling, and bar-feed capability.

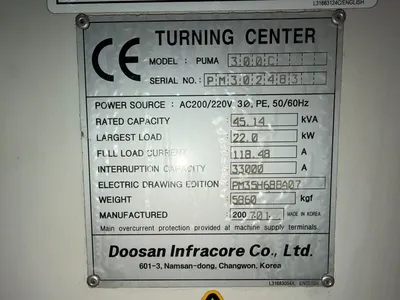

MACHINE SPECS:

Manufacturer: Doosan Infracore Co., Ltd.
Model: Puma 300C
Serial Number: PM302483
Power Source: AC 200/220V
Phase: 3 Phase
Frequency: 50/60 Hz
Rated Capacity: 45.14 kVA
Largest Load: 22.0 kW
Full Load Current: 118.49 A
Machine Weight: Approx. 5,668 kg / 12,496 lb

PUBLISHED PUMA 300C MODEL SPECIFICATIONS:

Maximum Turning Diameter: Approx. 15.7"

Maximum Turning Length: Approx. 24.8"

Maximum Bar Capacity: Approx. 4.05"

Swing Over Bed: Approx. 22.4"

Swing Over Carriage: Approx. 17.7"

X-Axis Travel: Approx. 11.1"

Z-Axis Travel: Approx. 26.8"

Spindle Nose: A2-11

Spindle Bore: Approx. 4.5"

Maximum Spindle Speed: Approx. 2,800 RPM

Spindle Motor: Approx. 35 HP

Tailstock Taper: MT-4

Published specifications for other Puma 300C machines consistently show this general configuration, but specifications and options should be verified on this individual machine prior to purchase.

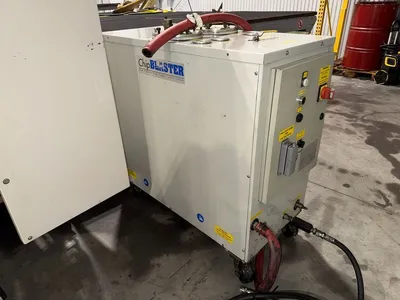

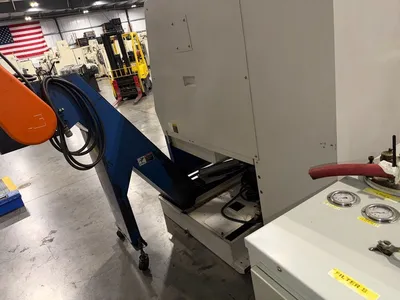

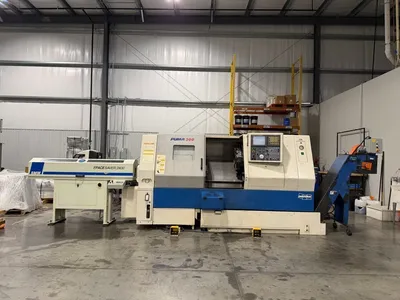

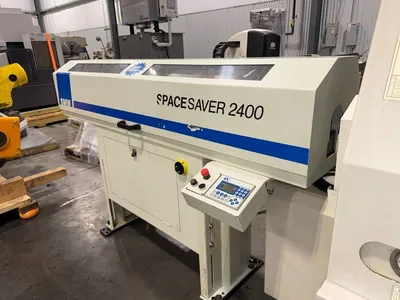

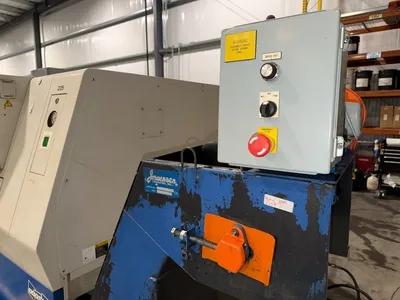

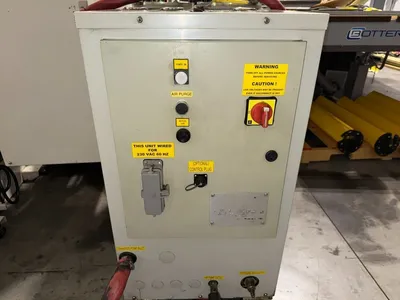

This machine includes the SMW Spacesaver 2400 bar feeder, Sorensen chip conveyor, and ChipBlaster coolant equipment shown in the photos. The machine presents as a complete production turning package suitable for a variety of turning, facing, boring and threading applications.
