USED 2008 DOOSAN PUMA 280

Ohio, United States
1,303Listings|534Followers
Overview
CNC Lathes

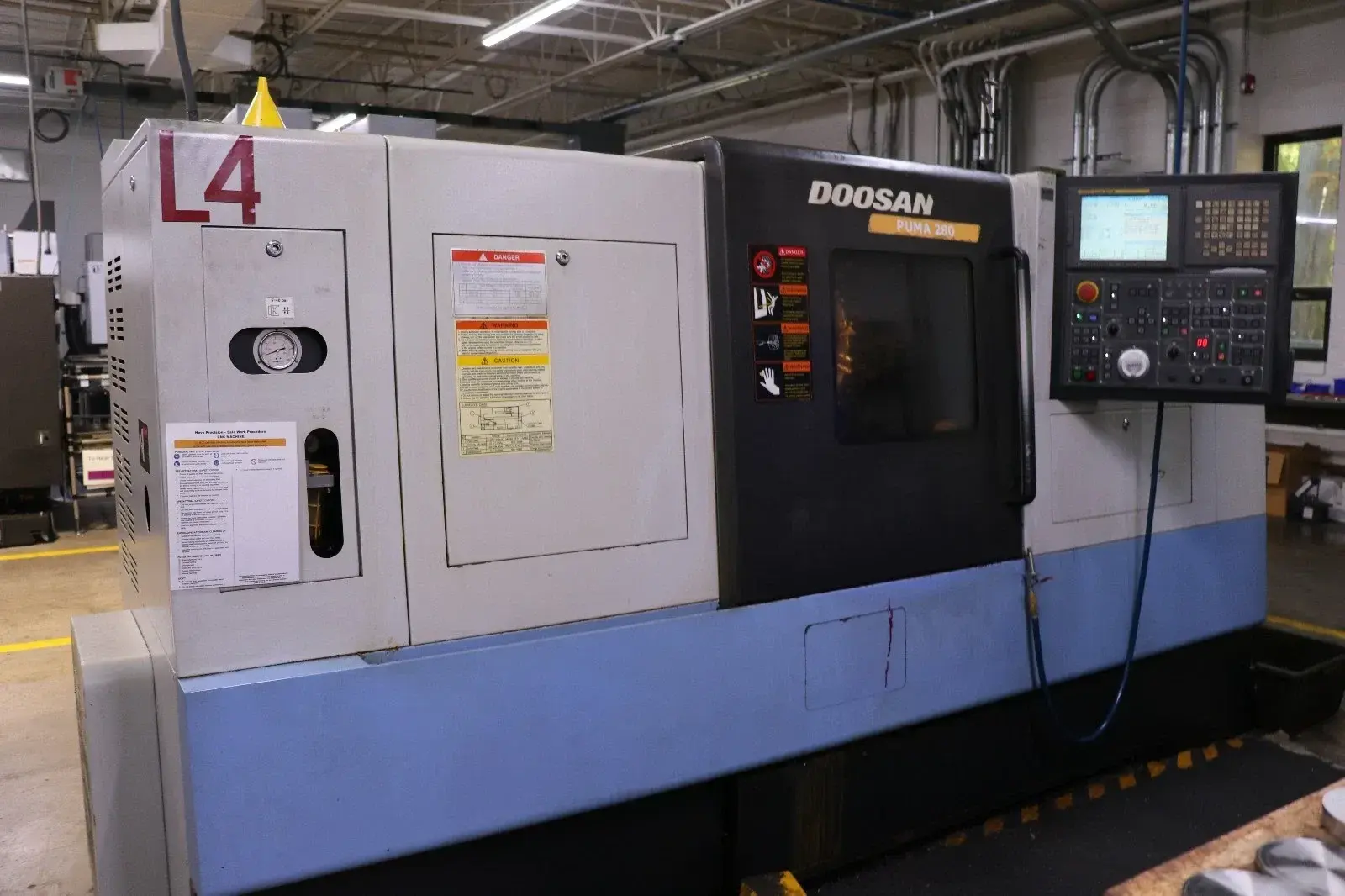

This 2008 Doosan Puma 280 is a 2-axis CNC lathe with a 12 station turret and a drag and drop style tailstock. It offers 24.8" of swing over the bed, a 3" bar capacity, and a 10" chuck, driven by a 30 HP spindle motor with a max spindle speed of 3,500 RPM.

Specs
Swing
24.8"
629.92 mm
Machining Length
25.91"
658.11 mm
# Axis
2
2
Chuck Size
10"
254 mm
Bar Capacity
3"
76.2 mm
Power
30 hp
22.4 kW
Max RPM
3,500 RPM
3,500 RPM
Turning Dia
16.54"
420.12 mm
Tailstock
Yes
Yes
Live Tooling
No
No
Sub Spindle
No
No
Control
CNC (Fanuc)
CNC (Fanuc)

X-Axis Travel: 9.5"
Z-Axis Travel: 26.75"
Approximate Dimensions: 137" x 67" x 69"
Approximately 46,320 Operation Hours

Equipped With

12 Station Turret
