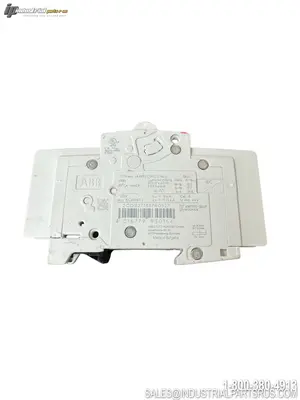

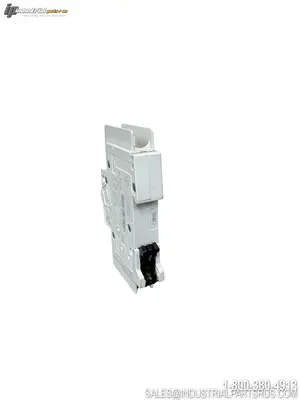

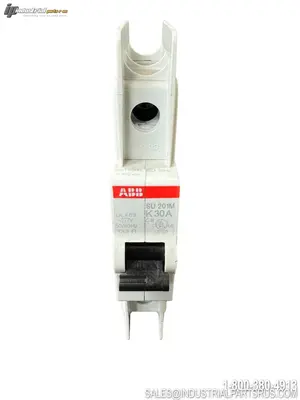

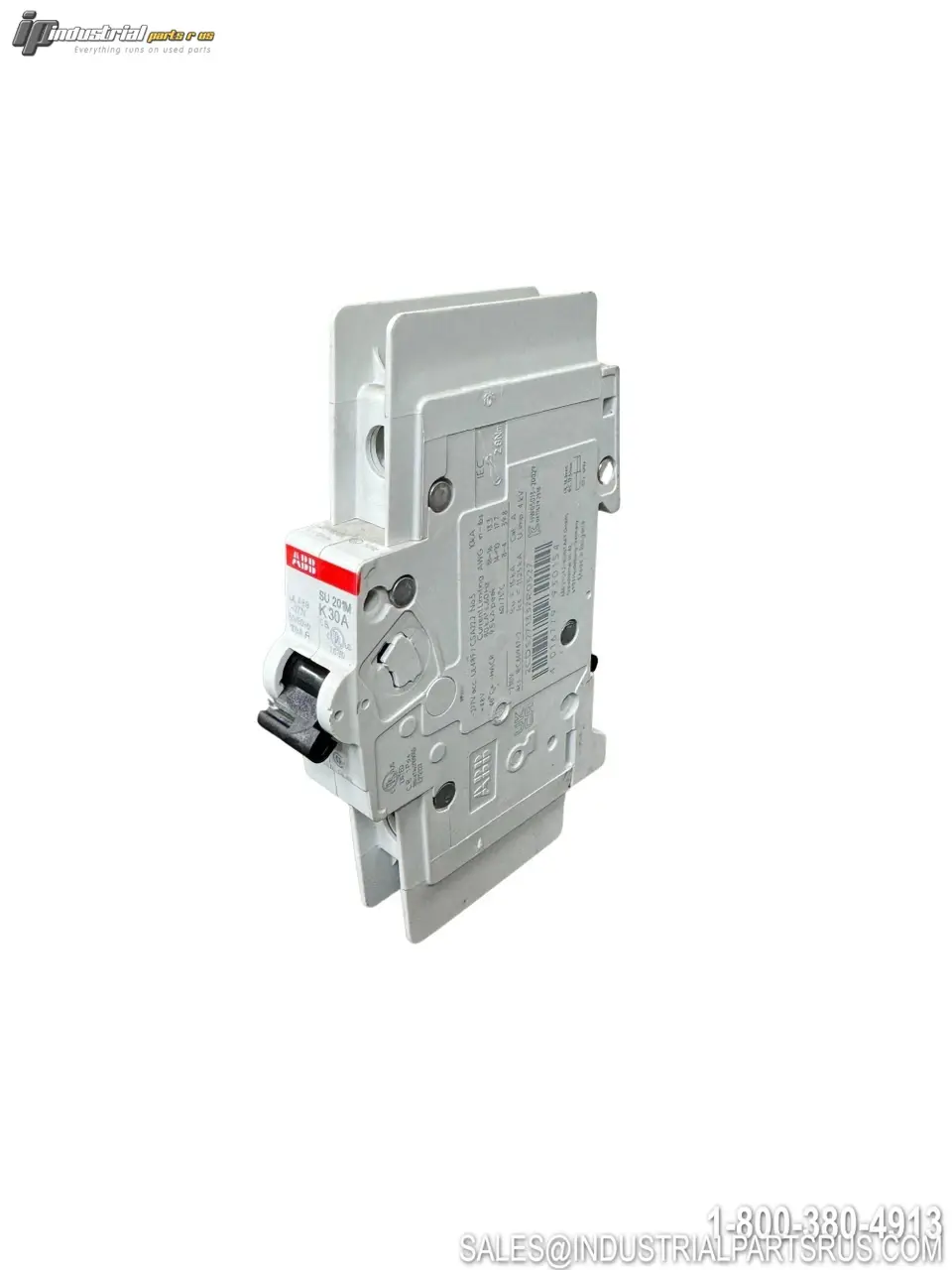

USED ABB BU201M K30A

The ABB BU201M K30A is a single-pole miniature circuit breaker (MCB) featuring a K-characteristic tripping curve, rated at 30 amperes. Designed for branch circuit protection in industrial and commercial electrical systems, it provides thermal-magnetic trip protection against overloads and short circuits. The K-curve characteristic makes it ideal for motor and transformer protection applications where high inrush currents are present. The breaker mounts on a standard 35mm DIN rail, features finger-safe screw terminals, a sealable actuator, and complies with UL 489, CSA 22.2 No. 5, and IEC/EN 60947-2 standards.
Specification
Value
Brand
ABB
Model / Part Number
BU201M K30A
Product Type
Miniature Circuit Breaker (MCB)
Number of Poles
1
Rated Current
30 A
Tripping Characteristic
K-Curve (Thermal Magnetic)
Voltage Rating (AC)
277/480Y VAC
Voltage Rating (DC)
48/96 VDC
Interrupt Rating
10 kA
Frequency
50/60 Hz
Mounting Type
35mm DIN Rail (TH35-7.5)
Terminal Connection Type
Screw Terminal
Wire Size (Conductor)
18–4 AWG
Wire Size (Busbar)
18–8 AWG
Enclosure / Protection Degree
IP20 / IP40 (with cover accessory)
Temperature Rating
-25°C to +55°C
Power Loss (at 30A)
3.5 W
Tightening Torque
2.8 N·m (25 in·lbs)
Dimensions (L x W x H)
69 mm x 17.5 mm x 111 mm
Standards / Approvals
UL 489, CSA 22.2 No. 5, IEC/EN 60947-2
Housing Color
Light Gray (RAL 7035)
Auxiliary Contacts
Optional (accessory)
Shunt Trip
Optional (accessory)
Mechanical Endurance
20,000 operations
We warranty all items for 30 days from date of purchase.
