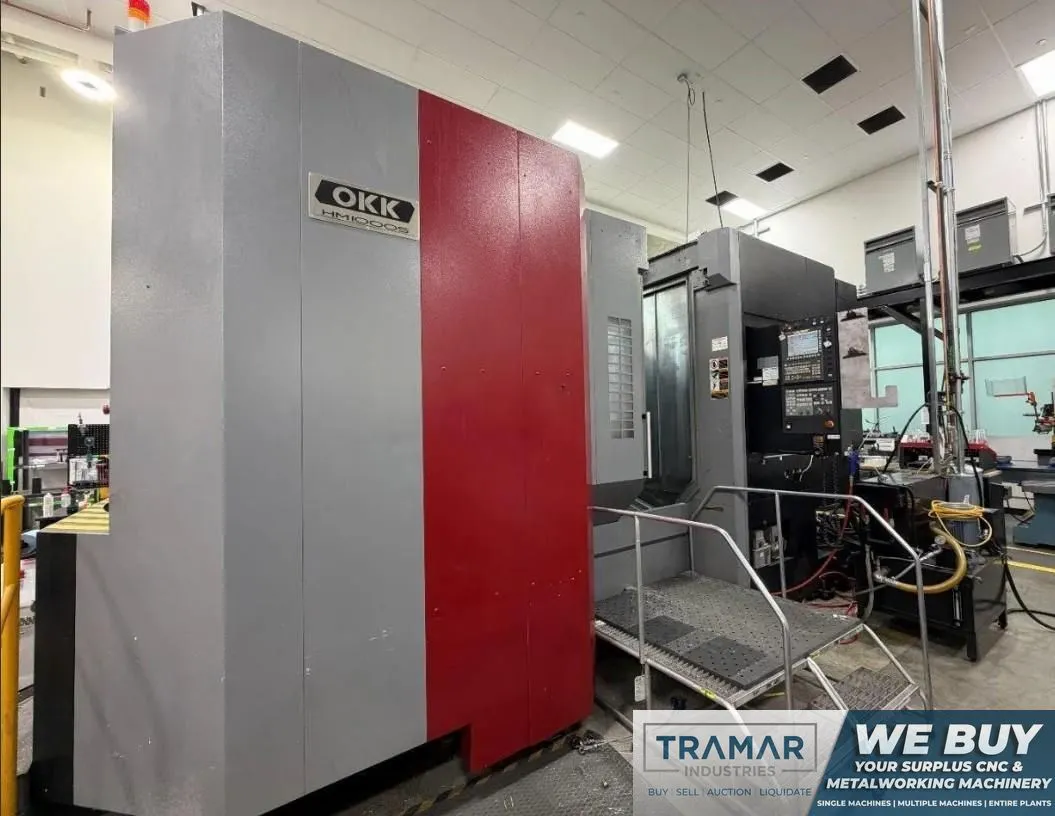

USED 2016 OKK HM-1000S
Overview

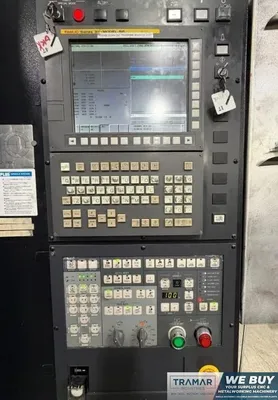

Fanuc 31i-Model B5 CNC Control
Pallet Size: 39.4" x 39.4" | 5,500 lbs
Travels: X-55.2" / Y-43.3" / Z-39.4"
Full B-Axis 0.001°
CAT 50 Big Plus | 12,000 rpm | 60 hp
60 Station Tool Changer
1,000 psi Coolant Thru Spindle
The OKK HM-1000S is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
Specs
CNC Control: yes
Control Type: Fanuc 31i-Model B5
# Axis: 4
Pallet Length: 39.4"
Pallet Width: 39.4"
Pallet Load Capacity: 5,500 pounds
Pallet Indexing (B-Axis): 0.001°
X-Axis Travel: 55.2"
Y-Axis Travel: 43.3"
Z-Axis Travel: 39.4"
Rapid Traverse Rate (X/Y/Z): 1,889 ipm
Spindle Taper: CAT 50 Big Plus
Spindle Speed: 12,000 rpm
Spindle Motor (HP): 60 hp
Tool Changer Capacity: 60
Coolant Through Spindle: yes
Machine Weight: 55,000 pounds
Equipped With
- Fanuc 31i-Model B5 CNC Control
- 1000 PSI Thru-Spindle Coolant
- BRT Full 4th Axis Table
- 35-12,000 RPM, CAT50 BIG PLUS, 60/40 HP, High Torque Spindle
- Renishaw Probe System
- Hyper HQ control function: MODE B ..This function G05P_ is tuned by OKK
- Fanuc / High precision contour control function with 64 bit RISC processor
- 600 block Look Ahead
- 1 mm line segments data processing capability: 150 m/min (5,905 IPM)
- Price includes Data server with Ethernet interface- 1.0 Gigabyte (FA-J534)
