USED 2005 OKUMA MACTURN 250
Overview

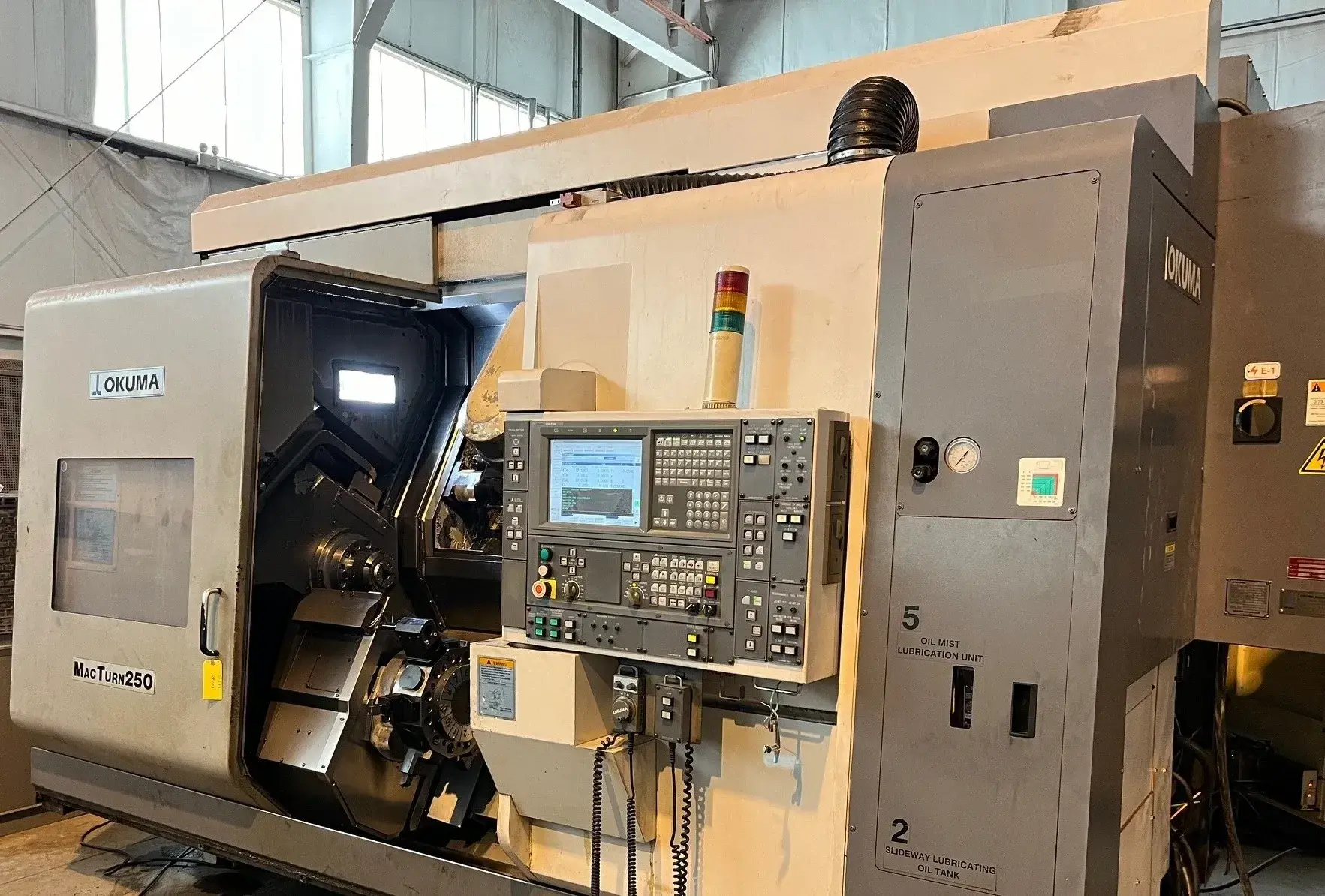

This 2005 Okuma Macturn 250 5-axis CNC lathe pairs a B-axis milling head and 6,000 RPM live milling with a 44-position ATC, Renishaw automatic gauging, and a tailstock. It has 21.65" of swing, 39.37" of work length, and a 2.75" bar capacity, with a 30 HP main spindle reaching 5,000 RPM on an OSP-P100L control.
Specs
Spindle Bore: 3.15"
Spindle Nose: A2-8
Swing Over Saddle: 20.87"
X-Axis Travel, Upper Turret: 18.70"
X-Axis Travel, Lower Turret: 6.30"
Z-Axis Travel, Upper Turret: 40.06"
Z-Axis Travel, Lower Turret: 45.47"
Y-Axis Travel: 6.30" (+3.15" to -3.15")
C-Axis: 360° with 0.001° Control
B-Axis: 210° with 1° Indexing
Milling Spindle Speed: 6,000 RPM
Milling Spindle Power: 15/10/7.5 HP
Tailstock Quill Diameter: 3.54"
Tailstock Taper: MT5
Tailstock Quill Travel: 5.91"
Approximate Weight: 25,300 lbs
Approximate Dimensions: 170" x 100" x 114"
Equipped With
OSP-P100L Control
B-Axis Milling Head with Live Milling
44-Position Automatic Tool Changer
Lower Turret
Collet-Type Chuck with Kitagawa Hydraulic Actuator
Renishaw Automatic Gauging
C-Axis Zero Offset
Turret and Tailstock Collision Countermeasure
Lift-Up Chip Conveyor
