USED 2011 HURCO TMX10MY
Overview

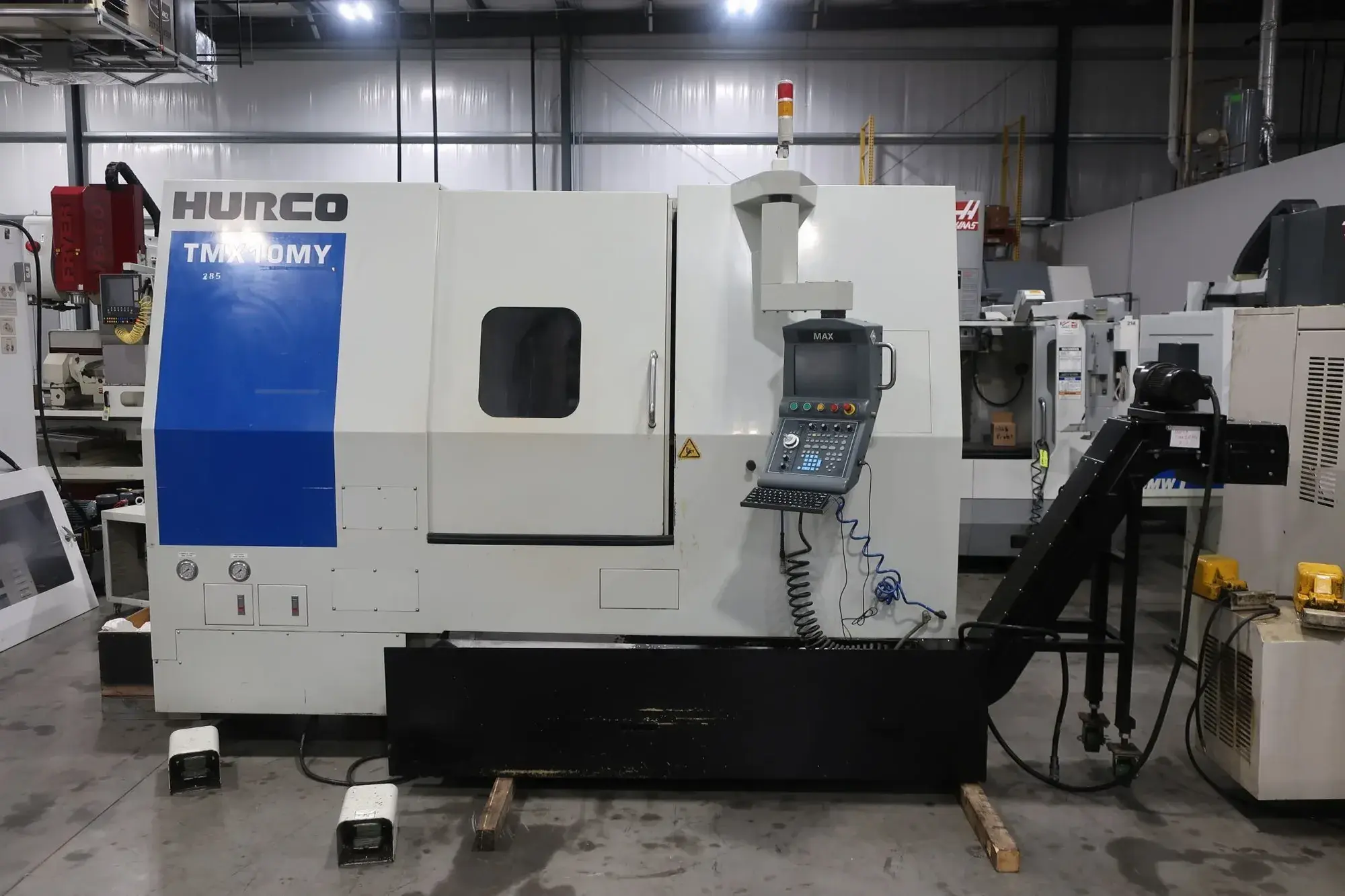

This 2011 Hurco TMX10MY CNC lathe has Y-axis live tooling on a 12-station turret, with 22.05" of swing, a 10" chuck, and 3.07" of bar capacity. Its 37.6 HP main spindle reaches 3,500 RPM, the live tools run up to 5,000 RPM at 8.5 HP, and a tailstock is included.
Specs
Swing Over Cross Slide: 22.05"
Distance Between Centers: 33.6"
X-Axis Travel: 12"
Y-Axis Travel: 2.17"
Z-Axis Travel: 26.38"
W-Axis Travel: 29.13"
Main Spindle Torque: 197 ft-lb
Turret Stations: 12
Turret Tool Shank Size: 1" x 1"
Max Boring Bar Diameter: 1.57"
Live Tooling Speed: 5,000 RPM
Live Tooling Power: 8.5 HP
Live Tooling Torque: 20.4 ft-lb
X-Axis Rapid Traverse: 945 IPM
Y-Axis Rapid Traverse: 472 IPM
Z-Axis Rapid Traverse: 1,181 IPM
W-Axis Rapid Traverse: 1,181 IPM
Approximately 1,018 Spindle Hours
Approximately 208 Live Tool Spindle Hours
Approximately 4,853 Machine On Hours
Approximate Weight: 15,984 lbs
Approximate Dimensions: 139" x 95" x 108"
Equipped With
Hurco MAX / WinMax Style Control
Chip Conveyor
Coolant / Chiller Unit
Hydraulic Unit
Transformer / Electrical Cabinet
