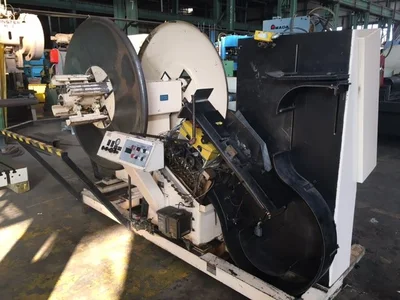

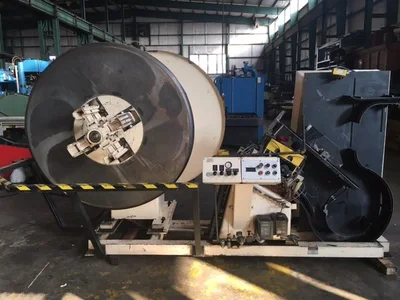

Minster Powered Straightener / Uncoiler Combination

USED MINSTER POWERED STRAIGHTENER AND DOUBLE

\END UNCOILER COMBINATION

COMMON BASE

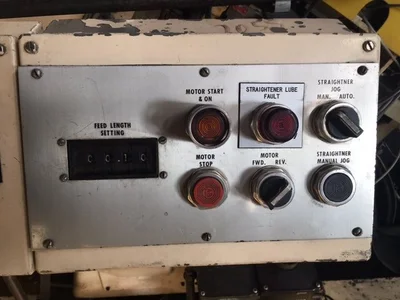

MINSTER CONTROLS (SPEED AND FEED LENGTH)

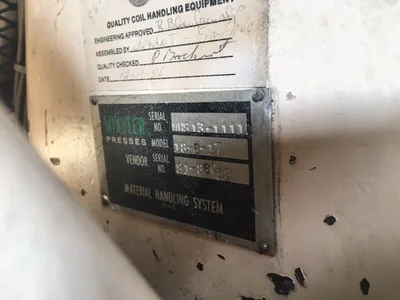

PERFECTO STRAIGHTENER MODEL 18-6-17

S/N: S1-86058

CAPACITY: .060″ @ 3.00″ MILD STEEL

.060″ @ 6.00″ BRASS AND ALUMINUM

(17) STRAIGHTENING ROLLS

ENTRY AND EXIT PINCH ROLLS

VARIABLE SPEED CONTROL TO 2400 IPM

STANDARD 15″ “S” LOOP CONFIGURATION

FWD/REV/JOG

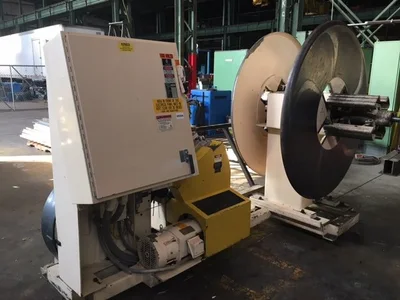

PERFECTO 3,000 LB. NON-MOTORIZED DOUBLE END UNCOILER

MODEL RD 3-12 B

S/N: RD-86059

INDIVIDUALLY ADJUSTABLE DRAG BRAKES

MAXIMUM WIDTH: 6″

MAXIMUM COIL O.D.: 60″

COIL I.D. RANGE: 15-1/2″ TO 20-1/2″

480 VOLT, 3 PHASE, F.L.A. 12.5

MOTOR 5 HP
