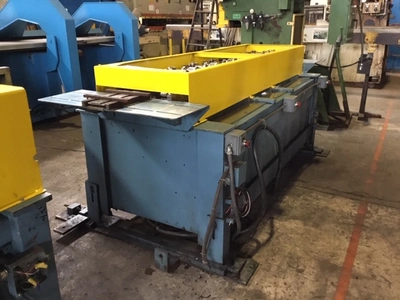

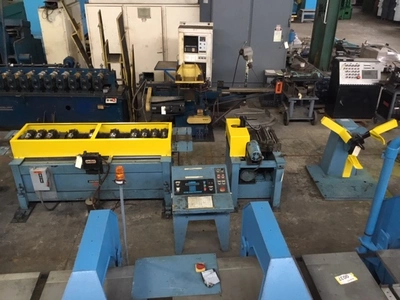

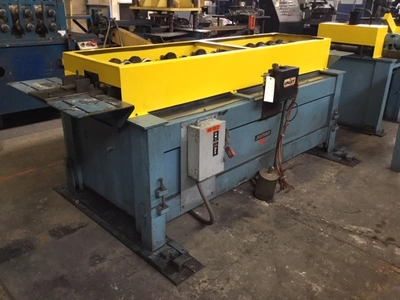

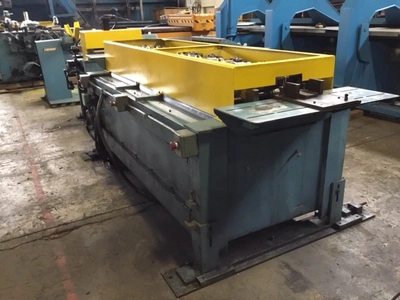

Lockformer 14 Stand Roll Form Line

Used Lockformer 14 Stand Roll Form Line

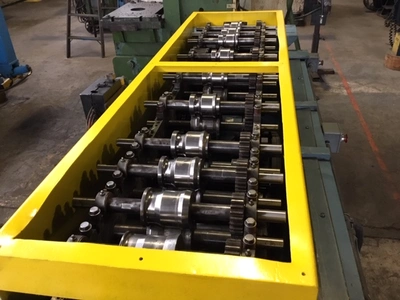

NUMBER OF STANDS | 14

NUMBER OF PASSES | 10

ROLL SPACE | 12″

SHAFT SIZE | 1.5″

VERTICAL CENTERS | 4″

VERTICAL ADJUSTMENT | .5″

HORIZONTAL CENTERS | 6″

TOOLING PROFILE | ROLL UP GARAGE DOOR

GEAR DRIVEN

UNIST LUBE SYSTEM

MOTOR: 7.5 HP

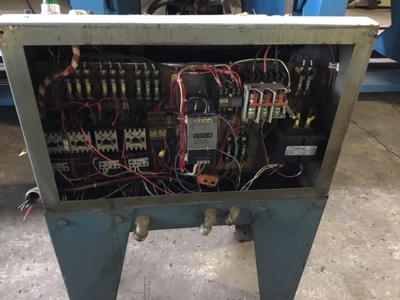

ELECTRICAL: 480 VOLT / 3 PHASE

DIMENSIONS: 111″ F-B X 59″ L-R X 42″ H

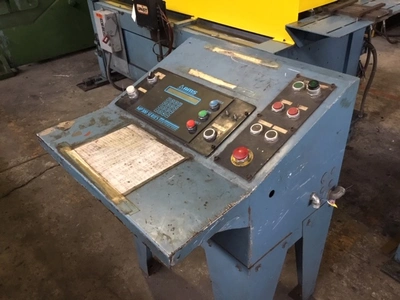

CONTROL:

AMS LENGTH CONTROL SYSTEM

MODEL: MP 300 SERIES

DIMENSIONS: 28″ L-R X 27″ F-B X 40″ H

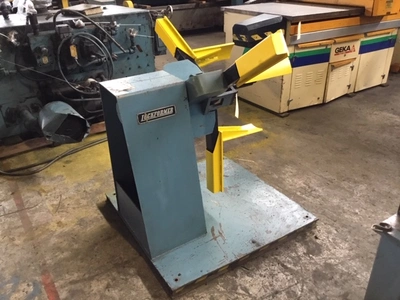

UNCOILER:

CAPACITY: 3,000 LBS.

MAX. COIL WIDTH: 12″

MAX. O.D.: 60″

I.D. RANGE: 12 – 21″

MANUAL EXPANSION

DIMENSIONS: 40″ L-R X 40″ F-B X 60″ h

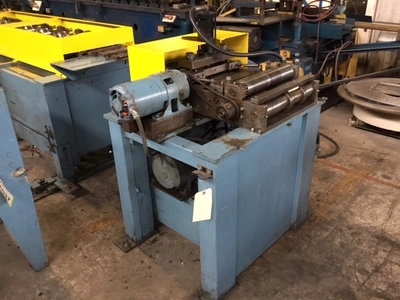

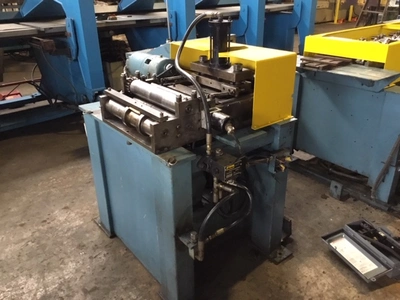

FEEDER/CUT-OFF UNIT

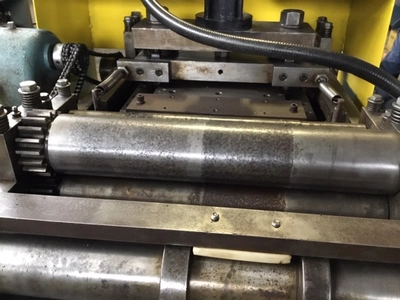

MOTORIZED PULL THROUGH FEEDER

FLYING CUT-OFF: HYDRAULIC ACTUATED

DIMENSIONS: 36″ L-R X 41″ F-B X 50″ H
