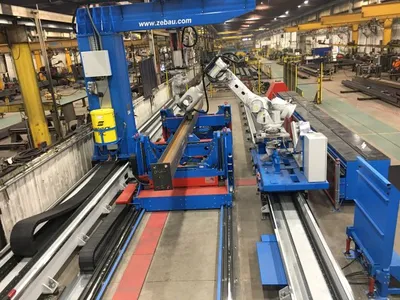

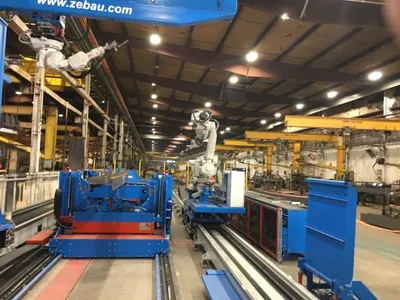

Zeman Z6 (SBA) Steel Beam Assembly Welding Cell

Zeman Z6 (SBA) Steel Beam Assembly Welding Cell

Beam size capacities

Height

150 mm min – 1100 mm max

Width

80 mm min – 500 mm max

Length

3000 mm min – 12000 mm max

Beam types supported

H-beams (range)

150 mm min – 1100 mm max

Welded H-beams

Yes

Corrugated SIN beams

Yes (optional)

Rectangular / square tubes (range)

80 mm × 80 mm min – 500 mm × 500 mm max

U-profiles

Yes

Tapered H-beams (range)

250 mm min – 1000 mm max (optional)

Corner frame application

Yes (optional)

Weight limits

Added parts

0–200 kg

Beam weight

0–6000 kg

Added parts dimensions

Plates (min)

50 mm × 100 mm × 3 mm

Plates (max)

800 mm × 1400 mm × 60 mm

Speeds & welding

Processing speed

250 mm/sec (10″/sec)

Welding

Close-up spot welds; curved welding radius

Welder

Fronius TPS 500i

Controls & features

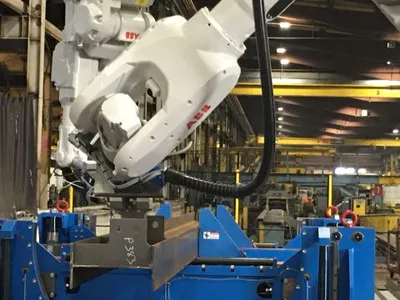

ABB robots (2) with 500 lb part capacity

SBA parts laser scanner

Control: Siemens

Software: Siemens SIMATIC S7 PLC
