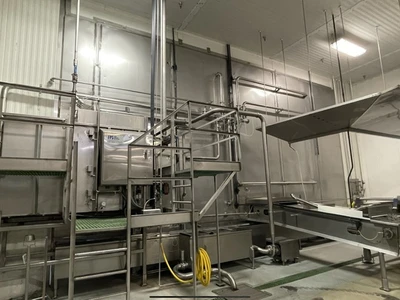

FPS Spiral Freezer, Model: SS36 25575-18

Model: SS36 25575-18
Ammonia System
Fully Welded Stainless Steel Enclosure
Enclosure Dimensions: 32’L x 25’W x 16′-9″H
Layout Configuration: 90°
Overall Belt Width: 36″
Usable Belt Width: 33″
Stainless steel balanced weave mesh Belt
25.25 Tiers
Product Height Clearance: 3″
In Low Out High
Infeed Height: 2′-6″
Discharge Height: 14′-7″
Effective Belt Length: 1360′
Capacity: 10,000 lbs/Hr 3/4″ Potato Cubes
Construction is all stainless steel including cage, belt supports, coil supports, baffling, etc.
Floor, ceiling and enclosure are part of an fully welded, insulated structural system
Mezzanine is a free-floating stainless steel design providing access to the upper spiral area & directing airflow
Coil design is stainless steel tube with aluminum fins
Interior LED lighting with polycarbonate enclosures
NEMA4 stainless steel control panel complete with Allen Bradley Compactlogix PLC, Panelview Pus 1000 color touchscreen, drive frequency inverters, motor starters, circuit breakers, safety switches
Engineering drawings & utilities
External Mounted Drum Drive
Externally Mounted Fan Motors
Up To 18″ Stainless Steel Support Legs
Recirculating CIP System C/W Tank, Pump Valves & Nozzles
Synchronized Sequential Defrost Design:
– Sequential Defrost Individual Coils
– Hot Gas Programming
– Baffles And Partitions
– Individual VFDs On All 4 Fan Motors
*Unit Was Installed In 2019*
*This Unit New Was 1.7 Million*
