NEW LMC AL17

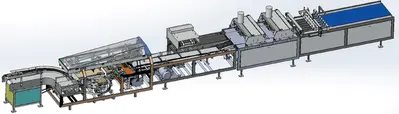

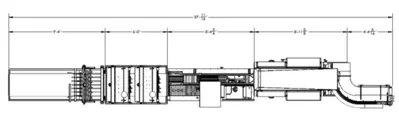

Lenexa Bun Autoloader Line, Model AL17
Bun Bagging System. Power of 480v/3/60. Air of 90PIS and 15 CFM. Left hand operator with a left hand straight crossfeed.
Zone guarding – risks guarded with sheet metal or Lexan at
location of risk.
1. Painted cold roll steel frame
2. Cam and chain power transfer
3. Metering Belt
4. Slide
5. Indexing conveyor with gate / brake – 6 lanes
6. Hinge Slicer (5 spindle), space for future slicer
7. Servo Stacker
8. Tri motion tucker
9. Dual chain retracting top transfer
10. Bagger with Rotary Bag Table (four carousel tables)
11. Straight Crossfeed Conveyor (seven feet long)
12. Guide rails for Kwik Lok tyer
Light weight aluminum free roller flighted infeed conveyor with 24” spacing for up to 16” long products
Electrical:
– 24 volts DC for controls and air solenoids
– 10” Panel View + 7 screen and new enclosure door screen displays I/O diagnostics and all faults with alarm history
– Powerflex VFDs Quantity of 2
– Sensasguard prox switches, CAT 3 safety
– CompactLogix 5370 L3 Controller
– Enclosure
– Machine air control timing setting for all products from recipe function
– Stack warning light with audible alarm
– Allen Bradley RFID door safety switches Category 3 safety
– Wired for customers 208/230/460 volt 60 Hrtz three phase power
Miscellaneous
– One hard copy machine manual with diagrams, exploded views and parts list, wiring, sprocket and Air diagrams
– One electronic of above on memory stick
Click here to see video of machine in use
