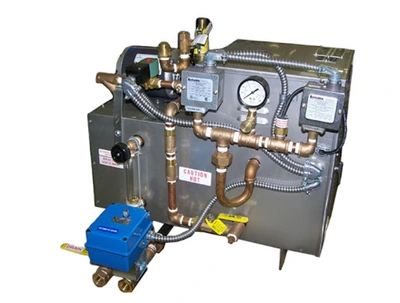

NEW ELECTRO STEAM LG20

Model LG-20
General Description
The Electro-Steam generator is a factory assembled and wired unit complete with all necessary automatic controls.  Each unit is constructed under the A.S.M.E. Boiler and Pressure Vessel Code.  Each generator is composed of one section with a steam space in the upper part.  Heat source is All-Electric removable stainless immersion heaters inserted horizontally.  All generators are completely jacketed in aluminum backed fiberglass blanket insulation and encased in a 20 gauge sheet metal cabinet finished in baked enamel.
Heating Element Construction
Nicrome 80-20 % wire rod with compacted magnesium oxide, sheathed in an incoloy (stainless) tube.  Entire element is silver-brazed into a removable flange fitting.
Standard Equipment
A.S.M.E. Approved Safety Valve

Blow Down Valve

Visual Water Gauge

Interconnecting Pipe & Fittings



  Electric Rating 20
BHP Steam Capacity (at 212F) LBS. 69
BTU/HR DIMENSIONS
Inches Length, Overall 26
Inches Steam Outlet (High) 1/2
Inches AMPERAGE
AMPS 480V. – 3  Phase 25
LBS. 175
