NEW ELECTRO STEAM LB50

Electro-Steam All Electric Steam Generator
Model LB-50


– National Board of PVI Shop Inspected
– ASME, UL & ETL

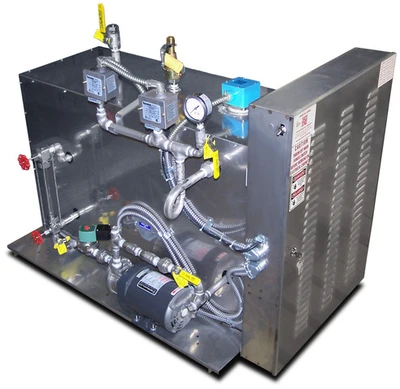

– Delivered as complete package as shown in photo.
– Requires only city water, electric service and drain line connections.
– Small and Compact – sizes from 4 bhp to 6 bhp (40KW – 60KW) in low pressure steam (0 – 15 PSI)
– Fully Automatic – All necessary controls, valves and regulators included.  Operates with single on-off switch.
– Design Features – Immersion type resistance heating elements with flange mounting for positive sealing and easy maintenance.

Ideal for Many Requirements:

? Process Steam    ? Remote Area Steam
? Standby Steam    ? Critical Area Steam
? Off Season Steam

The Perfect Answer for Many Applications:
WHEREVER STEAM IS NEEDED…

? Food Processing / Kettles / Cooking    ? Biotech Applications
? Bakery Ovens & Proof Boxes              ? Pharmaceutical
? Clothing / Textile                                ? Industrial Processes
? Concrete Industry                               ? Power Plants
? Chemicals / Plastics                           ? Printing Plants
? Laboratories / Pilot Research               ? Steam Baths
? Solvent Recovery                                ? Metal Finishing

? EFFICIENT ? VERSATILE ? COMPLETE SAFETY ? QUALITY STEAM
? ECONOMICAL ? EASY TO SERVICE ? CONSERVES ENERGY & WATER

Specifications:
Model Number LB-50
Electric Rating – KW 50
Developed Boiler Horse Power – BHP 5.0
Steam Capacity (at 212F) LBS. – LB/HR 173
Gross BTU Output – BTU/HR 167,500
DIMENSIONS
Height, Overall (Including Fittings) – Inches 33
Length, Overall  (Including Fittings) – Inches 50
Width, Overall (Including Fittings) – Inches 26
Steam Outlet (Low) – Inches 3/4
AMPERAGE
208V.    3  Phase – AMPS 139
480V.   3  Phase – AMPS 61
Ship. Wgt. Low Pressure – LBS 425
