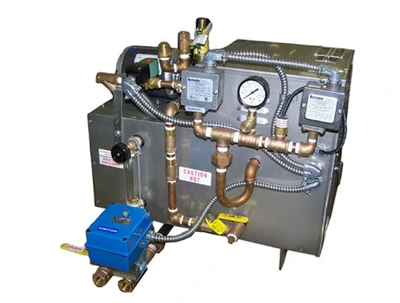

Electro-Steam All Electric Steam Generator
Model LG-30

General Description

The Electro-Steam generator is a factory assembled and wired unit complete with all necessary automatic controls.  Each unit is constructed under the A.S.M.E. Boiler and Pressure Vessel Code.  Each generator is composed of one section with a steam space in the upper part.  Heat source is All-Electric removable stainless immersion heaters inserted horizontally.  All generators are completely jacketed in aluminum backed fiberglass blanket insulation and encased in a 20 gauge sheet metal cabinet finished in baked enamel.

Heating Element Construction

Nicrome 80-20 % wire rod with compacted magnesium oxide, sheathed in an incoloy (stainless) tube.  Entire element is silver-brazed into a removable flange fitting.

Standard Equipment
Steam Pressure Gauge

A.S.M.E. Approved Safety Valve

Steam Outlet Valve

Blow Down Valve

Two (2) Water Feed Line Check Valves

Visual Water Gauge

Complete Controls

Interconnecting Pipe & Fittings

Controls

Low Pressure Package (0-15 PSI) – Dual pressure controls, water level control and low water cut off, steam pressure control adjustable for desired working pressure, magnetic stop valve with strainer on water feed line.

Model Number   LG-30
Electric Rating KW 30
Developed Boiler Horse Power BHP 3.0
Steam Capacity (at 212F) LBS. LB/HR 103.5
Gross BTU Output BTU/HR 100,400
DIMENSIONS
Height, Overall Inches 23
Length, Overall Inches 26
Width, Overall Inches 19
Steam Outlet (High) Inches 1/2
Steam Outlet (Low) Inches 1/2
AMPERAGE
208V. – 3  Phase AMPS 84
480V. – 3  Phase AMPS 37
Ship. Wgt. Low Pressure LBS. 175
