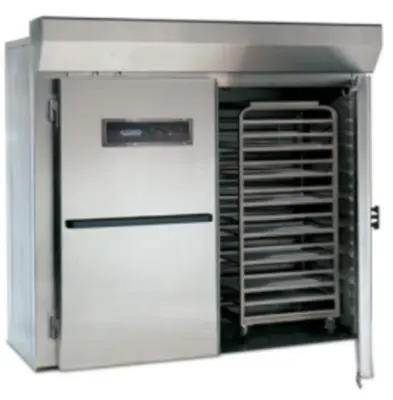

NEW LBC LRPR3-50HO

LBC Roll-In Rack High Output Retarder/Proofer (2 Door, triple wide)
Automatic Retarding, Slacking and Proofing of a Wide Variety of Products at Varying Times and Temperatures. High Output (HO) models designed for large operations and for "Green Dough" or scratch mixed bakeries.
Model LRPR3-50HO 50" Deep
(Triple wide rack capacity)
–  Racks Sold Separately. To View LBC Racks – Click Here

Same features and benefits as Standard Duty retarder/proofer

Increased pull-down capacity

Built on same solid base as proofer

Epoxy-Coated Evaporator Coil assure long life.

Optional Condenser

Includes Evaporator, Expansion Valve and Refrigeration Solenoid Valve
(Configured for R404a optional condenser)

Proof, Retard or Operate in Automatic Mode

CONSTRUCTION FEATURES:
Two Door, triple wide rack capacity

Heavy duty stainless steel exterior with 300 Series stainless steel interior and aluminized steel top

Walls, ceiling and door are foam insulated

Modular wall and ceiling panels, designed for cam-lock on-site assembly

Rapid responding air-wash heat and humidity system

Quick response air-wash humidity/heat system with epoxy coated coils

High capacity refrigeration system with epoxy coated evaporator coils

208 or 240 Volt, single or three phase power, field convertible

Optional remote condensers

Refrigeration components compliant with R404a refrigeration

PERFORMANCE FEATURES:
Dual purpose unit provides both dough proofing and retarding capabilities

70-120°F proofing temperature range

34-45°F retarding temperature range

50-99% humidity range

Non-submerged calrod type heaters

Evaporators sized for high humidity levels, to prevent drying

Refrigeration sized for rapid pull down required by scratch baking

Lighted interior

Interior bumpers protect proofer walls from rack damage

CONTROLS FEATURES
All digital controls mounted in the door, at eye level

PID Type controls for rapid accurate response without overshoot

Operate in individual modes or automatic mode

Digital set Temperature, Humidity, Time

Real time clock installed in the left hand door at eye-level

Large LED displays

POWER

Electric: Available in 208V or 240V; 1 or 3 Phase
kW: see Spec Sheet (PDF)
Optional condenser powered separately.


NOTES
All models are shipped Knocked Down; Assembly Required

Water Treatment Requirements:

*Cold water, 30 to 80 PSI
*pH between 6.8 and 7.6
*Conductivity less than 1/500,000 ohms per inch
*Total dissolved solids less than 100 parts per million
*Hardness from 5.3 to 7.3 grains per gallon

*Maximum Salinity Ion Content:
*Chlorine less than 0.5 parts per million
*Chlorides less than 30 parts per million
*Sulfates less than 40 parts per million
*Iron less than 0.1 parts per million
*Copper less than 0.05 parts per million
*Manganese less than 0.05 parts per million
*Chloramines less than 0.5 parts per million


STANDARD PRODUCT WARRANTY
One Year, Parts & Labor (Mfg Warranty)
