NEW ELECTRO STEAM LB100

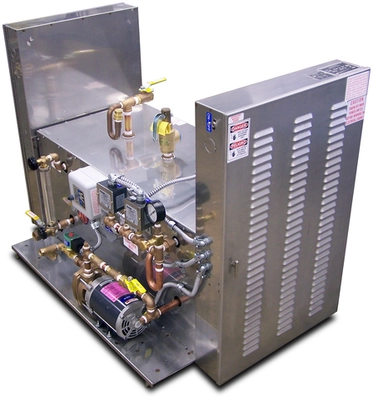

Electro-Steam All Electric Steam Generator
Model LB-100


– National Board of PVI Shop Inspected
– ASME, UL
– Delivered as complete package.  Requires only city water, electric line service and rain line connections.
– Small and Compact – Size 10 BHP (100 KW) low pressure (0 – 15 PSI) or (0 – 30 PSI) steam.
– Fully Automatic – All necessary controls, valves, regulators included.  Operates with single on-off switch.
– Design Features – Immersion type resistance heating elements with flange mounting for positive sealing and easy maintenance.

Ideal for Many Requirements:

? Process Steam    ? Remote Area Steam
? Standby Steam    ? Critical Area Steam
? Off Season Steam

The Perfect Answer for Many Applications:
WHEREVER STEAM IS NEEDED…

? Food Processing / Kettles / Cooking    ? Biotech Applications
? Bakery Ovens & Proof Boxes              ? Pharmaceutical
? Clothing / Textile                                ? Industrial Processes
? Concrete Industry                               ? Power Plants
? Chemicals / Plastics                           ? Printing Plants
? Laboratories / Pilot Research               ? Steam Baths
? Solvent Recovery                                ? Metal Finishing

? EFFICIENT ? VERSATILE ? COMPLETE SAFETY ? QUALITY STEAM
? ECONOMICAL ? EASY TO SERVICE ? CONSERVES ENERGY & WATER

Specifications:
Model Number LB-100
Electric Rating – KW 100
Developed Boiler Horse Power – BHP 10.0
Steam Capacity (at 212F) LBS. – LB/HR 345
Gross BTU Output – BTU/HR 334,800
DIMENSIONS
Height, Overall (Including Fittings) – Inches 37
Length, Overall  (Including Fittings) – Inches 52
Width, Overall (Including Fittings) – Inches 26
Steam Outlet (Low) – Inches 3/4
AMPERAGE
208V.    3  Phase – AMPS 278
480V.   3  Phase – AMPS 121
Ship. Wgt. Low Pressure – LBS 675
