Used 2,000 Gallon Santa Rosa Stainless Steel Jacketed Vertical Tank – 20 PSI MAWP, Three-Zone

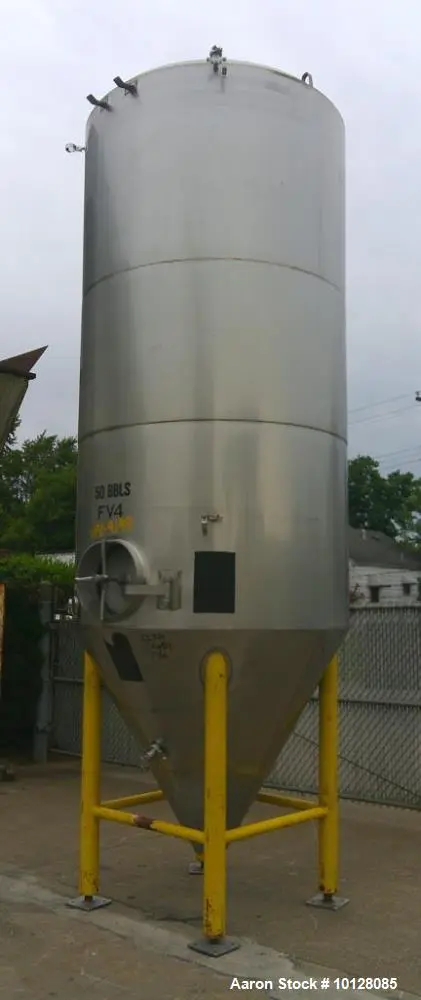

Used 2,000 Gallon Santa Rosa Stainless Steel Jacketed Vertical Tank 20 PSI MAWP, Three-Zone. Overall height is 240" tall on four legs. Main shell is 66" OD x 125" straight side. Long bottom cone has two 1" threaded jacket fittings and one 2" tri clamp bottom fitting. Side has four 1" threaded fittings for the jacket, one 3" tri clamp, one 2" tri clamp, one 16" x 20" elliptical manway and two 1" threaded couplings for probes. Top has 3- 2" tri clamp fittings. Cone length 53" long.

Used Equipment Facts About This Machine
Manufacturer Information:
Manufacturer: Santa Rosa Stainless Steel
Condition: Used
Material: 304 or 316 Stainless Steel (assumed – confirm for application-specific use)
Orientation: Vertical
Mounting: Four-leg support

Description:
This is a used 2,000-gallon Santa Rosa Stainless Steel vertical tank designed with a three-zone jacket capable of 20 PSI MAWP. The tank stands 240" tall and is mounted on four sturdy legs. The cylindrical main shell measures 66" in diameter with a 125" straight side. A long 53" bottom cone features multiple fittings for efficient process and discharge operations. The tank includes various tri-clamp and threaded ports suitable for instrumentation, cleaning, and product transfer, along with an elliptical manway for internal access.

Specifications:

Capacity: 2,000 gallons

Construction Material: Stainless Steel (typically 304/316)

Design: Vertical tank with conical bottom

Jacket: Three-zone, 20 PSI MAWP

Overall Height: 240"

Shell Dimensions: 66" OD x 125" straight side

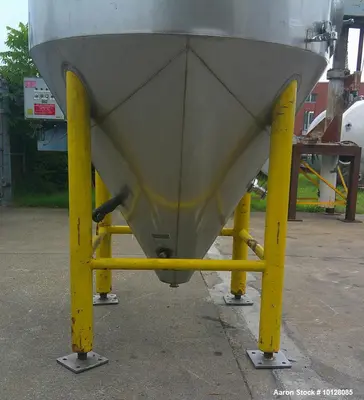

Bottom Cone: 53" long

Bottom Fittings:

Two 1" threaded jacket fittings

One 2" tri-clamp discharge fitting

Side Fittings:

Four 1" threaded jacket ports

One 3" tri-clamp

One 2" tri-clamp

Two 1" threaded probe couplings

One 16" x 20" elliptical manway

Top Fittings:

Three 2" tri-clamp ports

Applications:

Food & Beverage Processing

Winery or Brewery Fermentation

Pharmaceutical Ingredient Mixing

Cosmetic Batch Production

Dairy Storage & Processing

Chemical Blending

Biofuel or Ethanol Storage

Water Treatment Systems

Flavoring & Extract Storage

Botanical Extraction & Processing

What Might This Be Used For:

Fermentation of beverages (beer, wine, kombucha)

Heating or cooling of process materials in food production

Mixing and storage of cosmetic creams and gels

Preparation of pharmaceutical ingredients under controlled temperature

Jacketed heating for chemical blending or reactions

Storage and temperature maintenance of dairy products

Biofuel production and storage

Pre-process holding of botanical extracts

Intermediate storage during food packaging

Ingredient preparation for large-scale kitchens or factories
