USED SWECO LX60C168

🏭 Manufacturer Info

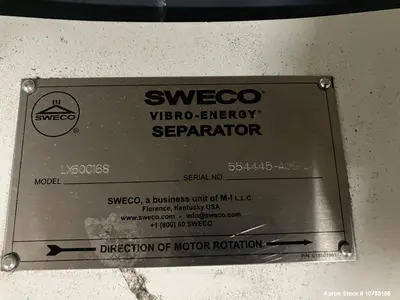

Manufacturer: Sweco (a business unit of M-I L.L.C.)

Model: LX60C168

Type: Low Profile Flow-Thru Screener / Separator

Serial Number: 554445-A-09/24

Year Built: 2024

Condition: Used, good condition

Voltage: 230/460V, 3PH, 60Hz

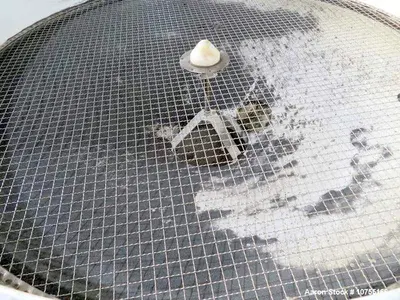

Screen Installed: ¾"

Decks: Single

📄 Product Description

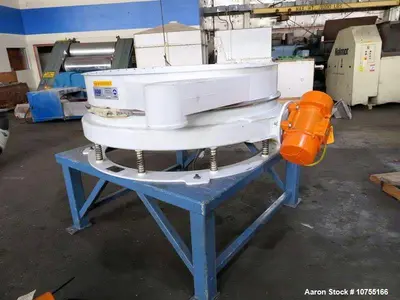

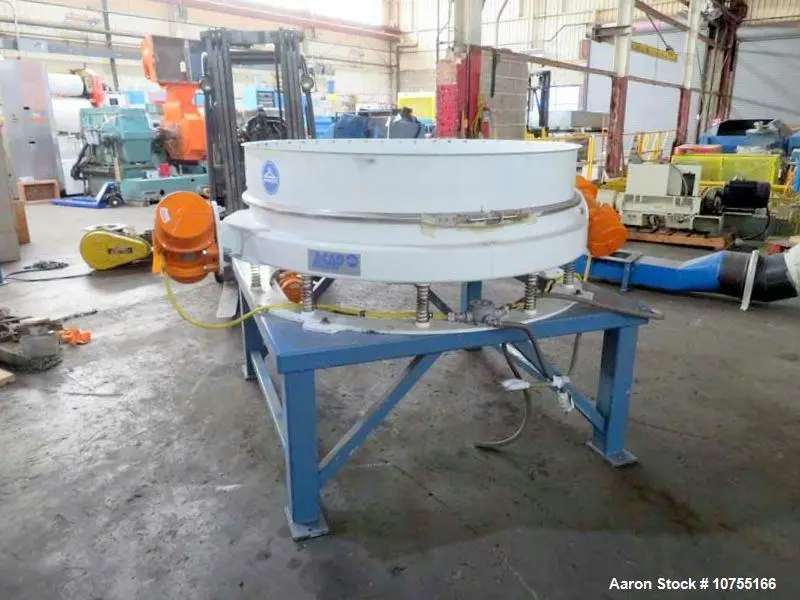

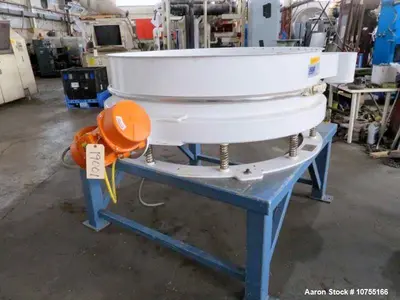

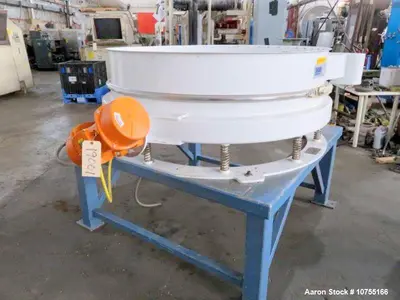

The Sweco Model LX60C168 is a 60-inch single deck low profile flow-thru screener, designed for high-capacity wet or dry scalping in applications where low headroom is essential. Its dual 0.69 HP motors mounted on opposite sides generate a three-dimensional motion, maximizing throughput while keeping the screen clear of clogging material.

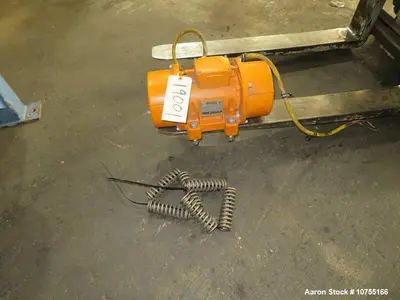

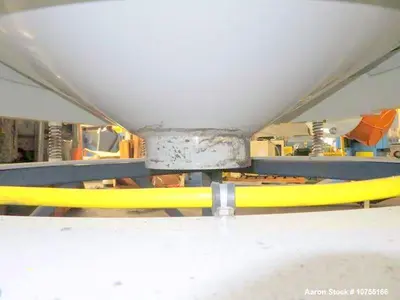

This model features a 12" center bottom outlet and a straight flow design that fits easily into existing lines—no need for expensive process redesigns. Comes with a ¾" screen installed, a used spare motor, and six (6) spare springs. The unit is mounted on a 27” high base and is lidless for quick material access or integration with existing covers.

📐 Specifications

Feature
Specification

Model
LX60C168

Screen Diameter
60 inches

Decks
Single deck

Motor Power

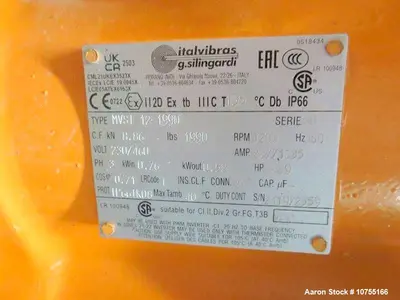

Dual 0.69 HP motors

Screen Installed
¾ inch

Outlet
12” center bottom outlet

Base Height
27 inches

Included Accessories
Spare motor, 6 spare springs

Voltage
230/460V, 3PH, 60Hz

Headroom Requirement
As low as 15 inches

Year Built
2024

Lid
Not included



🧰 Applications

Dry bulk solids scalping (plastics, minerals, resins)

Wet separation of slurries, pulp, and sludges

Powder classification in chemical and pharmaceutical processing

Food-grade particle sizing (flour, sugar, grains)

Metal powders and additive manufacturing feedstock sizing

Ceramics screening

Recycled plastic flakes and regrind sizing

Nutraceutical powder screening

Coatings and pigments separation

Dewatering in wastewater pretreatment

🛠️ What Might This Be Used For?

🔄 Inline scalping and sifting in limited space environments

⚗️ Wet or dry classification of powders and slurries

🏭 Replacing older, taller vibratory separators in existing lines

🧂 Food ingredient screening in low-clearance rooms

🧪 Pilot-scale or batch material screening

🪵 Wood flour and sawdust screening

🧬 Pharmaceutical API sieving

🧴 Plastics extrusion line integration

♻️ Sorting ground plastic flake or pellet blends

🧱 Removing oversize aggregate from fine fillers
