NEW BAKERY EQUIPMENT.COM RV660-ALFT-SSL

Bakery Equipment.com Stainless Steel Oven Racks
Standard Duty (18 Ga. Runner)
Single Side Load Stainless Steel For Revent Rack Single Oven

* All Stainless Steel Construction
* Runners are 18 Ga.
* Fully Mig-Welded on 1″ Seams
* Full Sheet Metal Constructed Caster Plate
* Threaded Inserts for Quick Change Caster Ability
* Frame Assembly is 1″ Square Tube
* 14 Gauge Top Channel For Rugged on/off Carrier Use
* Caster are rated at 440 lbs each
* Casters have 525 Degrees Heat Range
* Casters have a grease-less wheel bearing

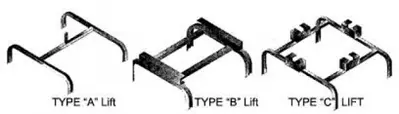

* Dimensions: 28.5″W x 18″D x 71-7/8″H – “A” Lift
                       28.5″W x 18″D x 72″H – “B” Lift
                       28.5″W x 18″D x 73-1/8″H – “C” Lift

Racks are shipped “Knocked Down”, which is the most economical for shipping costs.
 * All slides welded to both sides of the rack, laid into a box with the caster’s attached to the caster plates and all hardware put into a smaller bag along with instructions on how to put together.

Racks can be shipped “Assembled” for an additional charge per rack.
 * Rack is fully assembled with all slides fully welded to the square tubing.

Racks can be shipped “All Welded/Assembled” for an additional $75 increased shipping expense Per Rack.
 * Rack is fully assembled with all slides, bolts and tork screws welded in place.


One Year Warranty on Casters

Standard Duty Racks

MODEL NUMBER
DESCRIPTION – PAN CAPACITY
SPACING
WEIGHT

RV660-2.5-ALFT-SSL
24 Shelves Cap – 18×26 Pan Size
2.5”
100

RV660-3.0-ALFT-SSL
20 Shelves Cap – 18×26 Pan Size
3”
932

RV660-3.5-ALFT-SSL
18 Shelves Cap – 18×26 Pan Size
3.5”
88

RV660-4.0-ALFT-SSL
15 Shelves Cap – 18×26 Pan Size
4”
81

RV660-5.0-ALFT-SSL
12 Shelves Cap – 18×26 Pan Size
5”
74

RV660-6.0-ALFT-SSL
10 Shelves Cap – 18×26 Pan Size
6”
70
