Bakery Equipment.com Stainless Steel Oven Racks
Standard Duty (18Ga. Runner)
Single Side Load Stainless Steel for Hobart Single Rack Oven

* All Stainless Steel Construction
* Runners are 18 Ga.
* Fully Mig-Welded on 1″ Seams
* Full Sheet Metal Constructed Caster Plate
* Threaded Inserts for Quick Change Caster Ability
* Frame Assembly is 1″ Square Tube
* 14 Gauge Top Channel For Rugged on/off Carrier Use
* Caster are rated at 440 lbs each
* Casters have 525 Degrees Heat Range
* Casters have a grease-less wheel bearing

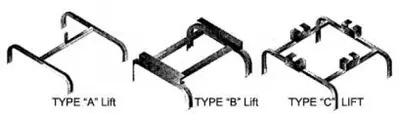

* Dimensions: 28.5″W x 18″D x 71-7/8″H – “A” Lift
 28.5″W x 18″D x 72″H – “B” Lift
 28.5″W x 18″D x 71-1/8″H – “C” Lift

Racks are shipped “Knocked Down”, which is the most economical for shipping costs.
 * All slides welded to both sides of the rack, laid into a box with the caster’s attached to the caster plates and all hardware put into a smaller bag along with instructions on how to put it together.
Racks can be shipped “Assembled” for an additional charge per rack.
 * Rack is fully assembled with all slides fully welded to the square tubing.
Racks can be shipped “All Welded/Assembled” for an additional $75 increased shipping expense Per Rack.
 * Rack is fully assembled with all slides, bolts and tork screws welded in place.


One Year Warranty on Casters




Standard Duty Racks
Order Item Number
Description-Pan Capacities

Wt.

H-00-877660-024B1
24 Shelves Capacity – 18 x 26 Pan Size
2.5”
100

H-00-877660-020B1
20 Shelves Capacity – 18 x 26 Pan Size
3”
93

H-00-877660-018B1
18 Shelves Capacity – 18 x 26 Pan Size
3.5”
88

H-00-877660-015B1
15 Shelves Capacity – 18 x 26 Pan Size
4”
81

H-00-877660-012B1
12 Shelves Capacity – 18 x 26 Pan Size
5”
74

H-00-877660-010B1
10 Shelves Capacity – 18 x 26 Pan Size
6”
70

H-00-877660-008B1*
8 Shelves Capacity – 18 x 26 Pan Size
8”
65



 *Pricing Shown Based on Least Expensive Model (Highlighted Above) – Other Models Priced Out on Order Page – Click on “Get Quote” Button to See Price Increases Per Model.
