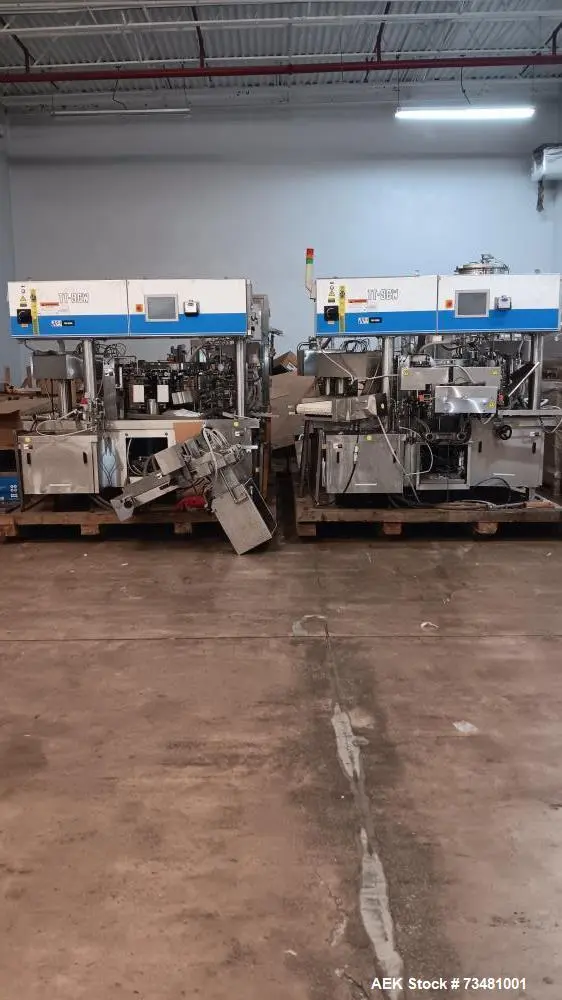

USED TOYO JIDOKI TT9CW

🏭 Manufacturer:
Toyo Jidoki Co., Ltd.
A globally trusted manufacturer of high-performance pouch filling and sealing machines, particularly for food and beverage applications.

📄 Description:
This used Toyo Jidoki Model TT9CW is a high-speed duplex preformed pouch machine designed for flat or stand-up pouch packaging. Capable of 30–80 pouches per minute, it handles pouch sizes from 60mm–130mm wide and 100mm–230mm long, with fill volumes from 50cc to 350cc. The system features 2-up (duplex) operation for enhanced output.
Equipped with versatile turret stations for each process step:

Pouch pick & place into turret clips

Top and bottom pouch opening

Linmont magnetic time pressure filler (ideal for ice cream)

Hybar dual 260cc piston pump fillers (for smoothies)

Two-stage heat sealing

Seal quench

Pouch discharge

Built from all stainless steel, the system is sanitary and durable, operates at 90 PSI, and requires 3-phase, 480V, 60 Hz power. Ideal for liquid and semi-liquid food packaging.

⚙️ Specifications:

Model: TT9CW

Speed: 30–80 pouches per minute

Operation Mode: Duplex (2-up)

Pouch Type: Flat or stand-up preformed

Pouch Width Range: 60mm – 130mm (2.36" – 5.12")

Pouch Length Range: 100mm – 230mm (3.94" – 9.84")

Fill Volume Range: 50cc – 350cc

Fillers Included:

Linmont magnetic time pressure filler (ice cream)

Hybar 2 x 260cc piston pump fillers (smoothies)

Sealing System: Two-stage heat seal + quench

Construction: All stainless steel

Air Requirement: 90 PSI

Electrical: 3 Phase / 480V / 60 Hz

🧰 Applications:
Ideal for liquid and semi-viscous food pouch filling, including:

Ice cream mixes

Fruit smoothies

Yogurt-based drinks

Pureed fruit snacks

Ready-to-drink beverages

Nutritional supplement packs

Dairy or plant-based puddings

Frozen desserts

Sauces or condiments

Baby food in stand-up pouches

📦 What might this be used for?

Filling preformed stand-up pouches with smoothies

Pouching liquid ice cream bases

Automated dairy or plant-based drink packaging

Pouch-filling for frozen dessert production

Compact liquid filling for RTD functional beverages

Foodservice portion pouching for sauces

High-output pouch filling for nutritional or protein drinks

Pouching viscous products in food-grade packaging

Filling purees or fruit blends in resealable pouches

Co-packing semi-liquid foods in flexible formats
