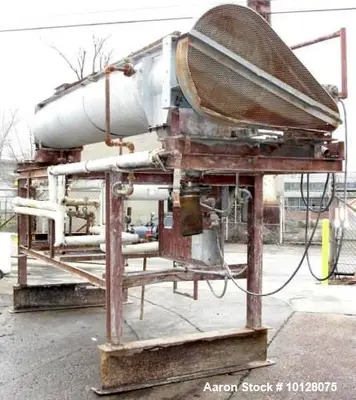

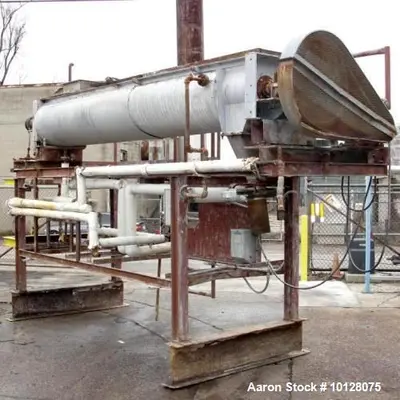

Used Twin Screw Stainless Steel Hollowscrew Dryer. Twin 12" diameter x 128" long screws. Trough is jacketed and insulated. The trough measures 142" long x 20.5" wide x 16" deep. The trough top has a 13.25" x 16" inlet, 6" x 9" inlet, and grating on the rest of the top. 6" diameter flanged outlet with gate valve. Screws are driven by a 1.5 hp 1140 rpm motor through a reducer down to 6.9 rpm. Dryer sits on a carbon steel frame with catwalk and ladder. Overall dimensions are 75" wide x 205" long x 120" tall. Requires 230/460 vac 3 phase electrical supply.

Used Equipment Facts About This Machine
Description:
This twin screw stainless steel hollowscrew dryer is a high-efficiency drying system, designed for thermal drying of bulk materials using indirect heat transfer. The system features two 12” diameter screws, each 128” long, which rotate within a jacketed and insulated trough to maximize heat transfer efficiency and drying uniformity.
The trough measures 142” long x 20.5” wide x 16” deep, with a 13.25” x 16” inlet, a 6” x 9” inlet, and grated sections for controlled material feeding. A 6” diameter flanged outlet with a gate valve allows for precise material discharge.
The screws are driven by a 1.5 HP, 1140 RPM motor, which is geared down through a reducer to 6.9 RPM, ensuring controlled and uniform material movement. The dryer is mounted on a heavy-duty carbon steel frame with an integrated catwalk and ladder for easy access and maintenance.
The system requires a 230/460 VAC, 3-phase electrical supply and is suitable for drying applications in chemical, food, pharmaceutical, and industrial processing.
Specifications:

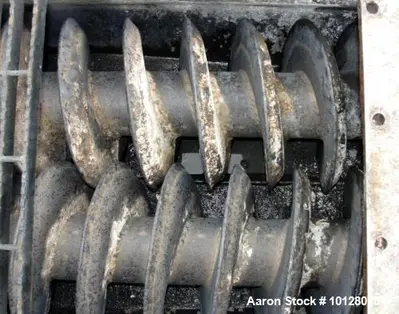

Twin Screws: 12” Diameter x 128” Long

Trough Size: 142” Long x 20.5” Wide x 16” Deep

Trough Features:

Jacketed & Insulated for Indirect Heating

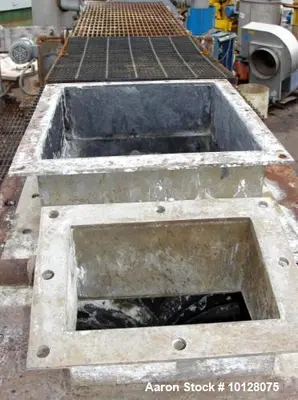

13.25” x 16” Inlet
6” x 9” Inlet

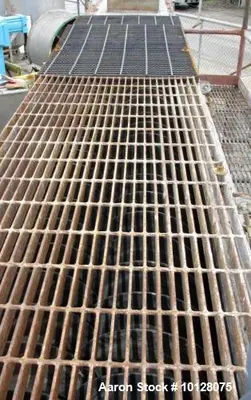

Grated Sections for Controlled Feeding

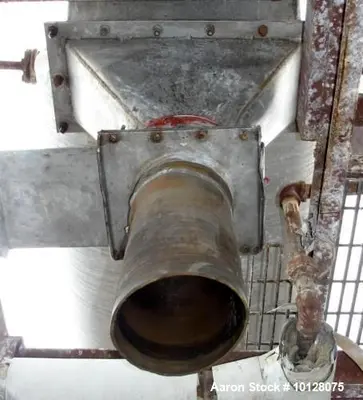

Discharge: 6” Diameter Flanged Outlet with Gate Valve

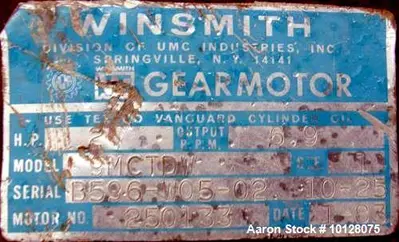

Motor & Speed Reduction:

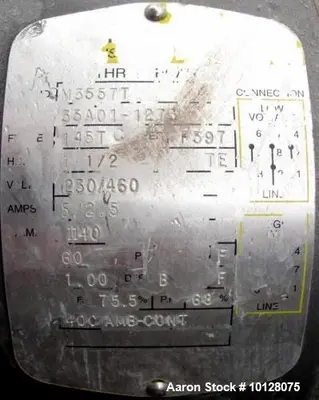

1.5 HP, 1140 RPM Motor
Reducer Down to 6.9 RPM

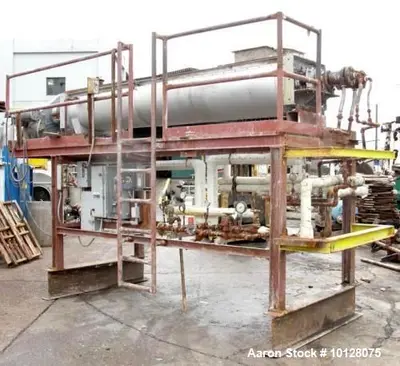

Mounting: Carbon Steel Frame with Catwalk & Ladder

Overall Dimensions: 75” Wide x 205” Long x 120” Tall

Electrical Requirements: 230/460 VAC, 3-Phase

Condition: Used

Applications:
This twin screw hollowscrew dryer is ideal for efficient drying of bulk materials using indirect heat transfer, making it suitable for various industries, including:

Chemical Processing – Drying powders, resins, catalysts, and fine chemicals

Food Processing & Ingredient Drying – Drying grains, proteins, starches, and food additives

Pharmaceutical & Nutraceutical – Drying active ingredients and excipients

Industrial Sludge Drying – Removing moisture from industrial and wastewater sludge

Biomass & Waste Processing – Drying organic materials, sawdust, and biofuels

Pet Food & Animal Feed – Drying grains, meal, and protein-rich ingredients

Plastic & Polymer Processing – Drying plastic pellets, recycled plastics, and synthetic materials

Mineral & Metal Processing – Drying minerals, ores, and fine metal powders

What Products Would This Be Used For?
This hollowscrew dryer is designed for drying and processing:

Industrial sludge & wastewater treatment solids
Chemical powders, resins, and polymer compounds
Food ingredients such as starches, proteins, and meal
Pharmaceutical powders and nutraceutical products
Biomass and organic materials for fuel processing
Plastic pellets and recycled plastic materials
Metal powders, ores, and fine mineral materials
Agricultural products, grains, and animal feed
