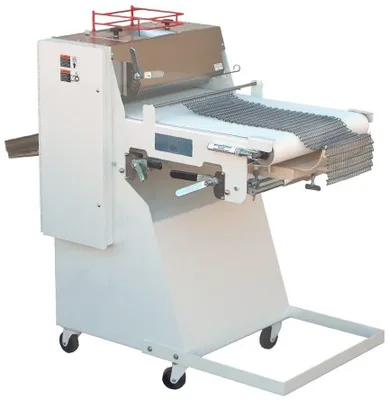

NEW OLIVER 860L-D

Oliver. offers you dough friendly moulders with the patented spring loaded roller system and fully adjustable side guides. This compact design, with the pressure plate underneath the machine, returns the product to you, which makes this unit a one person operation. Moulds up to 4,000 lbs/hr when used with a bread system. These moulders handle the most difficult doughs with up to 15% protein flour as well as traditional artisan breads. The resulting products have superior oven jump and a seamless finish.
SPECIFICATIONS
ROLLERS: 4″ Diameter synthetic rollers and scrapers
BEARINGS: All sealed heavy duty ball bearings
SPROCKETS: Keyway and setscrews.
Totally enclosed roller chain drive
MOTOR: 3/4 HP, heavy duty TEFC motor, 1 Ph/115/230V/60Hz
BELT: FDA approved polyester 860L 24″ wide
SAFETY SYSTEM: Infeed guard bar with automatic shut off
PRESSURE PLATES: 1 per machine included, others available at additional cost. (Specify size)
SHIPPING WEIGHT: 860L Approx. 630 lbs.
DIMENSIONS: 860L 56″ L x 29″ W x 52″ H

OPTIONS
FLAT PRESSURE PLATES: FDA Fabric covered – 35″ long
Curved plates available
860L 3.5″, 4″, 5″, 6.5″, 8″, 9″, 10.5″, 12″, 14″, 16″, 18″, 20″
MOTOR: 6 options available
Specifications subject to change without notice.
