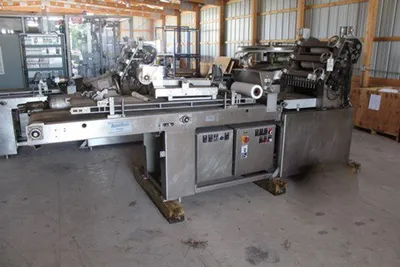

USED PEERLESS S4-FD

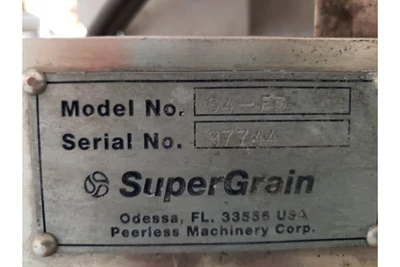

Model: S4-FD
S/N: 97744
Product Range: 2 oz (57 g) – 56 oz (906 g)
Production Rates:
10 oz  – 120 PPM
20 oz  – 100 PPM
30 oz   –  80 PPM
56 oz   –  40 PPM
Drive Motors:
Sheeting Head  1-1/2 HP
Curling Conveyor 3/4 HP
Moulding Conveyor 3 HP
Weight: 3200 Lbs
O.A. Dims: 188-1/4″L x 38-1/2″W x 90″H
230/460V 60Hz 3Ph
Stainless Steel Construction
Features:
* Powered infeed conveyor with adjustable pre-sheeting roller and self centering adjustable side guides.
* Four roller sheeting head with cast iron side frames.
* Gear driven, Teflon coated rollers with solid steel cores.
* Digital indicators on roller adjustments with .001″ accuracy.
* Sheeting head features adjustable front and rear scrapers, and easy open safety guards with interlocks.
* High speed curling conveyor with adjustable curling chain and variable speed up to 350 FPM.
* Insert style pressure board assembly with selfcentering dough side guides and hinged gas/shock lift assist.
* Reinforced stainless steel moulding table with endless moulding belt and variable speed.
* Stainless steel exterior.
* Heavy duty stainless steel sheeting head base.
* Heavy duty externally mounted bearings on conveyor drive and take-up for ease of maintenance.
* Two Vari-flow dusters for sheeting rollers and moulding table.
* Adjustable height mounting pads
* Digital indicators on all handwheel adjustments for ease of set up and repeatability
* NEMA 4 (water tight) stainless steel starter enclosure and operator panel

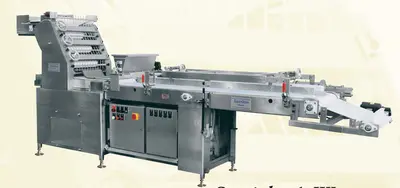

*The heavy duty Model S4-FD Frozen Dough Moulder is a precision sheeting and moulding system designed to handle stiff, low absorption doughs.
$49,500.00 (Clean, Running & Shop Tested)
$44,550.00 (AS-IS)
$74,250.00 (Reconditioned)
