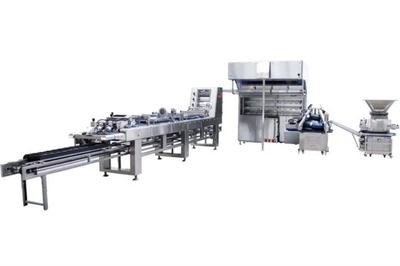

NEW BECOM MFG TBL 3900

This Line Consists Of:
(1) BEcom Dough Divider, Model: CT3.
Or Optional BEcom Dough Divider, Model: CT3 Mega
(1) BEcom Conical Rounder, Coral Model: 2
(1) BEcom Industrial Intermediate Proofer, Model: CS672
(1) BEcom Dough Moulder, Model:Advanced
BEcom Dough Divider, Model: CT3.
– Ni-Resistant Material For Dividing Chamber, Main Piston, Measuring Piston, And Hopper Base. (Resistant To Wear, Corrosion, And Oxidation.)
– Cast Iron Crank Shaft.
– Knife-Hardened Steel.
– BEKA-Groeneveld Brand Oiling Pump With 8 Fixed Dosing Valves.
– 160 kg (352.74 lbs) Stainless Steel Drop Hopper Volume.
– Stainless Steel Panels Encompassing The Machine.
– Analog Weight Adjustment With Position Indicator.
– Analog Spring Pressure Adjustment With Position Indicator.
– Variable Speed Adjustment Via An Inverter For Main Cutting, Main Conveyor And Transport Conveyor.
– 7-Liter Capacity Stainless Steel Oil Reservoir.
– Alert For Insufficient Oil Supply.
– Detachable Discharge Conveyor For Convenient Cleaning.
– Specify The Left Or Right-Hand Side Of The Cross Discharge Conveyor When Ordering.
– Belt Oiling Mechanism
– Electronic Piece Counter
– Magnetic Safety Sensor
– Electromechanical / Digital Control Panel
– 3.52 – 22.92 oz ( 100 – 650g) 3900 Pcs/Hr
MODEL
CAPACITY RANGE
WEIGHT RANGE
NO. OF PISTONS
WEIGHT
O.A. DIMS
VOLTAGE

 CT3
Up to 3900 pcs/hr
3.5oz to 22.92oz
 3
 1985 lbs
 47.83″L x 84.33″W x 70.65″H
220v 60Hz 3Ph
Amps: 5

BEcom Industrial Conical Rounder, Coral Model: 2
– Frame And Surrounding Panels Entirely Made Of Stainless Steel.
– Teflon-Coated Cast Iron Cone.
– 4,1 Meter Rounding Length Cast Aluminum Tracks. (Both Inside And Outside Are Teflon Coated.)
– Teflon-Coated Cast Aluminum Crumb Collection Tray.
– Teflon-Coated Cast Aluminum Outfeed Chute.
– Inverter-Controlled Speed For The Cone.
– Cone Equipped With Top Bearing.
– Round Head Cover Made Of Stainless Steel.
– Flour Duster
– Stainless Steel Swivel Castors With Mounting Pins.
– Electromechanical Control panel.
CAPACITY
RANGE
WEIGHT
RANGE
DIMENSIONS
L x W x H
 WEIGHT
 POWER

Up to 3900
pcs/hr
3.17oz to 52.91oz
46.65″ x 46.65″ x 57.28″
1322 lbs
220V/ 3Ph/60Hz
4.55 AMPS

BEcom Industrial Intermediate Proofer, Model: CS672:
– Stainless steel frame and swings throughout.
– Modular, Unmounted System.
– Nylon-mesh round pockets, easily removable for cleaning. accommodating weights from 3.52oz – 44.09oz (100 to 1250) grams.
– Standard 10 modulated pockets on swings for all models.
– Infeed conveyor with photocell control and continuous drive.
– Flour Duster On The Infeed Conveyor.
– Adjustable collection drawers for resting dough, allowing for the desired proofing time before the dough piece exits.
– Outfeed cross conveyor.
– Sychronized Speed Controller Aligned With The Divider.
– Electrical cabinet positioned at working height, equipped with power supply and sockets for divider, rounder, and moulder.
– Air circulation fan and UV lighting.
– Flexible layout options, specifying infeed position
– right or left side, front or rear, required when placing an order.
– Electromechanical control panel.
POCKETS
QUANTITY
CAPACITY
DIMENSIONS
L x W x H
WEIGHT
POWER
INFEED
PROOFING TIME

672 pcs
1200-3900 pcs max/hr
111.22” x 129.33″x 145.07″
6393 lbs
220V/ 3Ph/60Hz
6.7 AMPS

11.50 to 17 minutes

BEcom Inline Industrial Moulder/Panner, Model: Advanced:
– Full Stainless Steel Construction For Both Frame And Surrounding Panels.
– Fully Automated Twisting And Panning Process.
– Option To Bypass The Twisting Station For Open Loaves.
– Utilizes A Clean Line Belt In Blue Color, Coated With Polyolefin Material.
– Cutting Station For Both Complete And Partial Cutting.
– Stainless Steel Discharge Belt For Seamless Transfer Of Loaves Into The Tins.
– Integrated Infeed Conveyor System.
– Centering Rollers On The Infeed Conveyor, Adjustable For Precision.
– Three Pairs Of Adjustable Rollers With Position Indicators.
– Speed Adjustment Facilitated By A Frequency Inverter.
– Adjustable Wire Belt For Pre-molding, Separate Enhanced Control.
– Individual Pressure Board Speed Adjustment Via Frequency Inverter.
– Combined Pressure Boards, Both Fixed And Motorized, With Adjustable Height
– Air-Blowing Fans Installed On Sheeting Rollers, Pre-molding Belt And Pressure Boards.
– Parallel Adjustable Side Guides To Ensure Consistent Loaf Lengths
CAPACITY
RANGE
WEIGHT
RANGE
DOUGH LENGTH
 WEIGHT
 POWER

Up to 3900
pcs/hr
7.05oz to 42.32oz
Up to 15 inches
3892 lbs
220V/ 3Ph/60Hz

Due to the fluctuating rate of the Euro we will be quoting these units on a needed basis.  To receive a quote with pricing please click the “Get Quote” button now.
