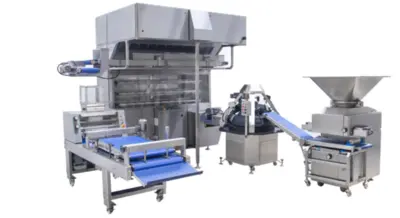

NEW BECOM MFG UNI 2600

This line consists of:
(1) BEcom Dough Divider, Model: CT2
(1) BEcom Industrial Conical Rounder, Coral Model: 2
(1) BEcom Industrial Intermediate Proofer, Model: CS352 Or, Optional BEcom Industrial Intermediate Proofer, Model: CS480
(1) BEcom Long Moulder, Model: Ocean B Or Optional BEcom Long Moulder. Model: Ocean M
Total capacity: 2400 pcs/h

BEcom Dough Divider, Model: CT2
FEATURES:
– Dividing chamber, main piston, measuring piston, hopper base made of Ni-Resist material (wear-corrosion and oxidant resistant).
– Crankshaft made from cast iron.
– BEKA brand oiling pump with 6 fixed dosing valves.
– Drop hopper has a volume of 55 gallons and made from stainless steel.
– Outer covers made of stainless steel.
– Analog weight adjustment with position indicator.
– Analog pressure adjustment of spring with position indicator.
– Variable speed inverter.
– 1.8-gallon oil reservoir, stainless steel indicator of insufficient oil supply.
– Cross discharge conveyor, (left or right hand side must be specified when placing order.)
MODEL
CAPACITY RANGE
WEIGHT RANGE
NO. OF PISTONS
WEIGHT
O.A. DIMS
VOLTAGE

 CT2
Up to 2600 pcs/hr
 3.88oz to 42.32oz
 2
 1985 lbs
 47.83″L x 84.33″W x 70.65″H
220v 60Hz 3Ph
Amps: 5

BEcom Industrial Conical Rounder, Coral Model: 2
FEATURES:
– Fully stainless-steel frame and surrounding panels
– Cast iron Teflon coated cone
– Aluminum tracks, in and outside Teflon coated
– Cast aluminum crumb collection tray, Teflon coated
– Cone speed controller by inverter
– Cone with top bearing
– Stainless steel round head cover
– Automatic flour duster
– Stainless steel swivel castors with mounting pins
– Easy in operation and cleaning
– Perfect separation between dough pieces coming from the divider
– Perfect transfer of dough pieces with outfeed chute
CAPACITY
RANGE
WEIGHT
RANGE
DIMENSIONS
L x W x H
 WEIGHT
 POWER

1200 Up to 3900
pcs/hr
3.17oz to 52.91oz
46.65″ x 46.65″ x 64.56″
1322 lbs
220V/ 3Ph/60Hz
4.55 AMPS

BEcom Industrial Intermediate Proofer, Model: CS352
FEATURES:
– Fully stainless-steel frame, swings and surrounding panels modular system – unmounted
– Nylon-mesh round pockets, easy to remove for cleaning
– 10 pocket modulated standard in all models on swings
– infeed conveyor, with photocell control with continuous drive. Flour duster on infeed conveyor
– Collection drawers for adjustable resting time, to able to exit of dough pieces as refer desired proofing time
– Outfeed cross conveyor
– Synchronized speed controller with the divider
– Electrical cabinet at working height with power supply and sockets for divider, rounder and moulder
– Air circulation fan
– UV lightening
– Flexible layout with the choice of infeed position; side right or left and front or rear must be specified with the order.
– Electrotechnical control panel
POCKETS
QUANTITY
CAPACITY
DIMENSIONS
L x W x H
WEIGHT
POWER
INFEED
PROOFING TIME

352 pcs
1200-2400 pcs max/hr
83.66” x 129.33″x 121.06″
4409 lbs
220V/ 3Ph/60Hz
6.7 AMPS
Single
8.50 to 11.50 minutes

BEcom Long Moulder, Model: Ocean B
FEATURES:
– Robust Stainless Steel Frame And Adjacent Panels.
– Centrally Adjustable Inlet Hopper Ensures Consistent And Precise Positioning Of The Dough
Pieces.
– Dual Set Of Adjustable Pressure Rollers, Equipped With Position Indicators And Scrapers To
Prevent Adhesion.
– Stainless Steel Wire Belt For Preliminary Shaping.
– Collection Tray Coated With Teflon For Easy Cleaning.
– Parallel adjustable Side Guides Made Of Stainless Steel With Turnable Handles.
– Height-Adjustable Non-Stick Fixed Pressure Board, Folded Upright Via A Dashpot Mechanism.
– Utilizes A Clean Line Belt In Blue Color, Coated With Polyolefin Material.
– Height Adjustable Wheels With Brakes For Convenient Mobility.
CAPACITY
RANGE
WEIGHT
RANGE
MAX DOUGH LENGTH
 WEIGHT
 POWER

Up to 2400
pcs/hr
3.52oz to 70.54oz
Up to 19.68″
1763 lbs
220V/ 3Ph/60Hz
3 AMPS

Due to the fluctuating rate of the Euro we will be quoting these units on a needed basis.  To receive a quote with pricing please click the “Get Quote” button now.
