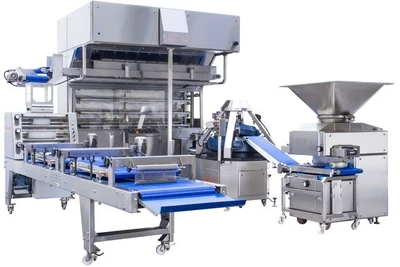

NEW BECOM MFG UNI 3900

This Line Consists Of:
(1) BEcom Dough Divider, Model: CT3.
Or Optional BEcom Dough Divider, Model: CT3 Mega
(1) BEcom Conical Rounder, Coral Model: 1
(1) BEcom Industrial Intermediate Proofer, Model: CS672
(1) BEcom Dough Moulder, Model: Ocean Combi
Or Optional BEcom Dough Moulder, Model: Ocean Combi Sharp

BEcom Dough Divider, Model: CT3
Features:
– Ni-Resistant Material For Dividing Chamber, Main Piston, Measuring Piston, And Hopper Base. (Resistant To Wear, Corrosion, And Oxidation.)
– Cast Iron Crank Shaft.
– Knife-Hardened Steel.
– BEKA-Groeneveld Brand Oiling Pump With 8 Fixed Dosing Valves.
– 160 kg (352.74 lbs) Stainless Steel Drop Hopper Volume.
– Stainless Steel Panels Encompassing The Machine.
– Analog Weight Adjustment With Position Indicator.
– Analog Spring Pressure Adjustment With Position Indicator.
– Variable Speed Adjustment Via An Inverter For Main Cutting, Main Conveyor And Transport Conveyor.
– 7-Liter Capacity Stainless Steel Oil Reservoir.
– Alert For Insufficient Oil Supply.
– Detachable Discharge Conveyor For Convenient Cleaning.
– Specify The Left Or Right-Hand Side Of The Cross Discharge Conveyor When Ordering.
– Belt Oiling Mechanism
– Electronic Piece Counter
– Magnetic Safety Sensors
– Electromechanical / Digital Control Panel
– 3.52oz – 22.92oz (100 – 650g) 3900 PPH
MODEL
CAPACITY RANGE
WEIGHT RANGE
NO. OF PISTONS
WEIGHT
O.A. DIMS
VOLTAGE

 CT3
Up to 3900 pcs/hr
3.5oz to 22.92oz
 3
 1985 lbs
 47.83″L x 84.33″W x 70.65″H
220v 60Hz 3Ph
Amps: 5

BEcom Industrial Conical Rounder, Coral Model: 1
Features:
– Frame And Surrounding Panels Entirely Made Of Stainless Steel.
– Teflon-Coated Cast Iron Cone.
– Cast Aluminum Tracks. (Both Inside And Outside Are Teflon Coated.)
– Teflon-Coated Cast Aluminum Crumb Collection Tray.
– Teflon-Coated Cast Aluminum Outfeed Chute.
– Inverter-Controlled Speed For The Cone.
– Cone Equipped With Top Bearing.
– Round Head Cover Made Of Stainless Steel.
– Flour Duster.
– Stainless Steel Swivel Castors With Mounting Pins.
– Electromechanical Control panel.
– Infeed 3 O’clock, Outfeed 12 O’clock
– Track Length Of 161.41″ (4100mm)
CAPACITY
RANGE
WEIGHT
RANGE
DIMENSIONS
L x W x H
 WEIGHT
 POWER

Up to 3900
pcs/hr
3.17oz to 52.91oz
46.65″ x 46.65″ x 57.28″
1322 lbs
220V/ 3Ph/60Hz
4.55 AMPS

BEcom Industrial Intermediate Proofer, Model: CS672
– Stainless steel frame and swings throughout.
– Modular, Unmounted System.
– Nylon-mesh round pockets, easily removable for cleaning. accommodating weights from 3.52oz – 44.09oz (100 to 1250) grams.
– Standard 10 modulated pockets on swings for all models.
– Infeed conveyor with photocell control and continuous drive.
– Flour Duster On The Infeed Conveyor.
– Adjustable collection drawers for resting dough, allowing for the desired proofing time before the dough piece exits.
– Outfeed cross conveyor.
– Sychronized Speed Controller Aligned With The Divider.
– Electrical cabinet positioned at working height, equipped with power supply and sockets for divider, rounder, and moulder.
– Air circulation fan and UV lighting.
– Flexible layout options, specifying infeed position – right or left side, front or rear, required
when placing an order.
– Electromechanical control panel.
POCKETS
QUANTITY
CAPACITY
DIMENSIONS
L x W x H
WEIGHT
POWER
INFEED
PROOFING TIME

672 pcs
1200-3900 pcs max/hr
111.22” x 129.33″x 145.07″
6393 lbs
220V/ 3Ph/60Hz
6.7 AMPS

11.50 to 17 minutes

BEcom Industrial Dough Moulder, Model: Ocean Combi
Features:
– Robust Stainless Steel Construction For The Frame And Surrounding Panels.
– Central Infeed Hopper, Easily Adjustable For Precise And Consistent Dough Placement.
– Three Sets Of Non-Stick Pressure Rollers With Position Indicators And Scrapers To Prevent
Adhesion.
– Stainless Steel Wire Belt For Preliminary Shaping.
– Utilizes A Clean Line belt In Blue Color, Coated With Polyolefin Material.
– Parallel Adjustable Side Guides Made Of Stainless Steel, Equipped With Turnable Handles.
– Two Motorized Pressure Boards Featuring Speed Controllers.
– Main Drive With A Speed Controller For Optimal Performance.
– Stainless Steel Discharge Belt For Seamless Dough Transfer Into The Tins.
– Height-Adjustable Wheels With Brakes For Effortless Mobility.
– Electromechanical Control Unit For Operational Control.
CAPACITY
RANGE
WEIGHT
RANGE
DOUGH LENGTH
 WEIGHT
 POWER

Up to 3900
pcs/hr
3.52oz to 70.54oz
Up to 23.5 inches
1764 lbs
220V/ 3Ph/60Hz

Due to the fluctuating rate of the Euro we will be quoting these units on a needed basis.  To receive a quote with pricing please click the “Get Quote” button now.
