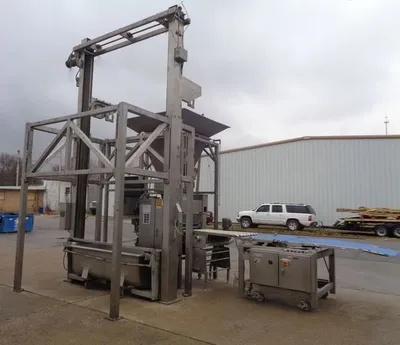

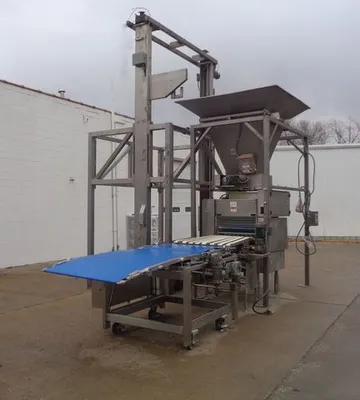

8 Row WP TWS Roll Line System – 2009yr

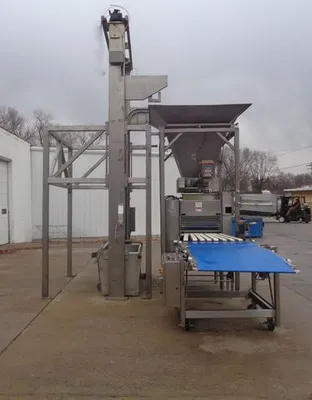

This Line Consists Of:
1) Dough Trough Lift
1) Dough Chunker
1) TWS Dough Divider
1) Spreader Belt
1) Straight Conveyor

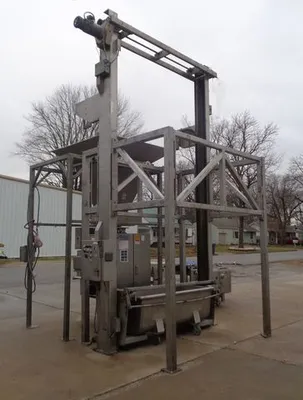

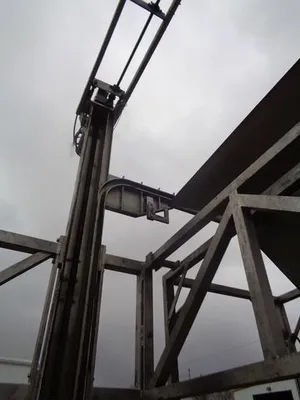

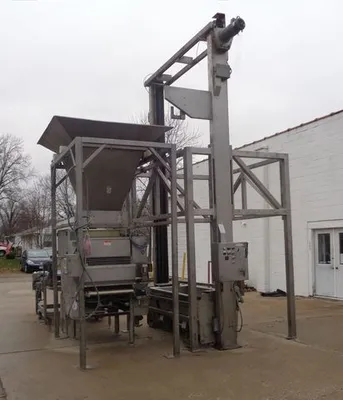

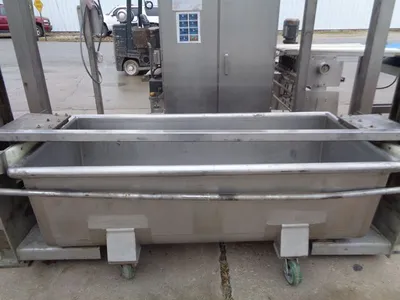

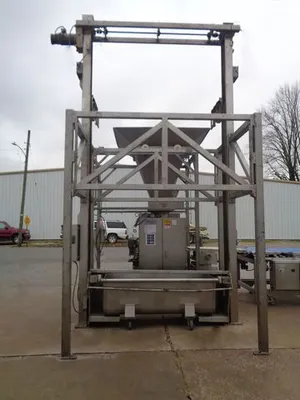

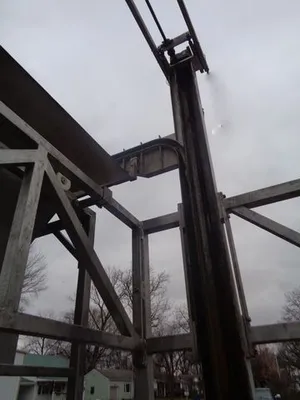

Dough Trough Lift:
Dump Height: 145-1/4″
For Dough Troughs
Square Tubular Stainless Steel Frame

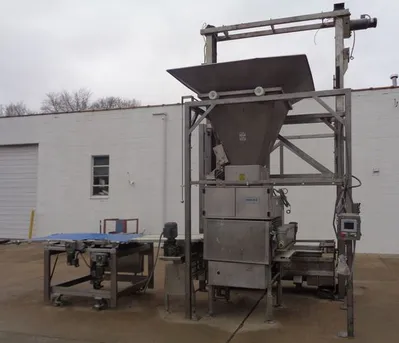

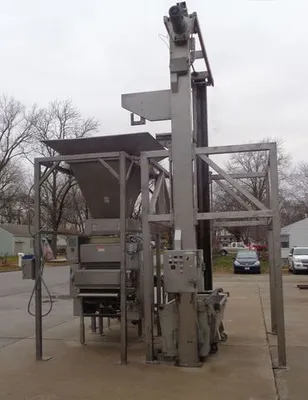

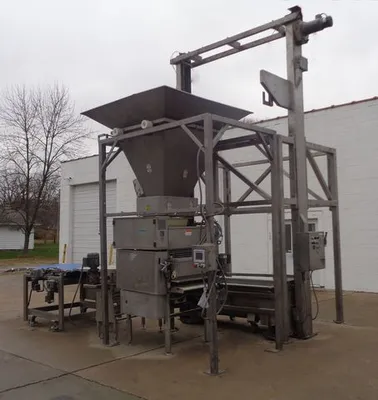

Dough Chunker With Hopper:
Hopper Capacity: 1500 lbs
Hopper Top: 73-3/4″
Hopper Base: 10″ x 23″
O.A. Dims: 61-3/8″L x 145-1/4″H
Stainless Steel Construction
480V 60Hz 3Ph 15 Amps

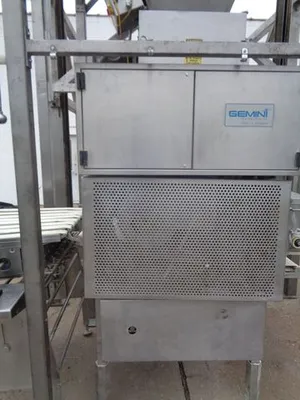

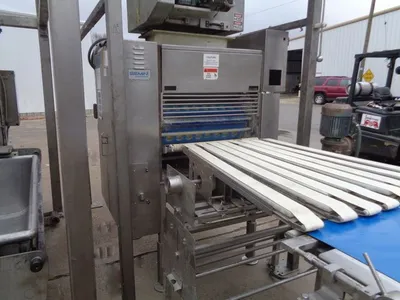

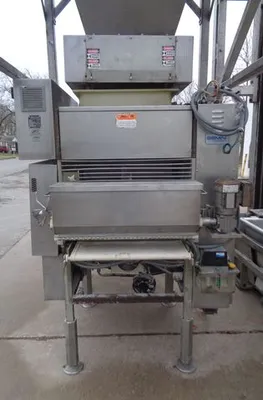

Dough Divider:
Model: TWS-HD-BB Divider
Plastic Hopper
AC Frequency Inverter Variable Speed
Fixed Speed Rounder Drive
(1) MU-60 (8) Pocket Measuring Unit
Strokes per min 20 – 50
Pieces per min 160 to 400
KB Flour Duster For Divider
KB Flour Duster At Discharge
(3) Solid Outer Drums: One For 56g – 63g and Two For 140g – 157g
(1) Inner Rounding Drum
(8) 1.41″ Pistons In Stainless Steel Sleeves
System Is Curently Set Up To Run: 42.52g – 82.21g
Stainless Steel Covers
Stainless Steel Construction
480V 60Hz 3Ph 20 Amps

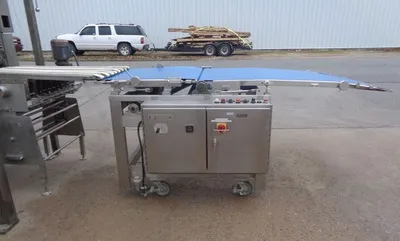

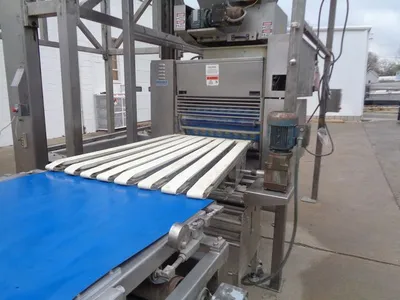

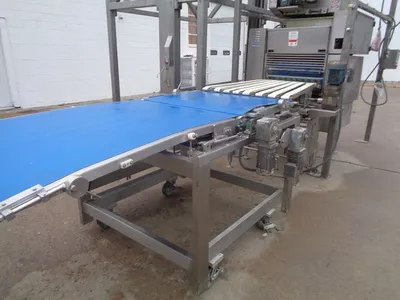

Spreader Belt:
(8) Rows
70″ Long Belts
Independent Drive
7-1/2″ Elevated Base
Stainless Steel Construction

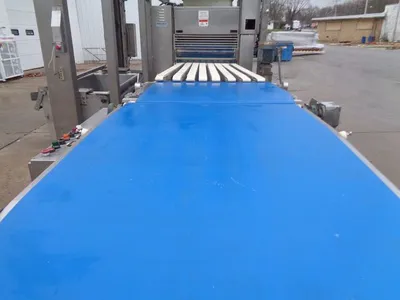

Straight Conveyor:
Stainless Steel Construction
Mounted On A Stainless Steel Frame
$84,700.00 (Clean, Running & Shop Tested)
$76,230.00 (AS-IS)
$127,050.00 (Reconditioned)
