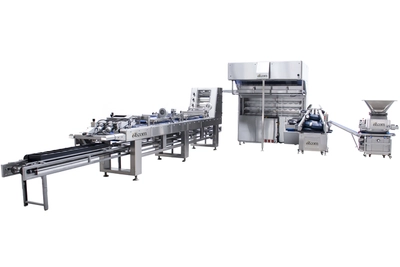

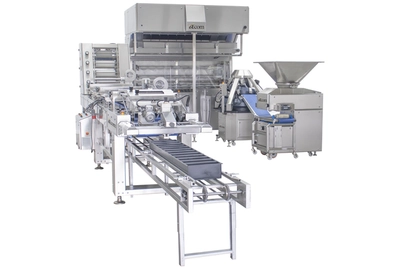

NEW BECOM MFG TBL 2600

This Line Consists Of:
(1) BEcom Dough Divider, Model: CT2.
(1) BEcom Conical Rounder, Coral Model: 1
(1) BEcom Industrial Intermediate Proofer, Model: CS480 Or Optional BEcom
Industrial Intermediate Proofer, Model: CS672
(1) BEcom Industrial Moulder/Panner, Model: Advanced
Up to 2,600pcs/hr dough weight range between 3.88oz-42.32oz

Dough Divider, Model: CT2:
– Dividing chamber, main piston, measuring piston, hopper base made of Ni-Resist material (wear-corrosion and oxidant resistant).
– Crankshaft made from cast iron.
– BEKA brand oiling pump with 6 fixed dosing valves.
– Drop hopper has a volume of 55 gallons and made from stainless steel.
– Outer covers made of stainless steel.
– Analog weight adjustment with position indicator.
– Analog pressure adjustment of spring with position indicator.
– Variable speed inverter.
– 1.8 gallon oil reservoir, stainless steel indicator of insufficient oil supply.
– Cross discharge conveyor, (left or right hand side must be specified when placing order.)
MODEL
CAPACITY RANGE
WEIGHT RANGE
NO. OF PISTONS
WEIGHT
O.A. DIMS
VOLTAGE

 CT2
Up to 2600 pcs/hr
 3.88oz to 42.32oz
 2
 1985 lbs
 47.83″L x 84.33″W x 70.65″H
220v 60Hz 3Ph
Amps: 5

Industrial Conical Rounder, Coral Model: 1:
– Fully stainless-steel frame and surrounding panels
– Cast iron Teflon coated cone
– Aluminum tracks, in and outside Teflon coated
– Cast aluminum crumb collection tray, Teflon coated
– Cone speed controller by inverter
– Cone with top bearing
– Stainless steel round head cover
– Automatic flour duster
– Stainless steel swivel castors with mounting pins
– Easy in operation and cleaning
– Perfect separation between dough pieces coming from the divider
– Perfect transfer of dough pieces with outfeed chute
CAPACITY
RANGE
WEIGHT
RANGE
DIMENSIONS
L x W x H
 WEIGHT
 POWER

Up to 3900
pcs/hr
3.17oz to 52.91oz
46.65″ x 46.65″ x 57.28″
1322 lbs
220V/ 3Ph/60Hz
4.55 AMPS

Industrial Intermediate Proofer, Model: CS480:
– Fully stainless-steel frame, swings and surrounding panels modular system – unmounted
– Nylon-mesh round pockets, easy to remove for cleaning
– 10 pocket modulated standard in all models on swings
– infeed conveyor, with photocell control with continuous drive. Flour duster on infeed conveyor
– Collection drawers for adjustable resting time, to able to exit of dough pieces as refer desired proofing time
– Outfeed cross conveyor
 Synchronized speed controller with the divider
– Electrical cabinet at working height with power supply and sockets for divider, rounder and moulder
– Air circulation fan
– UV lightening
– Flexible layout with the choice of infeed position; side right or left and front or rear must be specified with the order.
– Electrotechnical control panel
POCKETS
QUANTITY
CAPACITY
DIMENSIONS
L x W x H
WEIGHT
POWER
INFEED
PROOFING TIME

480 pcs
1200-3900 pcs max/hr
83.66” x 129.33″x 145.07″
5291 lbs
220V/ 3Ph/60Hz
6.7 AMPS
dual
8 to 12 minutes

Inline Industrial Moulder/Panner, Model: Advanced:
– Fully stainless-steel frame and surrounding panels
– Fully automatic twisting and panning
– Bypass of twisting station for open loaves
– Blue color cleanline belt, coated with polyolefin material
– Knife station for complete and partial cutting
– Discharge stainless steel belt to transfer loaves
– Infeed conveyor
– Adjustable centering rollers on infeed conveyor
– Driven pressure roller adjustable by position indicator
– 3 pairs of adjustable sheeter and gear drive on rollers
– Adjustable speed by frequency inverter
– Adjustable wire belt for pre-molding with separated conveyor
– Individually adjustable conveyor speed by frequency inverter
– Height adjustable fixed and motorized-conveyed combined pressure boards
– Air blowing fans on sheeting rollers, pre-molding belt and pressure board
– Parallel adjustable side guides to fix length of loaves
CAPACITY
RANGE
WEIGHT
RANGE
DOUGH LENGTH
 WEIGHT
 POWER

Up to 3900
pcs/hr
7oz to 42oz
Up to 15 inches
3892 lbs
220V/ 3Ph/60Hz

Due to the fluctuating rate of the Euro we will be quoting these units on a needed basis.  To receive a quote with pricing please click the “Get Quote” button now.
