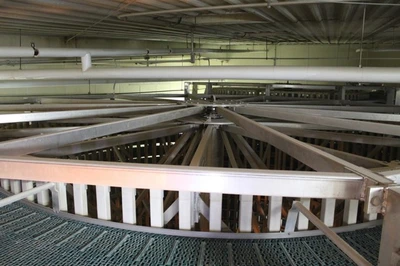

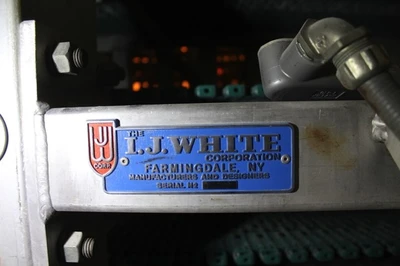

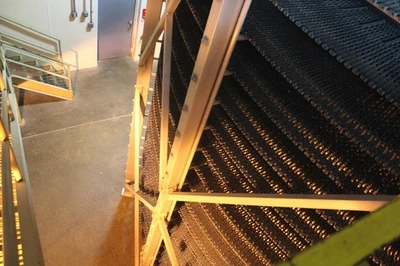

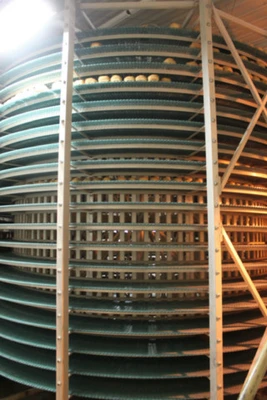

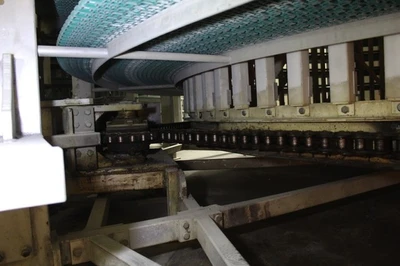

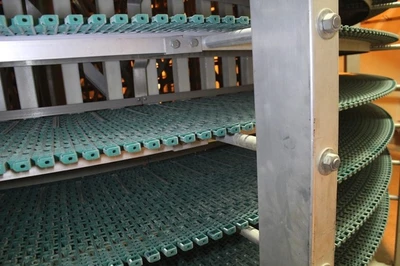

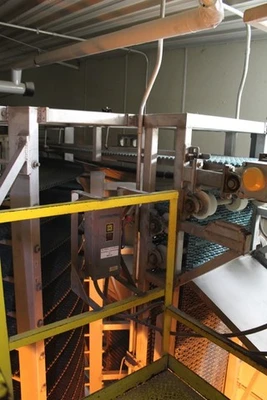

I.J. White Spiral Cooling Conveyor
Overview
Number Of Tiers: 19
Tier Pitch: 9-1/2″
Product Clearance: 6-3/4″
Overall Belt Width: 25-3/4″
Usable Belt Width: 24″
Belt Type: Intralox
Approximate Overall Active Feed Of Belt: 1250′
In High, Out Low

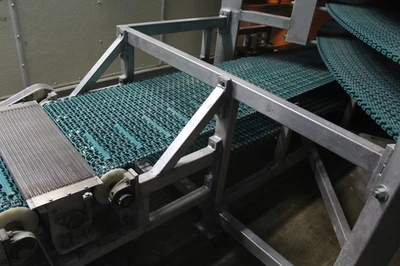

Infeed Length: 10′- 10-1//4″
Infeed Height: 17.67′
Discharge Length: 10′ – 10-1/4″
Discharge Height: 24-1/2″
Rotation Of Cage: Counter Clockwise
Specs
O.A. Dims: 22′ Diameter x 19’H (16.2′ Inside Diameter)
Motor Specs: 230/460V Powered From 480V

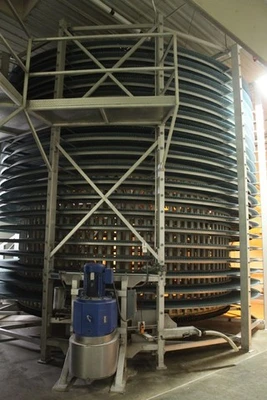

HP Cage Motor: 10 HP SEW, 1160 RPM

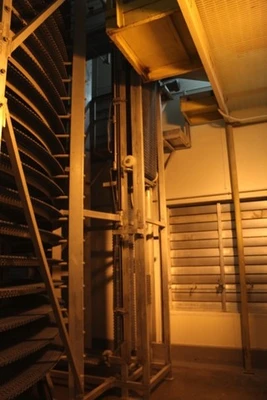

HP Take Up Motor: 1.5 HP
Frame Construction: Aluminum
**Note: A custom electrical control panel can be built to suit, at an additional cost**
