NEW PIPER 723

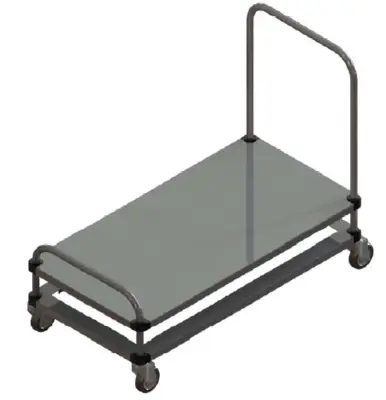

PIPER Tray Cart
Model 723




Features:
Frame is constructed of 1″ O.D. 16 gauge stainless steel tubing, with 3/4″ O.D. integrally welded cross rails for rigidity.

Platform is constructed of 18 gauge stainless steel with raised die-formed “V” edges and all four sides flanged down for 1-1/4″ rigidity.

All corners are notched to the contour of and welded to the tubular frame to form a unitized assembly.

The platform is set 12″ above the floor.

Tray units include a vertical tray stop.

Units are mounted on four 4″ diameter heavy duty, double ball bearing swivel casters with non-marking rubber tires.

Sized for two stacks of 20″ x 20″ trays.

Options:
Y4 – Polyurethane 4″ casters, set of 4, with ball bearing seals

Y5 – Polyurethane 5″ casters, set of 4, with ball bearing seals



Model Dimensions Capacity Ship Wt
723 43″L x 22″W x 36″H Two stacks of 20″ x 20″ trays
65 lbs.
