NEW SCHAFFNER FN3258-100-35

USD $200.00
1 available
Overview
Manufacturer:
SCHAFFNER
Stock #:
IGAM1050116
Description

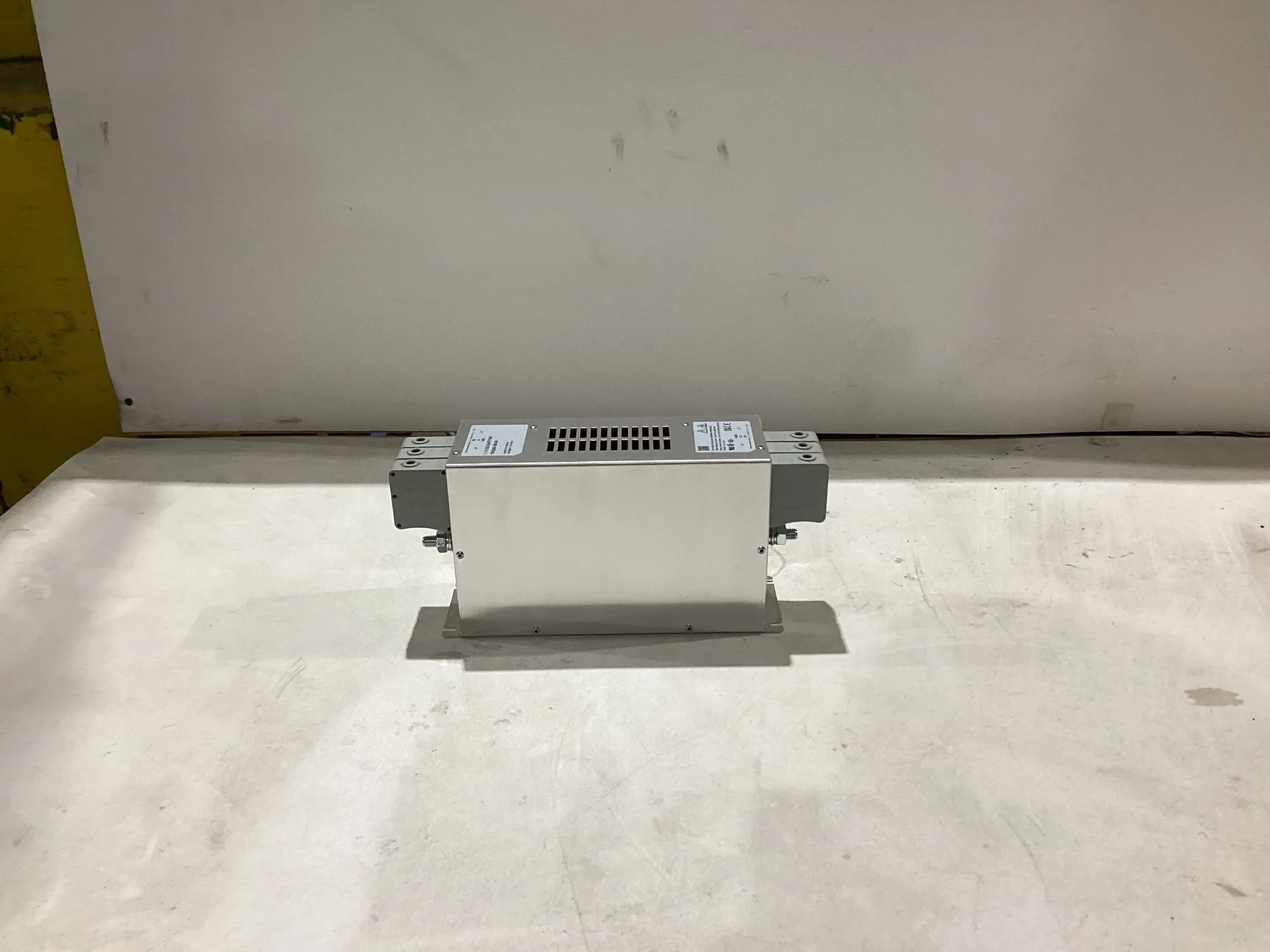

This listing is for a USED Schaffner FN3258‑100‑35 line filter.

SCHAFFNER’s ultra‑compact 3‑phase line filter mitigates EMI/RFI on motor‑drive applications up to 100 A and 480 VAC input. Ideal for variable‑speed drives, inverters, UPS, HVAC systems, and power‑conversion panels.

See photos for details.

Part No: FN3258‑100‑35
Type: 3‑Phase EMC/RFI Line Filter
Condition: USED
Rated current: 100 A @ 50 °C
Rated voltage: 480 VAC phase‑to‑phase, 277 VAC phase‑to‑ground
Leakage current: ~33 mA
Power loss: ~34.5 W
Operating freq: DC–60 Hz
Mounting: Chassis‑mount terminal block

Specifications
Dimensions6X13X46X13X4
Weight9 LBS9 LBS
