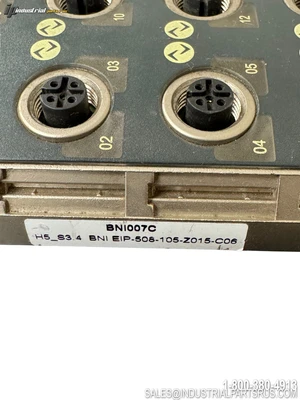

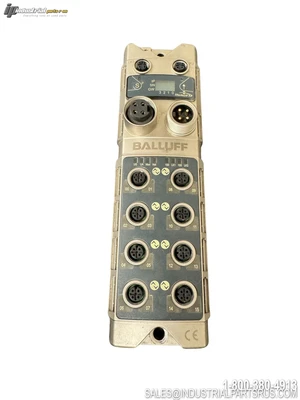

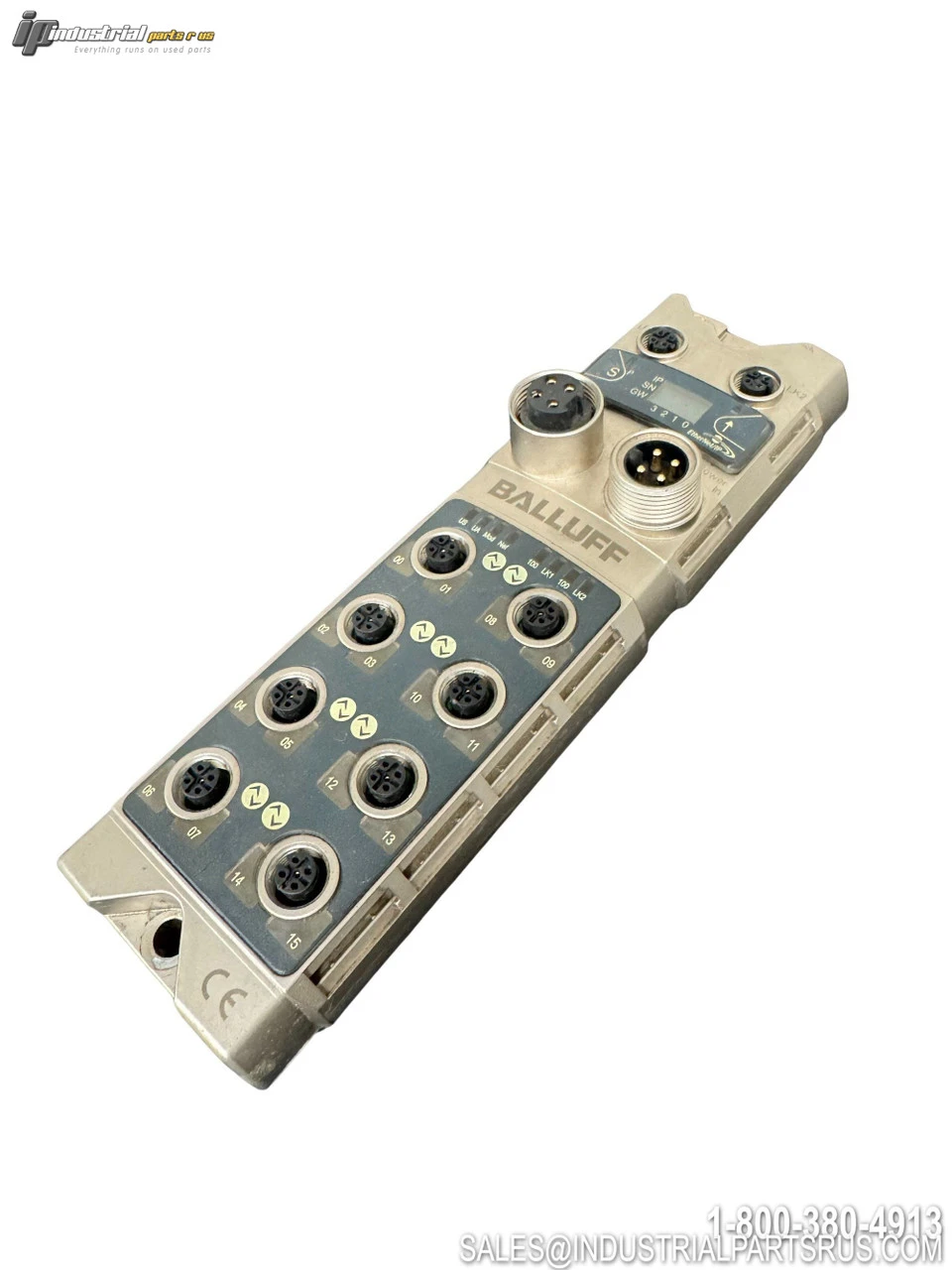

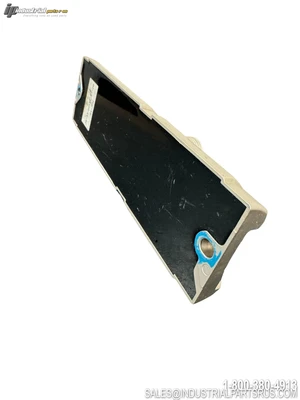

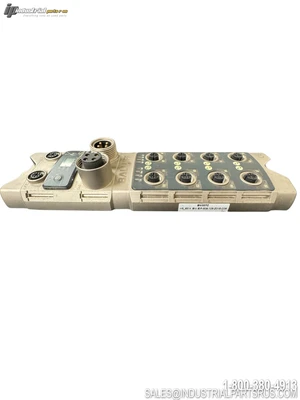

USED BALLUFF BNI007C BNI EIP-508-105-Z015-CD6

The Balluff BNI007C (type code BNI EIP-508-105-Z015-CD6) is an EtherNet/IP IO-Link Master network block from Balluff's Silver Line series of metal-housed network modules for specialized industrial applications. It serves as a decentralized remote I/O and IO-Link block, providing eight IO-Link Type A ports (M12 5-pin A-coded connectors) alongside eight configurable PNP digital inputs and eight PNP digital outputs. The module features dual EtherNet/IP communications ports (M12 D-coded) and a 7/8" power connector for daisy-chaining supply voltage in demanding factory floor environments rated to IP67.
Specification
Value
Brand
Balluff
Model / Part Number
BNI007C BNI EIP-508-105-Z015-CD6
Order Code (MPN)
BNI007C
Type Code
BNI EIP-508-105-Z015-C06
Product Series
Silver Line – Network Modules in Metal Housing
Product Type
IO-Link Master / EtherNet/IP Network Block
Fieldbus / Interface
EtherNet/IP
IO-Link Version
1.1
Auxiliary Interfaces
8x IO-Link
IO-Link Port Class
Type A
Operating Voltage (Ub)
18…30.2 VDC (24 VDC nominal)
Output Current Max. (per port)
2 A
Current Sum US (Sensor Supply)
9.0 A
Current Sum UA (Actuator Supply)
9.0 A
Digital Inputs
8x PNP, Type 3
Digital Outputs
8x PNP
Configurable Inputs/Outputs
Yes
Connection – COM 1 (EtherNet/IP Port 1)
M12x1 Female, 4-pin, D-coded
Connection – COM 2 (EtherNet/IP Port 2)
M12x1 Female, 4-pin, D-coded
Connection – Supply Voltage IN
7/8" Male, 4-pin
Connection – Supply Voltage OUT
7/8" Female, 4-pin
I/O Connection Slots
8x M12x1 Female, 5-pin, A-coded
Transfer Rate
10…100 Mbit/s
IP Rating
IP67
Housing Material
Zinc, Die Casting
Mounting Type
2-hole screw mount
Dimensions (H x W x D)
37.9 x 68 x 224 mm
Ambient Temperature
-5…+70 °C
Address Range
IPv4
Display
None (no onboard display)
Gasket Material
FKM 75
Net Weight
1.785 lbs (approx. 810 g)
Approvals / Conformity
CE, CSA, UL 94, ODVA
ECLASS 9.1
27-24-26-02
We warranty all items for 30 days from date of purchase.
