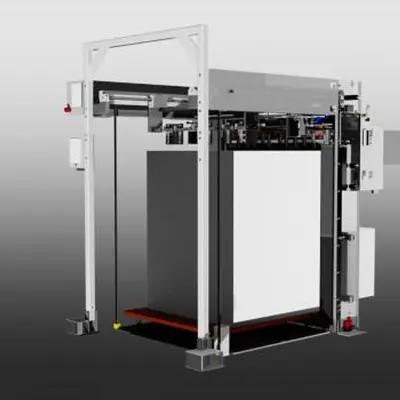

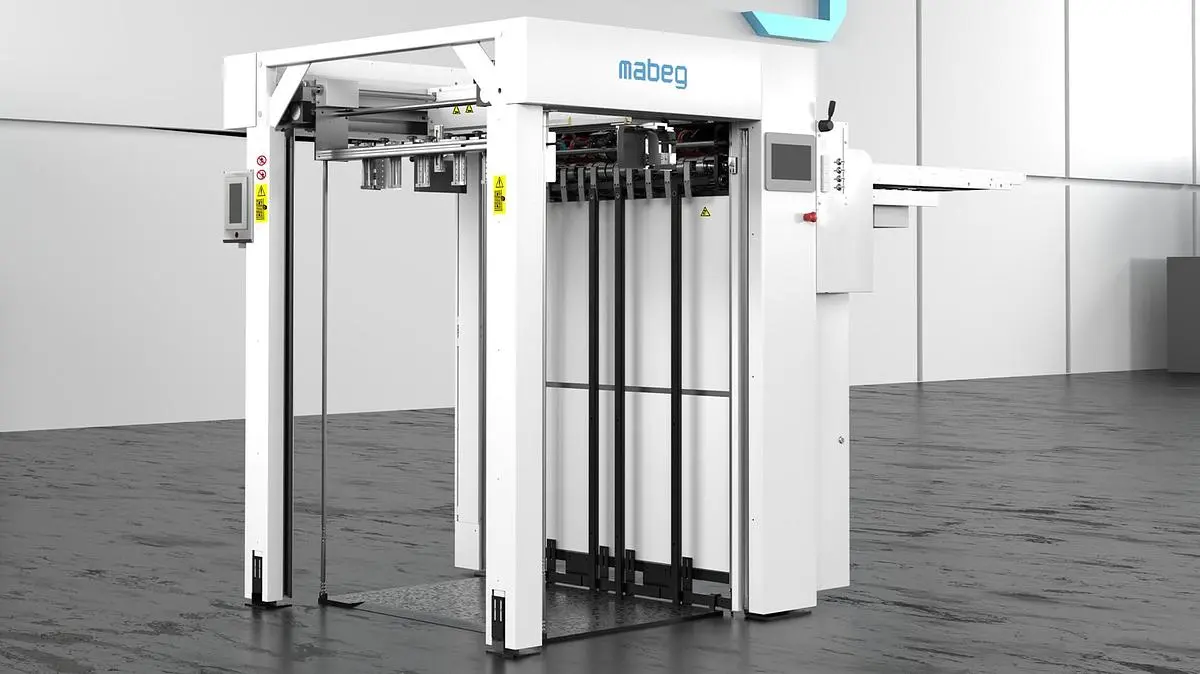

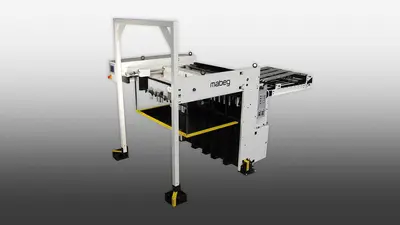

NEW MABEG MST 3

NEW! The MABEG MST 3 Roll Sheeter is a widely used MABEG sheet stacker engineered for robust operation, accurate stack formation and straightforward adjustment. Its EFA (Easy Fast Adjustment) system uses central pneumatic locking for size-related adjustments, allowing sheet stops to be repositioned without lengthy hand-crank operation.

MABEG MST Sheet Stackers help printing operations create accurately aligned sheet stacks that are ready for downstream processing. Designed for dependable post-press handling, the MST family combines automated pallet lowering with accessible finished stacks and adaptable configurations.

Fast format changes — Central pneumatic locking through the EFA system simplifies sheet-size adjustments.
Precise stacking — Individually controllable and adjustable lateral stops help form accurate stacks.
High-speed delivery — Mark-free delivery is supported by a sheet brake, with the brochure describing stacking quality at speeds above 200 m/min.
Substrate handling — An adjustable sheet-profiling device supports delivery of thin substrates at high speeds.
Flexible operation — Touch-screen control, a large grammage range and optional tab insertion and discharge systems.
System integration — Several sheet stackers can be connected for sorting or NONSTOP operation.
Accessible pallets — Stacks can be removed from three sides.

Minimum sheet size (W × L): 300mm × 300 mm (11.81" × 11.81") all versions
Maximum sheet size - Standard: 1,060mm × 760 mm (41.73" × 29.92")
Maximum sheet size - FO85 option: 1,060mm × 830 mm (41.73" × 32.68")
Maximum sheet size - FO106 option: 1,060mm × 1,060 mm (41.73" × 41.73")
Maximum sheet size - FO120 option: 1,060mm × 1,200 mm (41.73" × 47.24")
Maximum sheet size - FO145 option: 1,060mm × 1,450 mm (41.73" × 57.09") (format 6)
Operating speed: Brochure describes stack quality at speeds above 200 m/min
Adjustment system: EFA central pneumatic locking
Controls: Touch-screen operation
Tab inserter: Optional
Discharging system: Optional
Stack removal: Accessible from three sides
