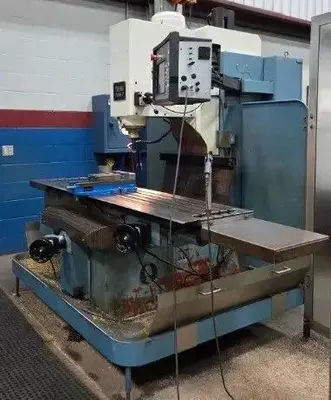

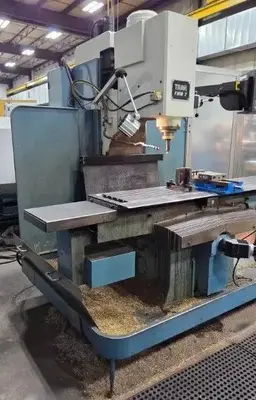

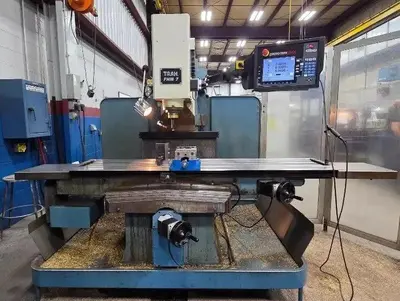

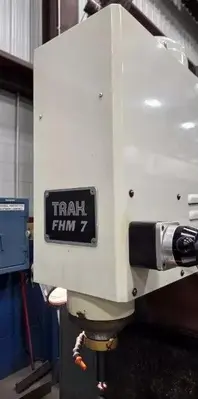

SWI TRAK FHM7 3 Axis CNC Vertical Bed Mill With ProtoTRAK SMX Controller, 7.5HP

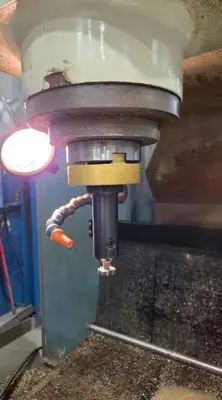

The Southwestern Industries TRAK DPM FHM7 is a CNC vertical bed mill powered by a 7.5 HP spindle motor with an NMTB 40 spindle taper, delivering adjustable spindle speeds from 200 to 5,000 RPM. Designed for heavy-duty precision machining, it features a 76"" x 14"" table capable of supporting workpieces up to 2,200 lbs, with axis travels measuring 60"" along the X-axis, 23"" along the Y-axis, and 20.5"" along the Z-axis. Built on a durable structure featuring dovetail way surfaces for the X-axis and square ways for the Y and Z axes, all way surfaces are hardened, ground, and coated with Turcite for smooth motion. The machine is equipped with the ProtoTRAK SMX CNC system operating on a Windows OS, powered by an industrial Pentium processor with 1 GB RAM. The control panel features a 10.4"" color active-matrix screen, electronic handwheels for manual operation, and multiple USB ports. Software capabilities include 2- or 3-axis CNC operation, 3-axis DRO modes, advanced conversational programming, geometry-based programming, and automated canned cycles for milling, drilling, tapping, and pocketing. Physical machine dimensions measure 110.5"" wide by 93.75"" long and 101"" high, with an approximate net weight of 7,650 lbs. Standard power requirements are 3-phase, 220V, 60 Hz at 37.5 FLA.
