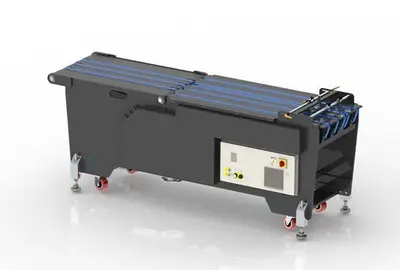

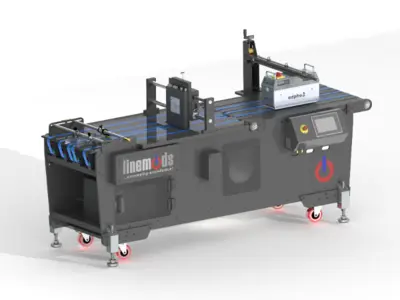

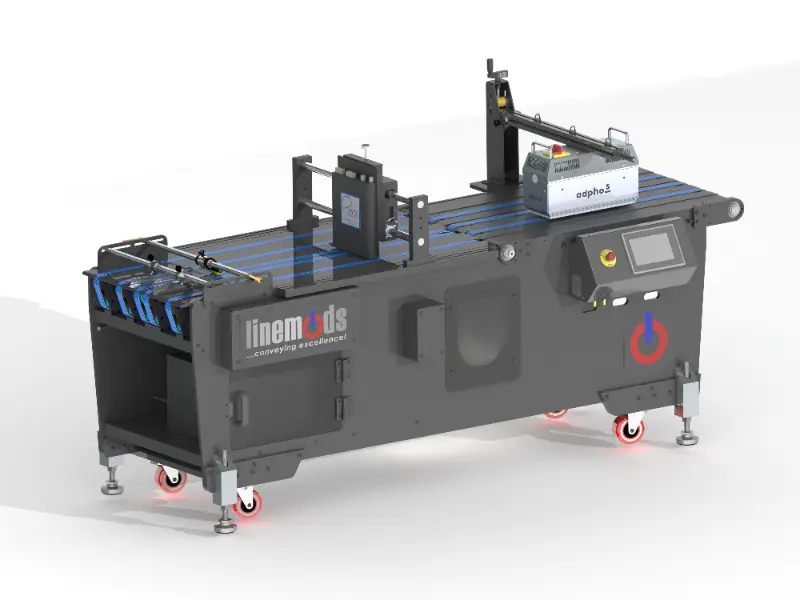

USED 2021 LINEMODS STEALTH 207

Capacity/Speed:

Width: Up to21” (53cm) /
Speed: 550 (167m) or Optional 1100 (335m) LFPM

Linemods Premium Inkjet/Dryer Base - Quality without compromise,
from the innovative vacuum system to the powder coated
aluminum frames.

Perform quick, easy setups –
Linemods “Stealth” systems incorporate
our patented “I Series” transport design with a
separate driven dryer section

PROVIDES “WIDE
BELT” THROUGHPUT AND EDGE CONSISTENCY WITHOUT THE
WIDEBELT COSTS

Attributes:

- .5mm belt height (from deck)

- Ink resistant belts (Inkjet Section)

- Laser straight channeled conveyance

- Advanced technology vacuum system

- Premium Silicone dryer belts

- 1/2” Powder coated aluminum frames

- Adj. height +5” (12.7cm) from casters

- Tool-less adjustments

- Cantilevered discharge

- Adjustment scales

- Built-in encoder location

- I/O: Start, stop, feed and speed

- Dryer interlock

All Linemods “Stealth”
units are performance

engineered to deliver an optimum supply of

vacuum without stalling conveyor or stressing

pump – We use regenerative vane vacuum

system with pressure sensors to precisely control

the vacuum pressure – Linemods offers the most

innovative, high performance vacuum conveyor

systems available.

Feature attributes:

- Solid construction

- Simple electrical/drive components

- Vacuum consistency

- Flush mount electrical enclosure

“I” Series Vacuum
Transport Design:

I Series transports are built in two standard lengths 2’
& 4’ - We dedicate the transport belts
common/uncommon

sheet/book sizes from envelopes to very wide format sheets/books
– Transport design is self-tensioning and worry

free – We have many prearranged systems, also able to quickly
and efficiently build to fit your exact needs.

- Max deck speed: 550 (167m) or 1100 (335m) LFPM

- Product thickness range: Parchment paper to ½”
(13mm)

- Product width range: 1” (2.5cm) – 21”
(53cm)

- Inkjet section max belt temp: 135 F/ 57 C

- Dryer section max belt temp: 400 F/ 205 C

- Gross weight: 765 lbs

- Electrical Requirement: 200-230v 1 Ph / 25amps
