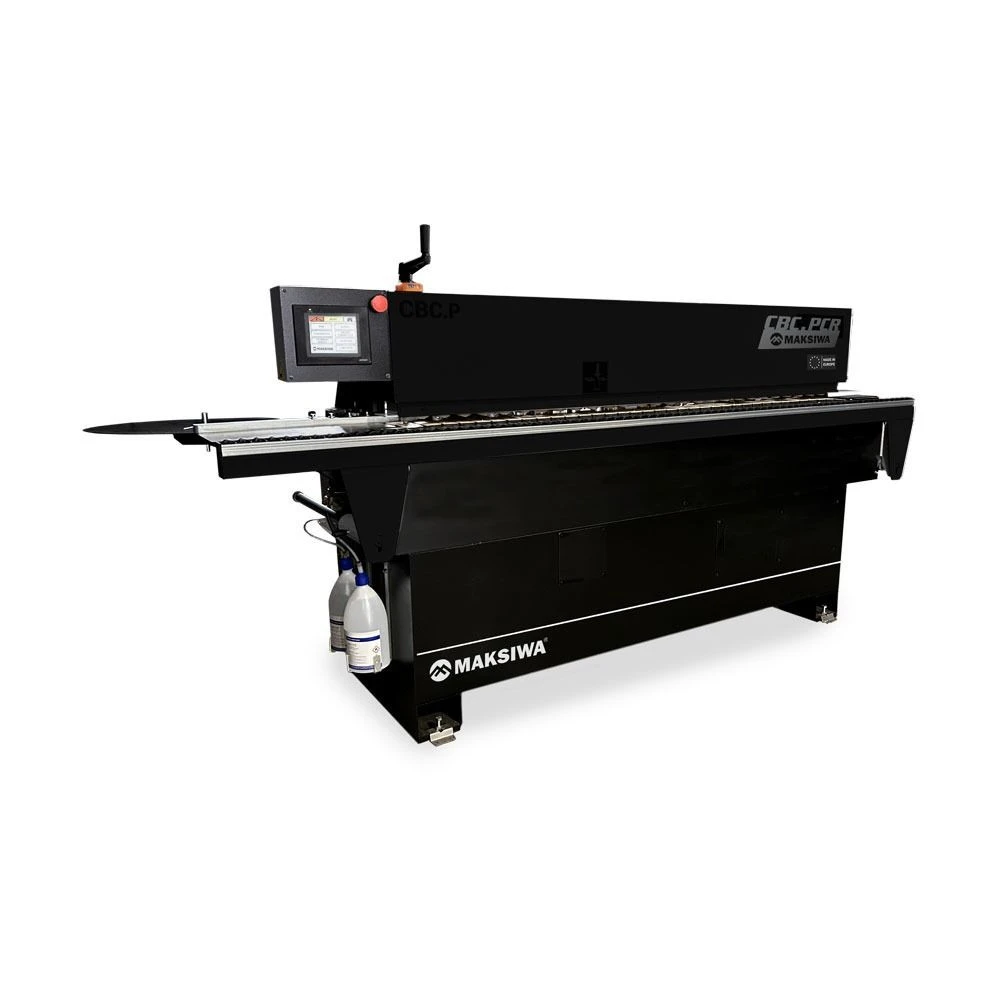

Maksiwa CBC.PCR Automatic Edgebander

The Maksiwa CBC.PCR Automatic Edgebander delivers industrial-grade results with corner rounding for a flawless panel finish.

Equipped with high-frequency motors, pre-milling, buffing, and a cleaning agent spray system, it ensures a superior edge every time.

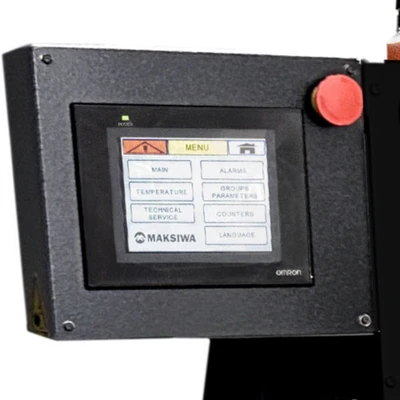

The XMELT glue pot system supports both EVA and PUR adhesives with efficient drainage, while the user-friendly PLC touchscreen allows full control of speed, temperature, and operations.

The automatic dust collector activates as needed, maintaining a clean and efficient workspace without manual operation.



Manufacturer
Maksiwa

Condition
New

Features

Edge Tape: 0.4-3 mm

Panel Thickness: 8-50mm

Corner Rounding Unit

Glue Scraper Unit

Buffing Unit

End Trimming HF Motor

Pre-milling Unit 2 HF Motors with Diamond Cutters

XMELT Glue Pot System (compatible w/ EVA and PUR Adhesives + easy drainage System)

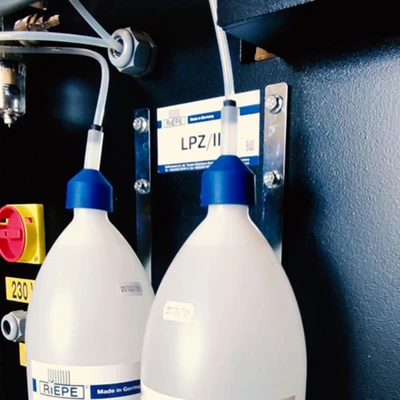

C.A.S.S - Cleaning Agent Spraying System

Glue Pot Capacity 1.5kg | 3.3lbs Teflon Coated

Automatic feeding Speed 18 ft/min

Conveyor Chain Feed System for optimum results.

HF motors controlled by independent electronic converters

Compact Design

Melamine/PVC/ABS/PP

Type
Edgebander

Automatic Feeding Speed
18 ft/min

Panel Thickness Min/Max
21/64" - 1-31/32"

Maximum Pre-Milling Height
1"

Edgebanding Thickness
0.0157" - 0.118"

Glue Pot Capacity
3.3 lbs

Maximum Edgebanding Height
2"

Minimum Panel Width
3"

Minimum Panel Length
7-7/8"

Extendable Panel Support Rail Length
103"

Extension Table Maximum Width
54"

Size of Dust Collector Ports
6"

Minimum Dust Collection Requirements
1236 CFM

Air Pressure Requirement
14 SCFM @ 87PSI

Edgebanding Coil Support Diameter
59"

Recommend Glue Temperature Range
356°F - 410°F

Maximum Machine Dimensions (L x W x H)
119" x 40-16/16" x 48.7/16"

Weight
1411 lbs

Glue Type
Granulated Hot-Melt EVA / PUR

Electrical Information
1 Phase 220V 30 Amps 60Hz

Electrical Requirement
1 Phase 220V 40 Amps 60 Hz

Conveyer Motor
60 Hz 1390 RPM .66 kw

Top/Bottom Trimmer HFM
200 Hz 12,000 RPM .27kw

End/Corner Rounding Trimmer Motor
200 Hz 12,000 RPM .27kw`

Front/Rear Pre-Milling HFM
150 Hz 9000 RPM .75/.25Kw

Top Buffing Motor
60 Hz 1680 RPM .11kw

Bottom Buffing Motor
60 Hz 1680 RPM .11kw

Sound Rating
80 dB

Eletrical specs
1 Phase 220V 60Hz 30A

Feeder Speed
18ft/min

Glue Temperature
180° to 210° C

Glue Pot Type
Granulated Hot-Melt EVA / PUR

Workarea
119" x 40"

End Trim
Pneumatic
