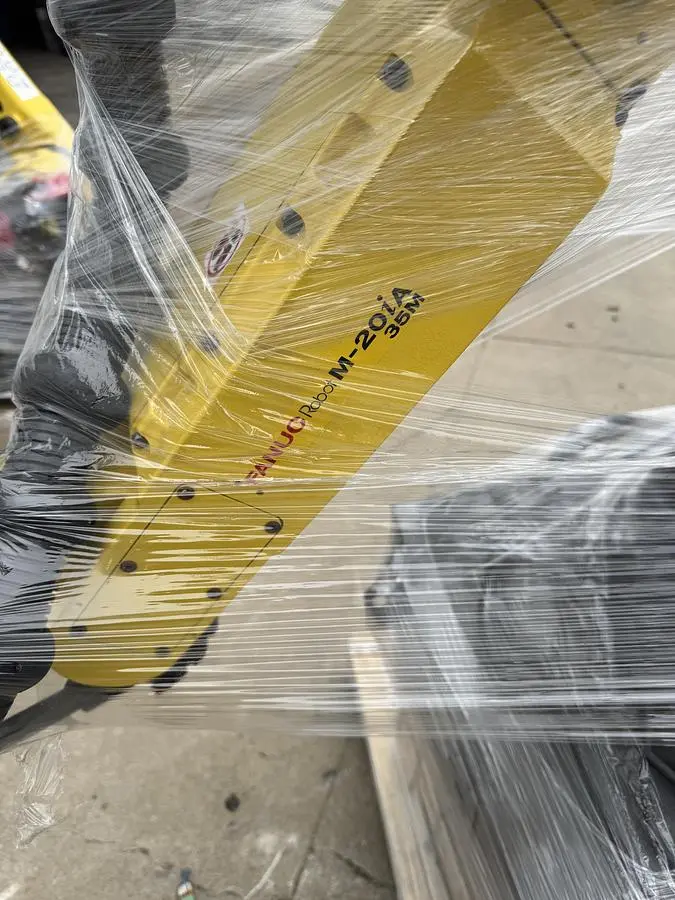

USED 2019 FANUC M-20IA/35M

For Your Shop A 2019 Used Fanuc M-20iA/35M 6 Axis Robot Is Equipped With A High Inertia Wrist And Fanuc R-30iB Plus Controller, Complete With Teach Pendant And Main Cable Set.

1-Used Fanuc M-20iA/35M 6 Axis Robot With R-30iB Plus Control.
Serial Number F243875
Date Of Manufacture 10/2019
Mechanical Unit Type A05B-1225-B705
Control Unit Type
Stk#105525
=====================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

Robot Specifications:
Axes: 6
Payload: 35kg
H-Reach: 1813mm
Repeatability: ±0.08mm
Robot Mass: 252kg
Structure: Articulated
Mounting: Floor

Robot Motion Speed:
J1 180 °/s (3.14 rad/s)
J2 180 °/s (3.14 rad/s)
J3 200 °/s (3.49 rad/s)
J4 350 °/s (6.11 rad/s)
J5 350 °/s (6.11 rad/s)
J6 400 °/s (6.98 rad/s)

Robot Motion Range:
J1 ±370°
J2 ±260°
J3 ±461°
J4 ±400°
J5 ±280°
J6 ±900°

Applications:
Material Handling Robots
Assembly Robots
Machine Loading Robots
Machine Tending Robots

Equipped With:
Camera Connections
ASI Connections
ES Connections
EE Connections
Air Connection
THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

RAB INDUSTRIES, INC.
