USED 2015 WAUKESHA - CHERRY BURRELL 2045

(2) Available - The Carlsen and Associates-supplied Waukesha Cherry-Burrell 2045 is a sanitary 200 Series centrifugal pump designed for hygienic and industrial liquid transfer in food, beverage, dairy, and pharmaceutical applications.
Key Specifications

Manufacturer / Model: Waukesha Cherry-Burrell (SPX Flow / ITT Flow Technologies) Model 2045
Materials of Construction: 316L stainless steel for all wetted parts, satin exterior with a sanitary finish in the product zone.
Impeller: Machined from solid bar 316L stainless steel with four compound curved vanes and an integral motor shaft sleeve.
Maximum Impeller Size: 4.5 inches
Inlet & Outlet Connections: Typically 1.5-inch or 2-inch sanitary Tri-Clamp
Speed / Dual Speed: 1750 RPM (at 60 Hz)
Maximum Nominal Capacity: Up to 97 GPM at 1750 RPM / up to 190 GPM at 3500 RPM (approx. 43 m³/h max capacity)
Maximum Head: 22 feet at 1750 RPM / 88 feet (up to 100 m / 340 ft differential pressure depending on config) at 3500 RPM
Maximum Fluid Temperature: Up to 400°F–450°F (204°C–232°C)
Viscosity Limit: Up to 200 cP (selection capability up to 500 cP)

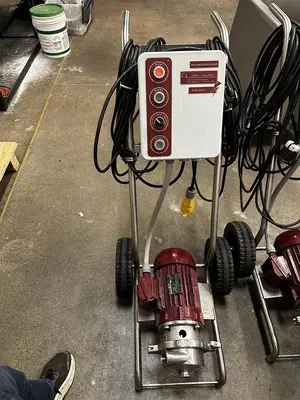

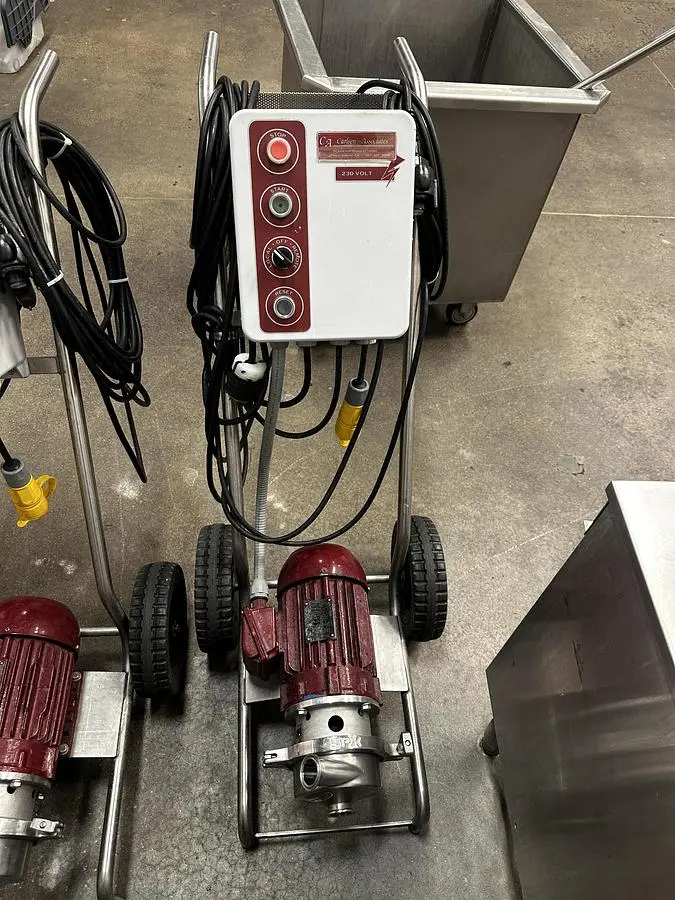

These pumps were both used in a craft beverage manufacturing facility and are represented in excellent shape. These are high quality pumps designed to meet the needs of small and medium size craft beverage producers. @ available - Price per unit.
