USED 2014 KITAMURA MYCENTER 3XD
Overview

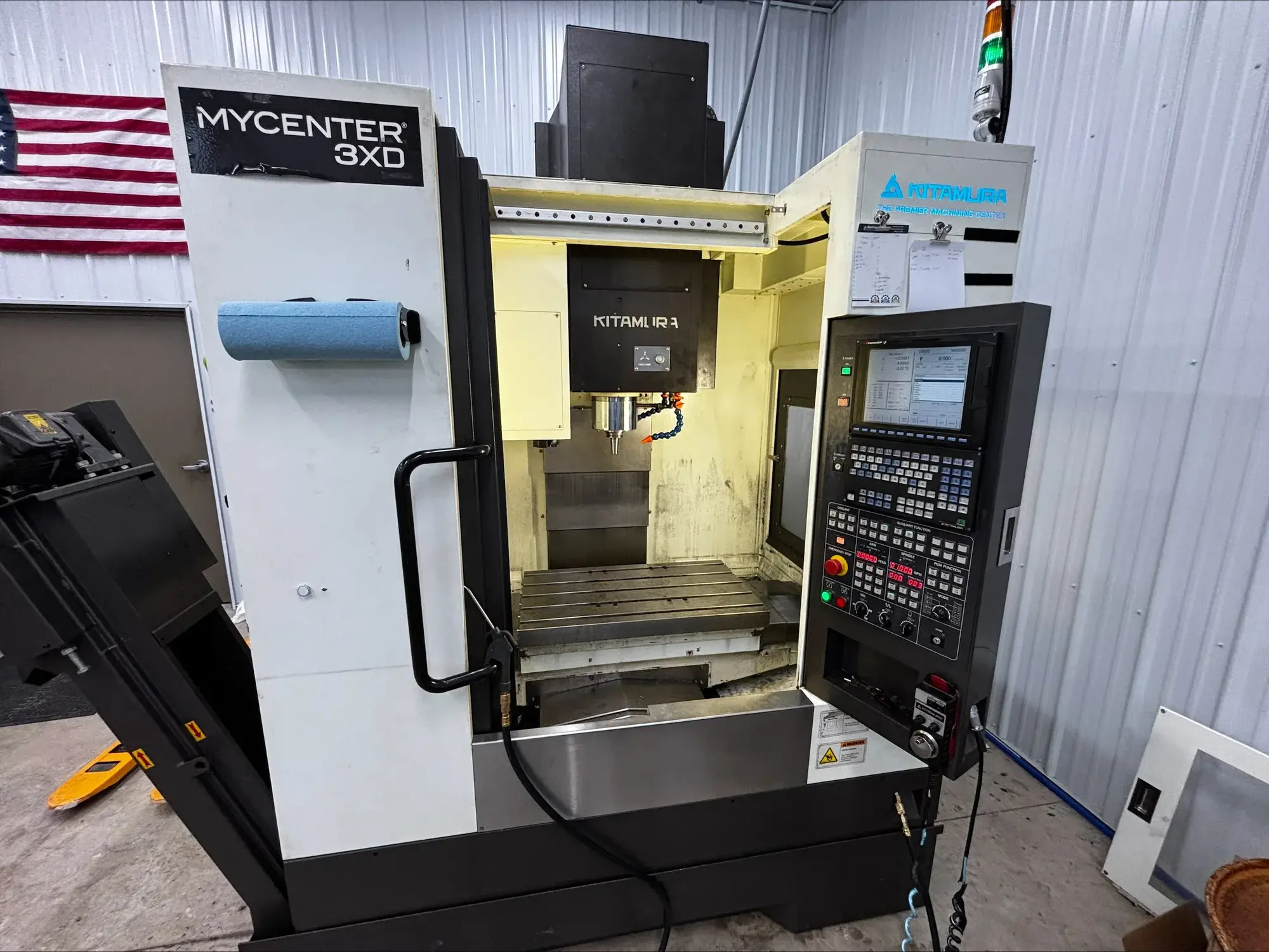

This 2014 Kitamura Mycenter 3XD vertical machining center has a newly installed 12,000 RPM, 35 HP belt-drive spindle in a CAT 40 taper, with 29.9" x 20.1" x 20.1" of X, Y, and Z travel. It runs an Arumatik-Jr CNC control with a 24-position tool magazine, spindle chiller, through spindle coolant prep, and dual chip augers feeding a chip conveyor.
Specs
Pull Stud: DIN
Spindle Drive: Belt
Max Table Load: 1,760 lbs
T-Slots: 0.71" x 5
Distance from Table Top to Spindle Nose: 3.9" to 24.0"
Rapid Feed X, Y: 1,890 IPM
Rapid Feed Z: 1,654 IPM
Cutting Feed Rate X, Y: 787 IPM
Tool Selection: Memory Random
Max Tool Diameter: 3.0" (5.9" with Adjacent Pots Empty)
Max Tool Length: 9.4"
Max Tool Weight: 15.4 lbs
Tool Change Time: 2.3 Seconds
Approximate Floor Space: 96.5" x 88.3"
Equipped With
Through Spindle Coolant Ready
Spindle Chiller Unit
Main Spindle Coolant
Side Wash
Air Blast
Dual Chip Augers with Chip Conveyor (Either Side Discharge)
Remote Manual Pulse Generator
3-Light Tower
THK Cross Roller Linear Guide Ways
Original Spindle Included
Recent Service
New Spindle Installed, 2026
