Used

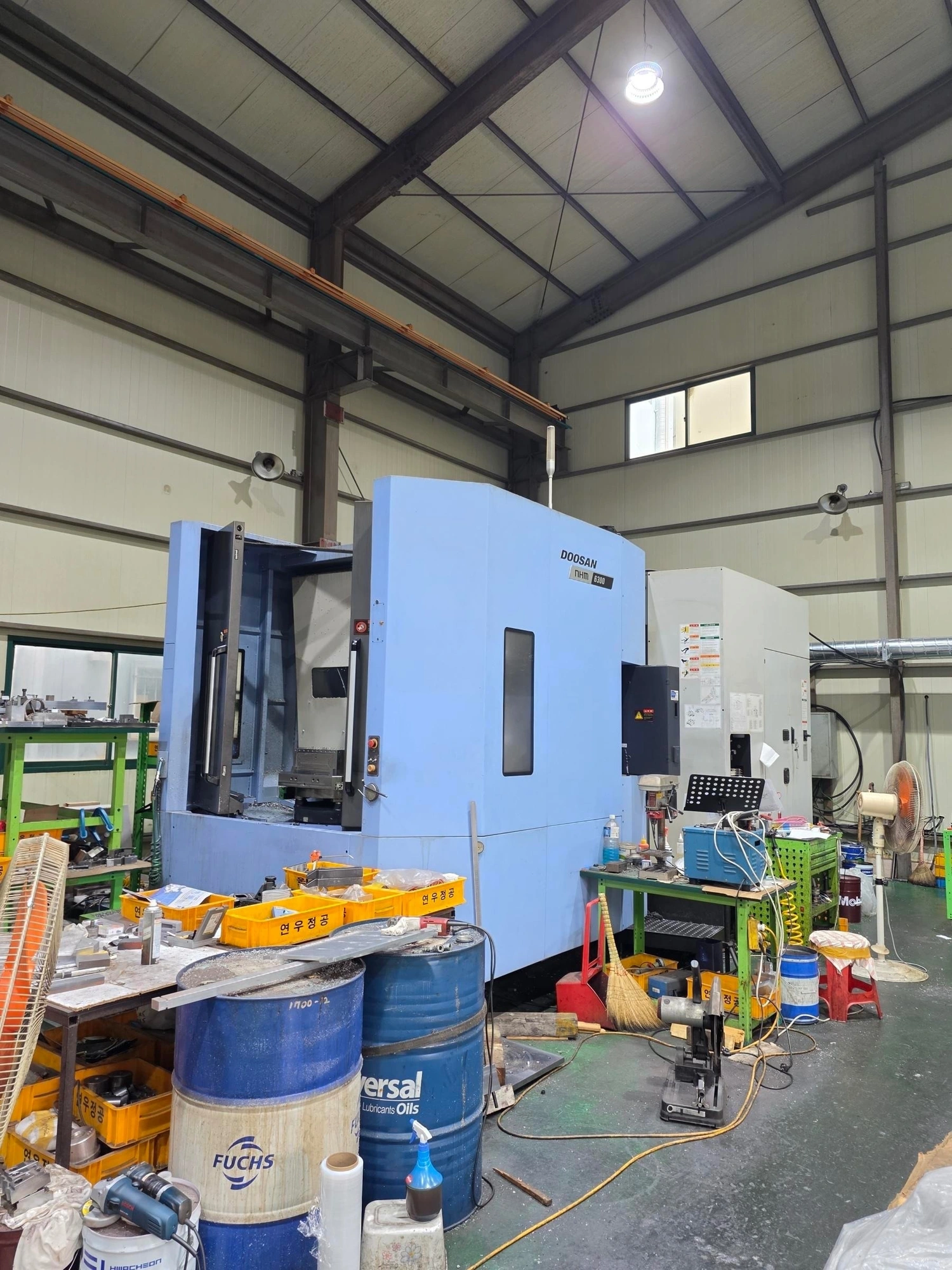

USED 2018 DOOSAN NHM 6300

Illinois, United States
156Listings|140Followers
Overview
Horizontal Machining Centers

Explore precision with the 2018 Doosan NHM 6300 CNC Horizontal Machining Center. Equipped with dual pallets, high spindle speed, and advanced FANUC control, it's ideal for heavy-duty performance. Features high-pressure coolant, chip conveyor, and more.

Specs
Pallet Size - L
24.8"
629.92 mm
Pallet Size - W
24.8"
629.92 mm
Number of Pallets
2
2
Pallet Weight Capacity
3,307 lb
1,500 kg
Pallet Surface to Spindle Center
3.9" ~ 43.3"
3.9" ~ 43.3"
Pallet Center To Spindle Gage Line
3.0" ~ 38.4"
3.0" ~ 38.4"
Workpiece Dimensions
41.3" x 53.1" (H)
41.3" x 53.1" (H)
X - AxisTravel
41.3"
1,049 mm
Y - Axis Travel
35.4"
899.16 mm
Z - Axis Travel
39.4"
1,000.8 mm
B - Axis Travel
1 Degree
1 Degree
Rapid Traverse Rate - X
1,968 in/min.
50 m/min.
Rapid Traverse Rate - Y
1968 ipm
Rapid Traverse Rate - Z
1968 ipm
Spindle Speed
6,000 RPM
6,000 RPM
Spindle Taper
BT-50
BT-50
Number of Ranges
2
2
Main Motor
50 hp
37.3 kW
Automatic Tool Changer
90
90
Tool Diameter
4.9" / 12.6"
4.9" / 12.6"
Tool Length
27.6"
701.04 mm
Tool Weight
55.1 lb
25 kg
Machine Weight
39,700 lb
18,007.6 kg
Control
CNC
CNC
Weight
39700.00
39700.00
Equipped With

FANUC 31IB CNC CONTROL
THRU SPINDLE COOLANT
CHIP CONVEYOR
SPINDLE CHILLER
FLOOD & FLUSHING COOLANT
PCMCIA CARD SLOT
USB PORT
PORTABLE HAND HELD MPG
RIGID TAPPING
