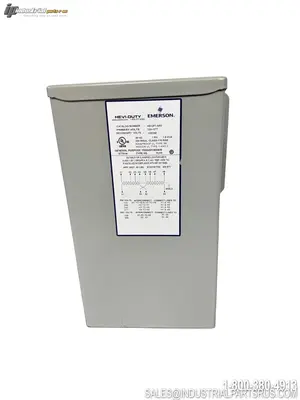

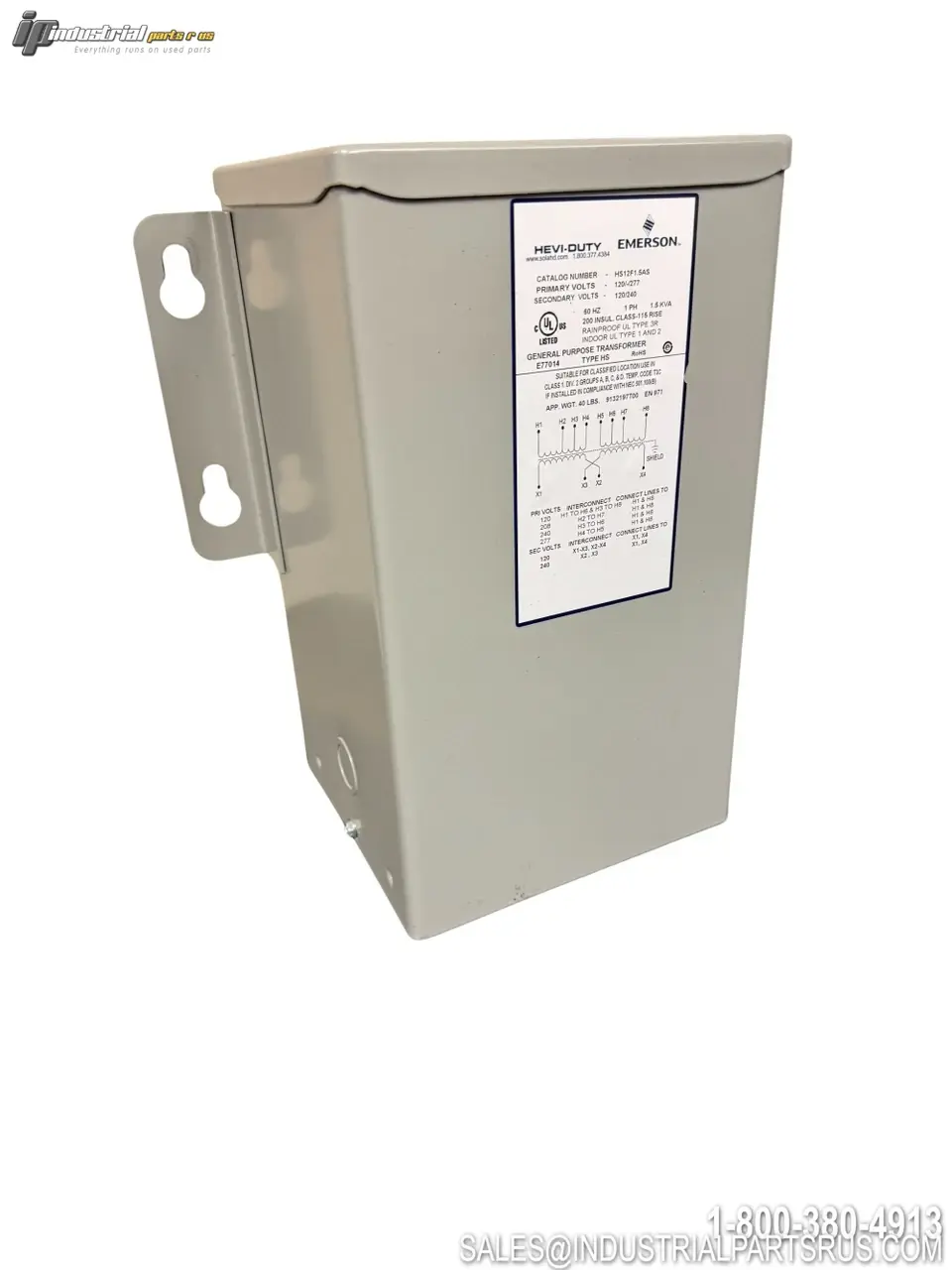

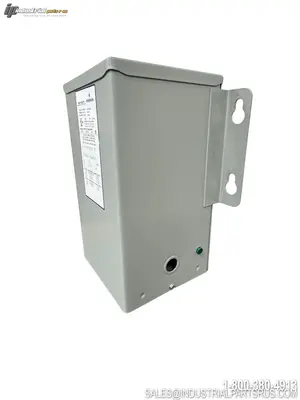

USED EMERSON HS12F.15AS

The Emerson SolaHD HS12F.15AS is a 150 VA (0.15 kVA) single-phase, non-ventilated automation transformer belonging to the HS12F series. It features a 120/208/240/277 VAC primary and a 120/240 VAC secondary at 60 Hz, housed in a UL Listed NEMA Type 3R enclosure suitable for both indoor and outdoor service. This transformer is rated for use in hazardous locations (Class I, Division 2, Group A, B, C and D) as well as harsh industrial environments when installed per NEC 501.100(B).
Specification
Value
Brand
Emerson / SolaHD (Sola Hevi-Duty)
Model / Part Number
HS12F.15AS
Series
HS12F
Product Family
Automation Transformers – Non-Ventilated
Power Rating (kVA)
0.15 kVA (150 VA)
Phase
1 (Single Phase)
Primary Voltage
120 / 208 / 240 / 277 VAC
Secondary Voltage
120 / 240 VAC
Secondary Current (approx.)
1.25 A (at 120V) / 0.625 A (at 240V)
Frequency
60 Hz
Construction Type
Non-Ventilated, Non-Encapsulated (50–250 VA range)
Insulation Class
UL Class 130°C
Temperature Rise
80°C (under full load)
Enclosure Rating
NEMA 3R / UL Type 3R
Mounting Type
Wall Mount
Connection Type
Copper Lead Wire
Winding Material
Aluminum
Installation
Indoor / Outdoor
Hazardous Location Rating
Class I, Division 2, Group A, B, C, D (per NEC 501.100(B))
Certifications
UL Listed, CSA Certified
Application
Automation, Industrial Control, OEM Equipment
We warranty all items for 30 days from date of purchase.
