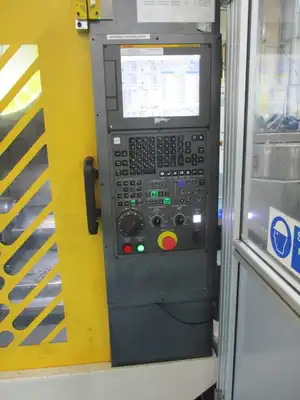

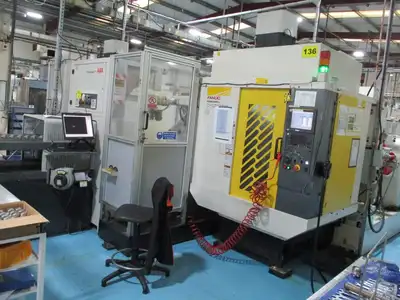

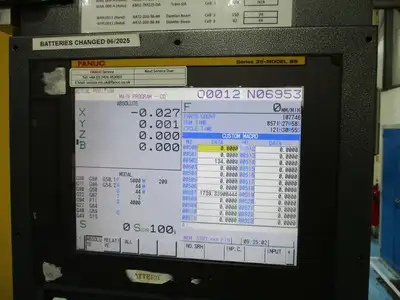

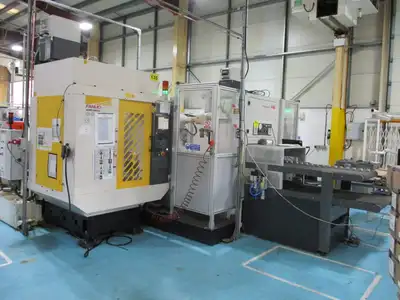

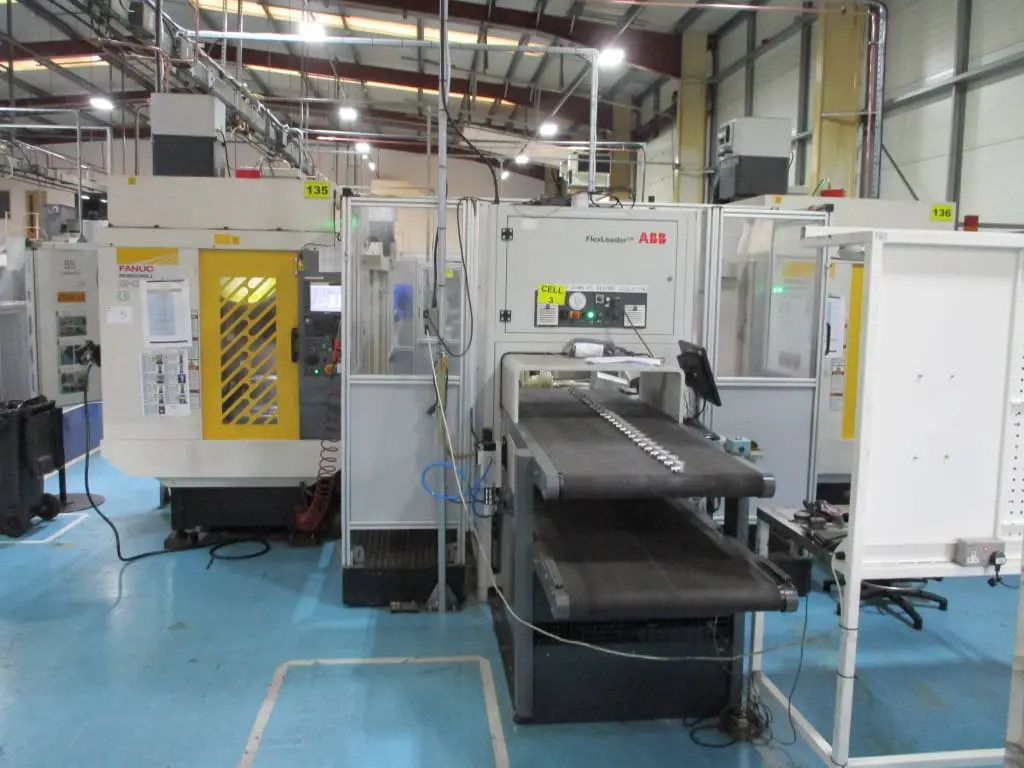

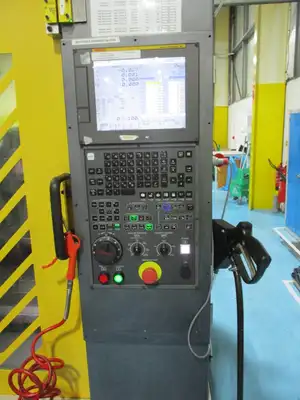

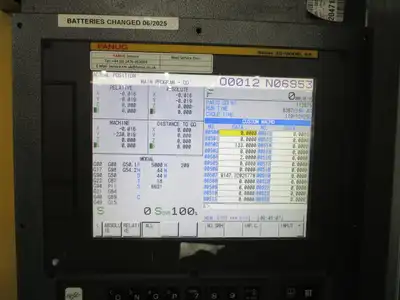

2018 Fanuc Robodrill D21MIB5 Single Main Robot Machining Cell with (2) Fanuc Series 31I-Model B5 CNC Controls

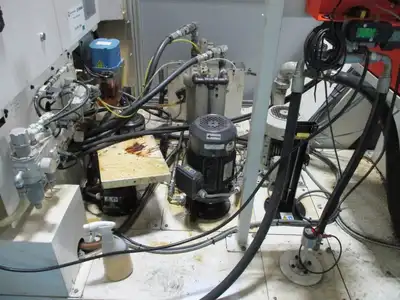

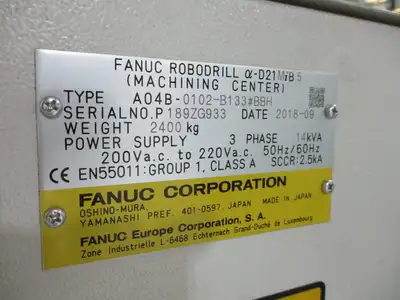

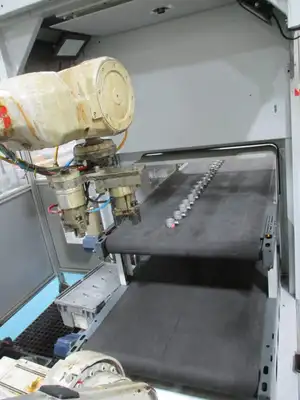

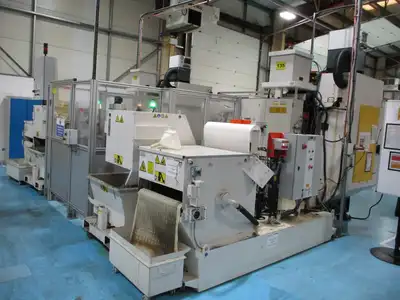

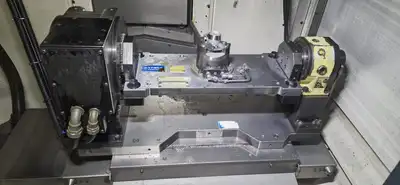

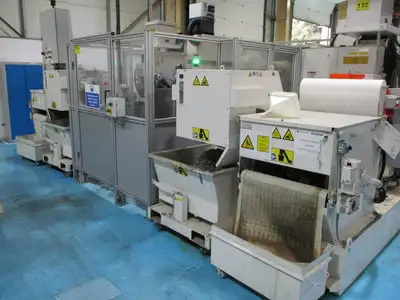

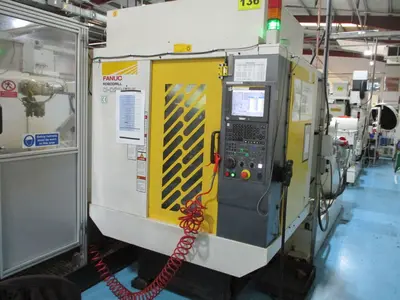

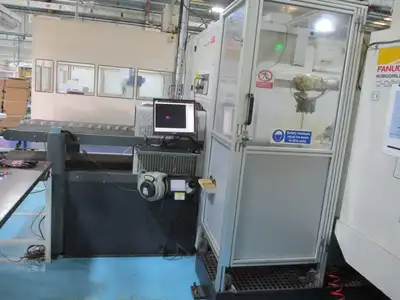

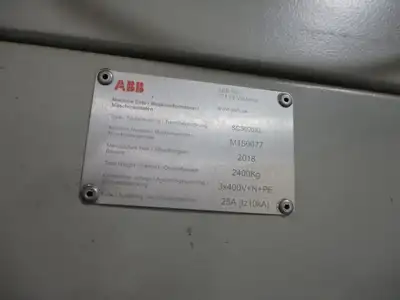

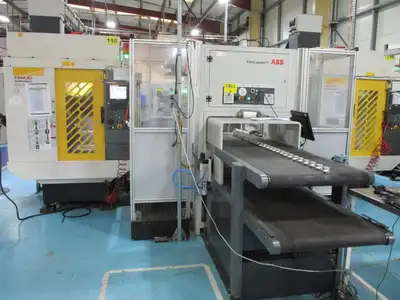

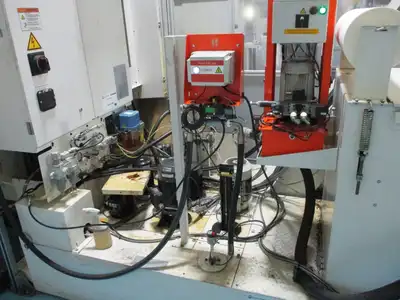

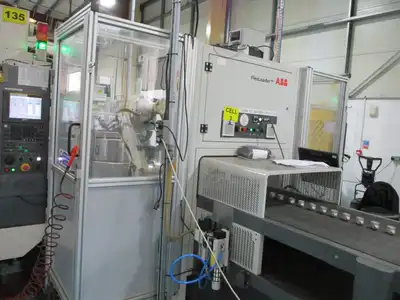

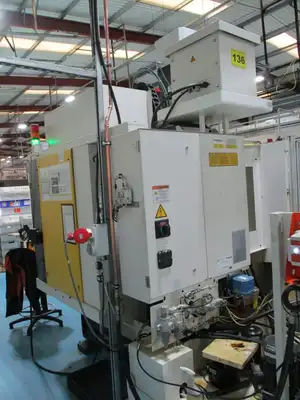

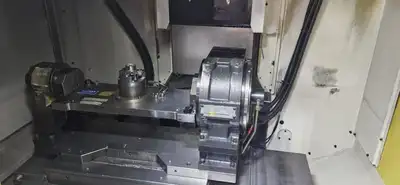

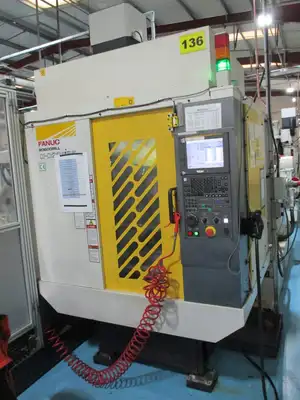

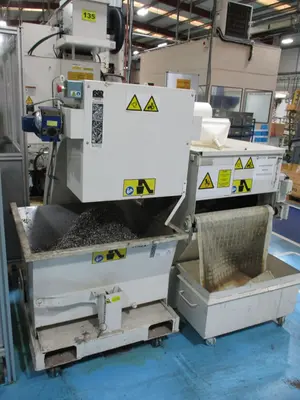

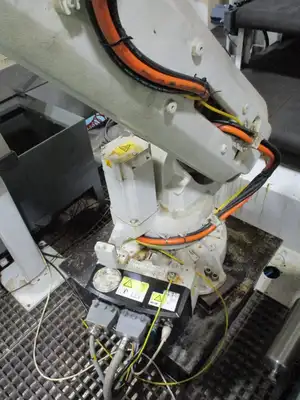

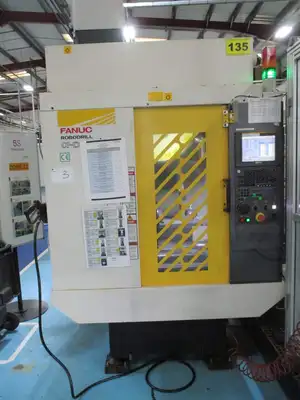

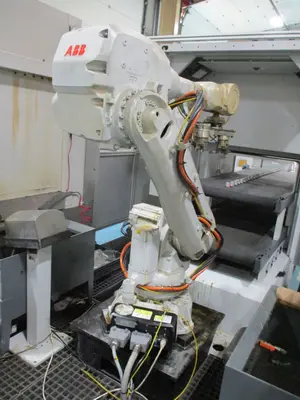

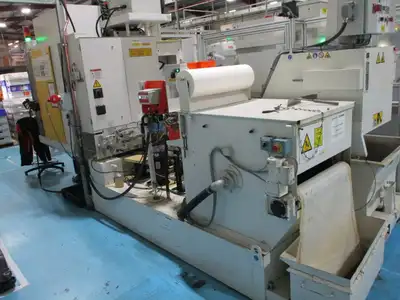

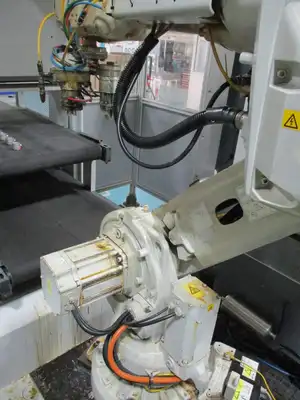

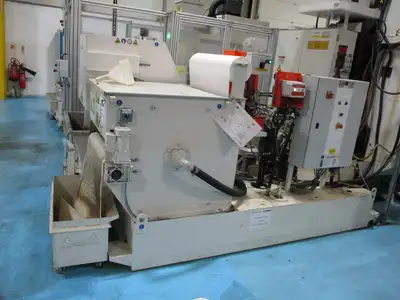

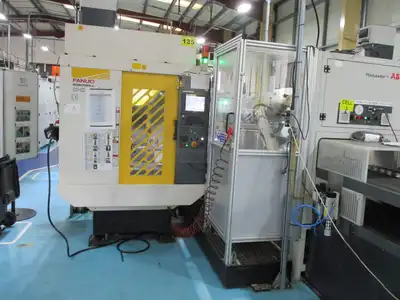

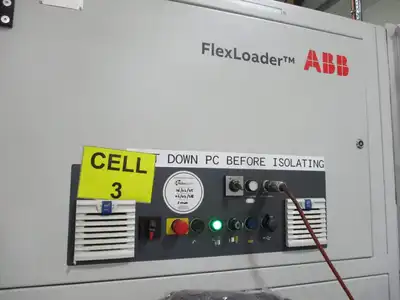

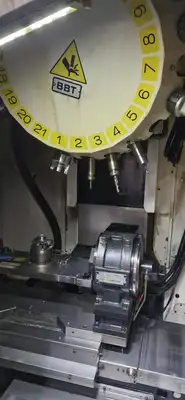

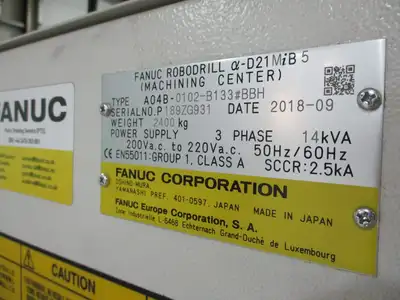

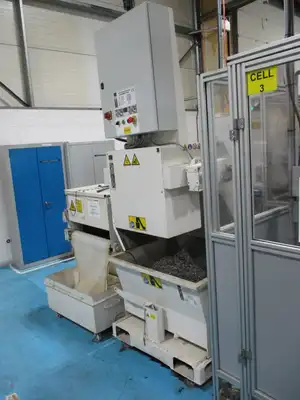

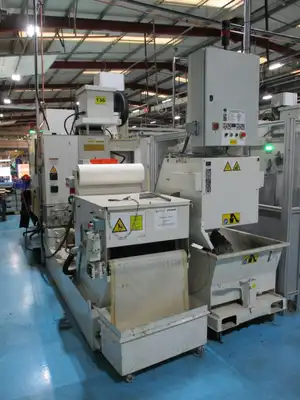

Cell Comprising: Twin Fanuc Robodrill Type A04B-0102-B133 Vertical Milling & Drilling Machining Centres (S/Nos. P189ZG931 & P189ZG933). Table Size Approx 650mm x 400mm. Travel: 'X' Approx 500mm, 'Y' Approx 400mm, 'Z' Approx 330mm. Max Table Load 300kg. Number of Tool Pockets 21. Max Tool Length 250mm, Max Tool Weight 3kg. BT30 Spindle Taper. Max Spindle Speeds 10,000 RPM. Nikken TAT-170N (2018) Pneumatically Operated Rotary Support Table with 4th Axis Fanuc DDRiB-104-B181STD. ABB Flexloader SC3000XL Extended Conveyor Loading System (S/No. M180077) with Fanuc ABB 6 Axis Robot IRB 4600. Feed In/Feed Out Belt Conveyors. ABB Flexloader Vision. FSE E7326 Filtration, 950 Litre Capacity Coolant & Swarf Management System. Andreas Maier AMF 6906/61919 Hydraulic Equipment.

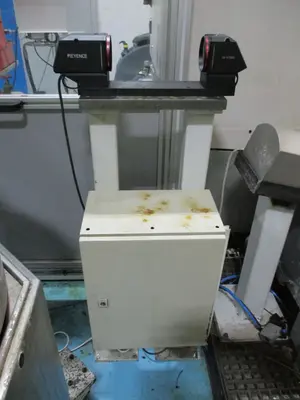

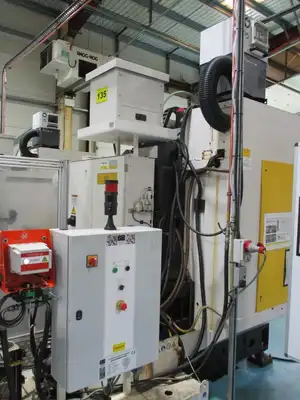

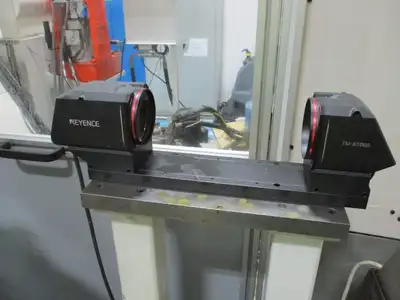

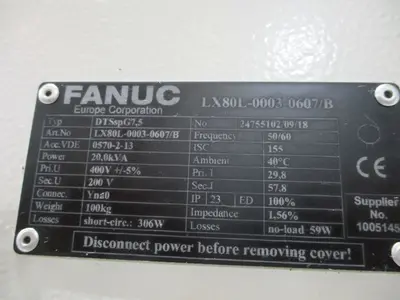

This Cell Includes: Robot Pendant ABB DSQC 679. Signal Tower Lights. Transformer. Keyence TM-X5065 Telecentric Measuring System with Control. Filtermist 400 Oil Mist Collector. Weight of each Machining Centre Approx 2,400kg. Floor Space Required for Full Cell Approx 8,000mm x 6,500mm. 3 Phase Power Supply, 415 Volt. Fixtures Not Included. Swarf Bins Not Included. Viewing Recommended. Please Note: Spares for this machine available in Lot 383.
